xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
265
Click the Apply button to accept the changes made.
Click the Find button to locate a specific entry based on the information entered.
HOL Blocking Prevention
HOL (Head of Line) Blocking happens when one of the destination ports of a broadcast or multicast packet are
busy. The switch will hold this packet in the buffer while the other destination port will not transmit the packet even
they are not busy.
The HOL Blocking Prevention will ignore the busy port and forward the packet directly to have lower latency and
better performance.
This window is used to enable or disable HOL Blocking Prevention.
To view the following window, click QoS > HOL Blocking Prevention, as shown below:

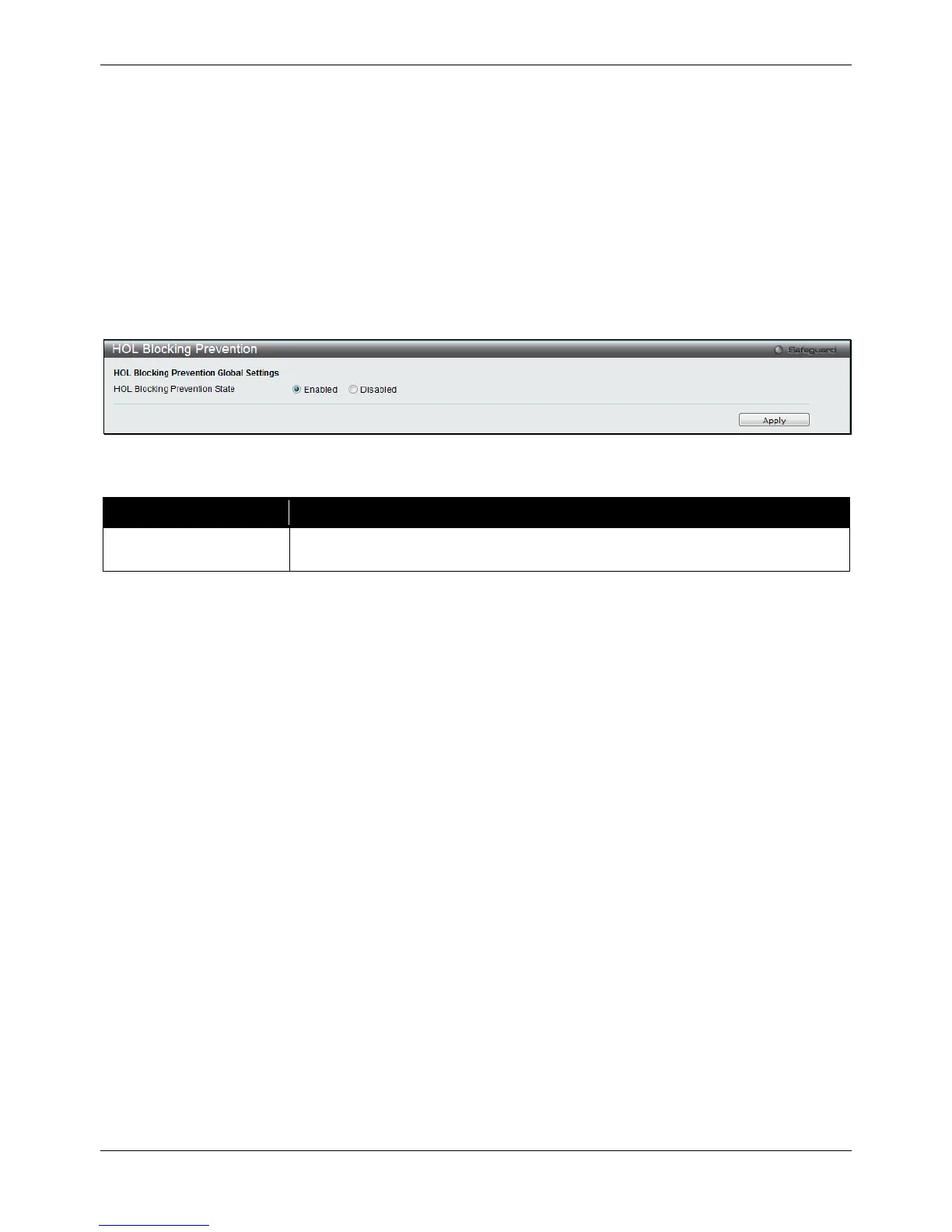

Figure 6-10 HOL blocking Prevention window
The fields that can be configured are described below:
Parameter Description
HOL Blocking
Prevention State
Click the radio buttons to enable of disable the HOL blocking prevention global
settings.
Click the Apply button to accept the changes made.
Scheduling Settings
QoS Scheduling
This window allows the user to configure the way the Switch will map an incoming packet per port based on its
802.1p user priority, to one of the eight available hardware priority queues available on the Switch.
To view this window, click QoS > Scheduling Settings > QoS Scheduling as shown below:
