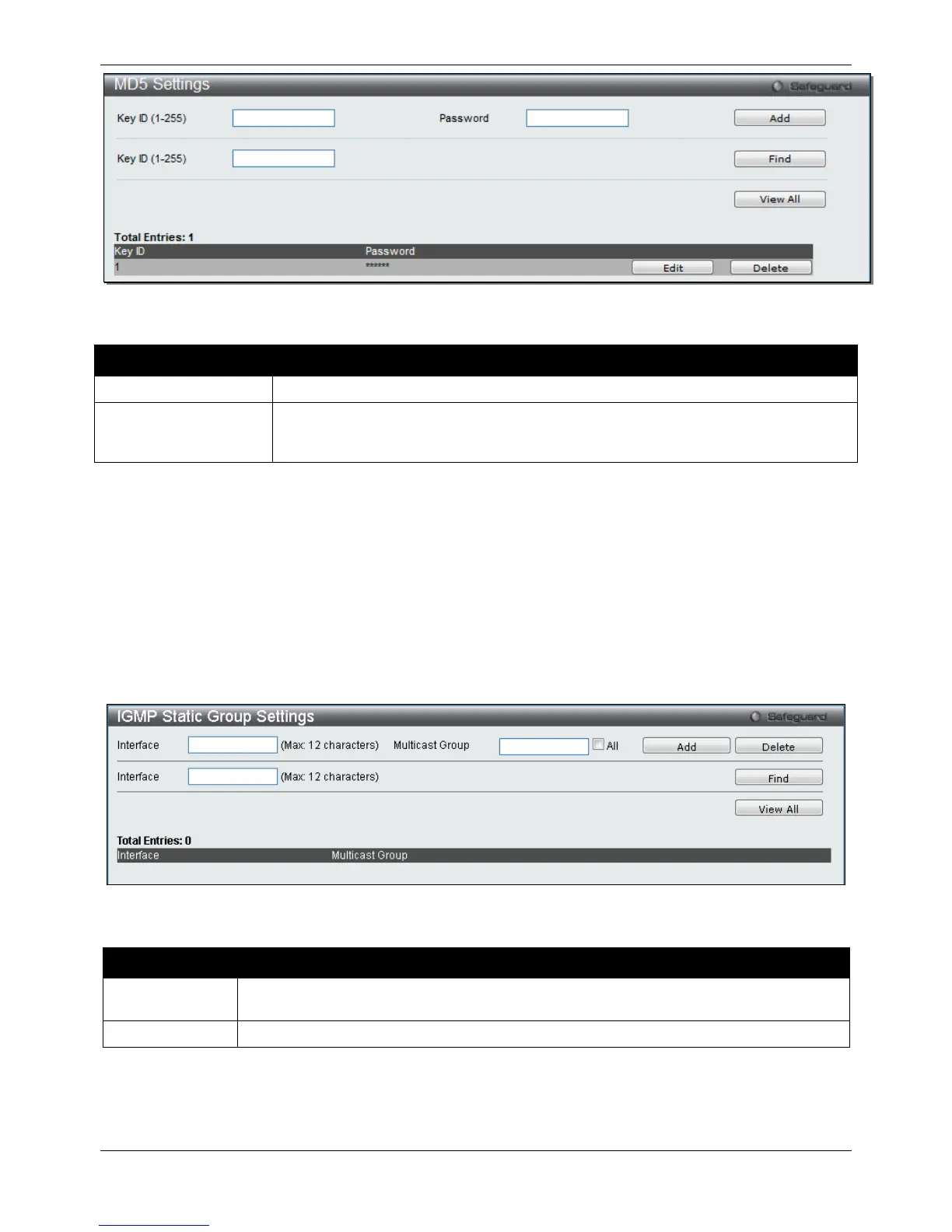

Figure 5-149 MD5 Settings window
The fields that can be configured are described below:
Parameter Description
Key ID (1-255)
Specifies a number from 1 to 255 used to identify the MD5 key.
Password
Specifies an alphanumeric string of between 1 and 16 case-sensitive characters used
to generate the Message Digest which is in turn, used to authenticate OSPF packets
within the OSPF routing domain.
Click the Add button to add a new Key ID with its corresponding password.
Click the Find button to search for the Key ID entered.
Click the View All button to view all the entries.
Click the Edit button to re-configure a specific entry listed.
Click the Delete button to remove a specific entry listed.
IGMP Static Group Settings (RI Mode Only)
This window is used to create an IGMP static group on the switch.
To view the following window, click L3 Features > IGMP Static Group Settings, as shown below:
Figure 5-1509 IGMP Static Group Settings window
The fields that can be configured are described below:
Parameter Description
Interface
Enter the IP interface on which the IGMP static group resides. The IP interface must be the
primary IP interface.
Multicast Group
Enter the multicast IP address. Tick the All option to use all groups.
Click the Add button to add a new entry based on the information entered.
Click the Delete button to remove a specific entry listed.
Click the Find button to find the information entered.
Click the View All button to view all the entries.
