Parameter Description
Group Address
Enter the multicast group address for this Static RP. This address must be a class D
Enter the mask for the multicast group address stated above.
Enter the IP address of the Rendezvous Point.
Click the Add button to add a new entry based on the information entered.
Click the Delete button to remove the specific entry.
PIM Register Checksum Settings
This window is used to configure the IP address of the RP, for which the data part will be included when calculating
the checksum for registering packets to the RP. The data part is included when calculating the checksum for a PIM
register message to the RP on the first hop router.
To view the following window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM for IPv4 > PIM
Register Checksum Settings, as shown below:

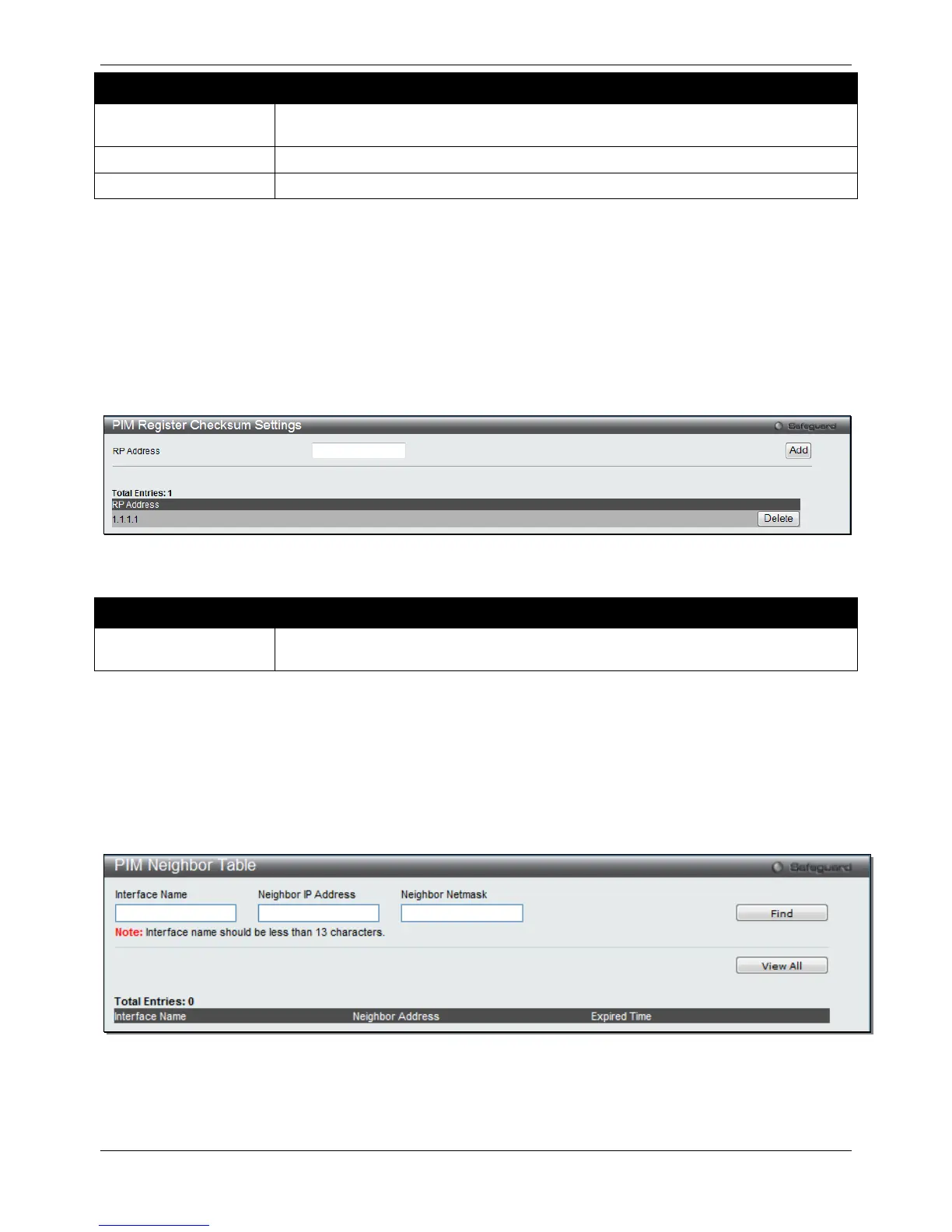

Figure 5-113 PIM Register Checksum Settings window
The fields that can be configured are described below:
Parameter Description
RP Address
Enter the IP address of the RP for which the data part will be included when calculating
checksum for registering packets to the RP.
Click the Add button to add a new entry based on the information entered.
Click the Delete button to remove the specific entry.
PIM Neighbor Table
This window is used to display the current PIM neighbor router table.
To view the following window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM for IPv4 > PIM
Neighbor Table, as shown below:
Figure 5-114 PIM Neighbor Table window
The fields that can be configured are described below:
