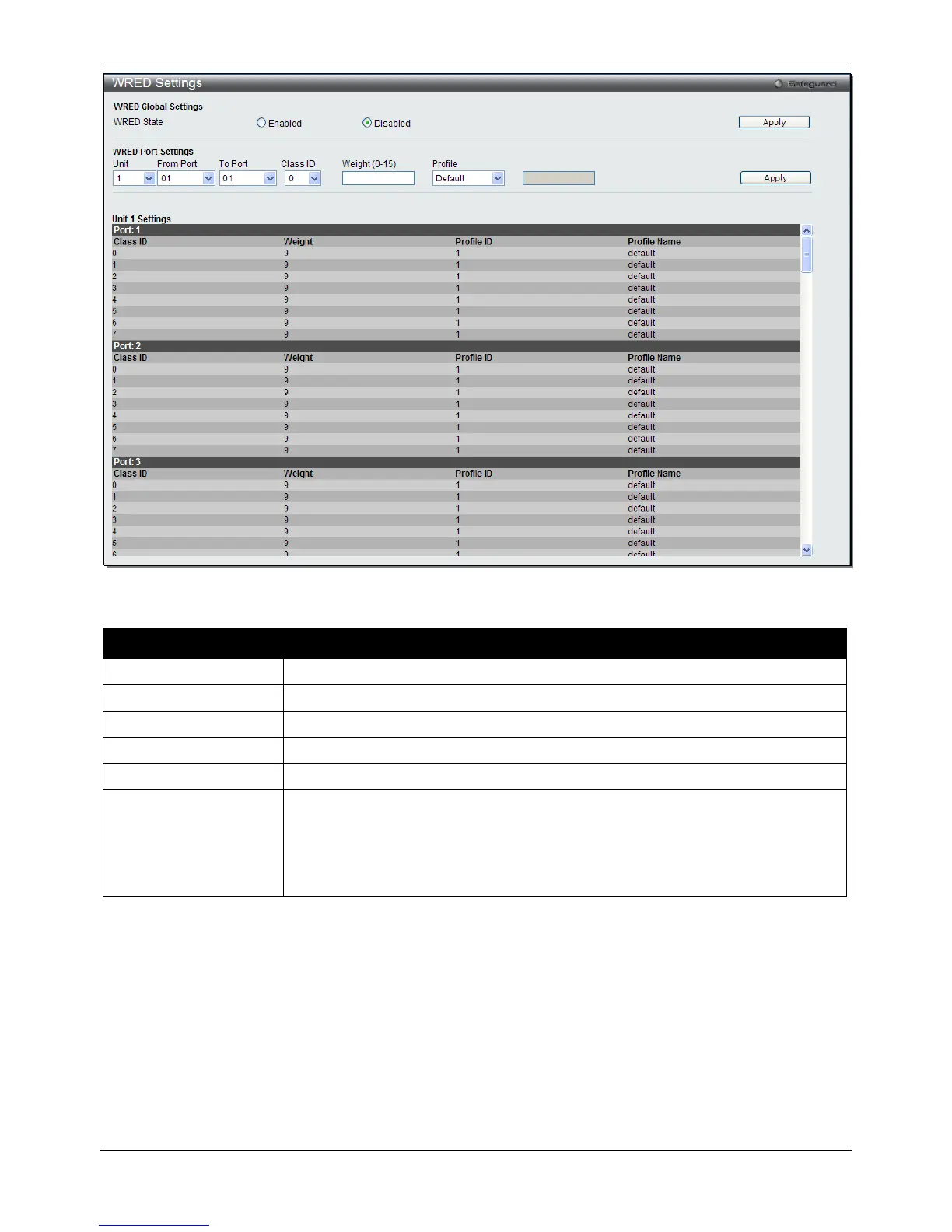

Figure 6-13 WRED Settings window
The fields that can be configured are described below:
Parameter Description
WRED State
Click to enable or disable the WRED global state.
Unit
Select the unit you want to configure. (EI and SI Mode Only)
From Port / To Port
Use the drop-down menu to select the port range to use for this configuration.
Class ID
Use the drop-down menu to select the hardware priority.
Weight (0-15)
Specify the weight in the average queue size calculation.
Profile
Use the drop-down menu to select the profile to be used for WERD ports and
queue.
Default – Specify the default profile to be used.
Profile ID – Select and enter a profile ID to be used.
Profile Name – Select and enter a profile name to be used.
Click the Apply button to accept the changes made for each individual section.
WRED Profile Settings
This window is used to configure the WRED profile settings.
To view the following window, click QoS > WRED > WRED Profile Settings, as shown below:
