xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
269

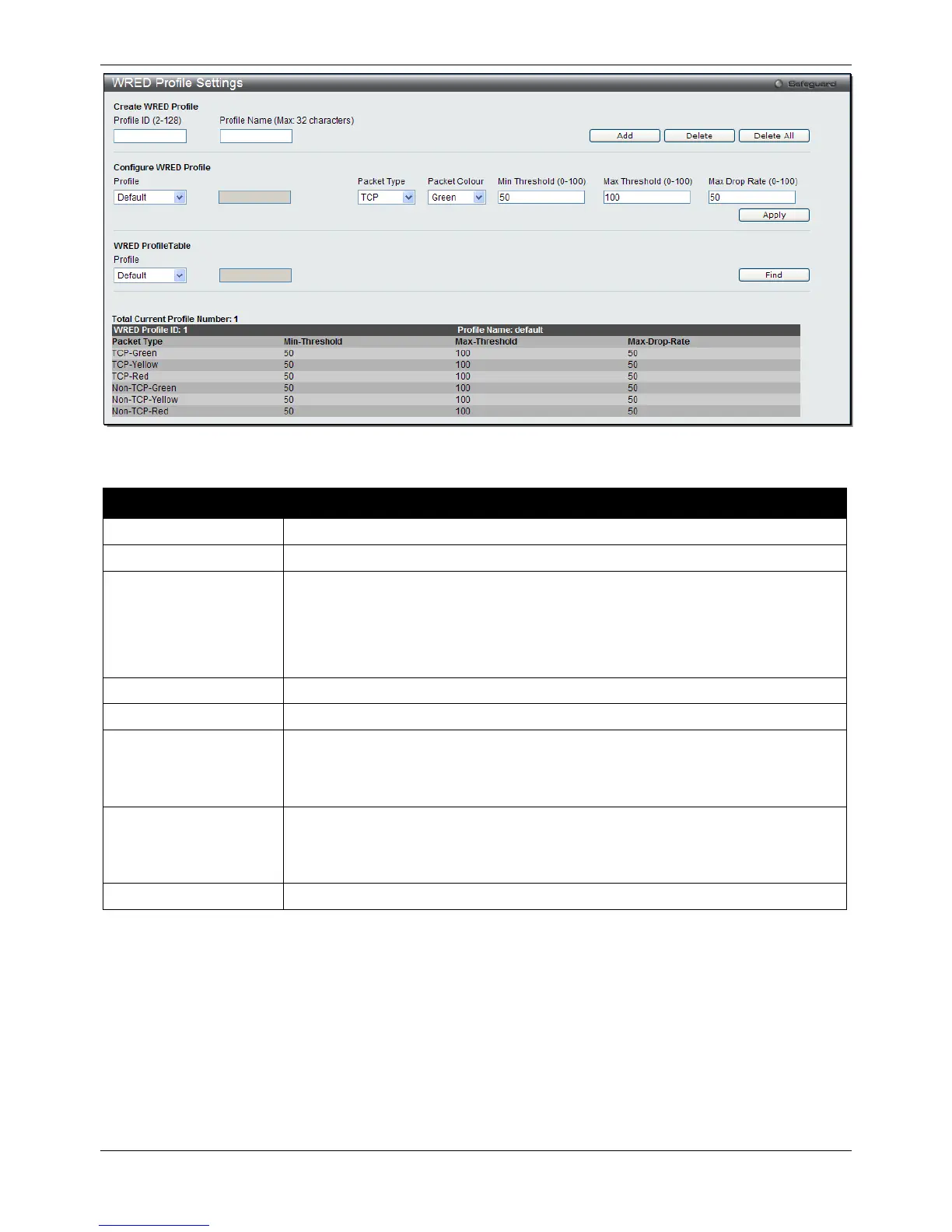

Figure 6-14 WRED Profile Settings window
The fields that can be configured are described below:
Parameter Description
Profile ID (2-128)
Enter a WRED profile ID to be added or deleted.
Profile Name
Enter a WRED profile name to be added or deleted.
Profile
Use the drop-down menu to select the profile to be used for WRED ports and
queue.
Default – Specify the default profile to be used.
Profile ID – Select and enter a profile ID to be used.
Profile Name – Select and enter a profile name to be used.
Packet Type
Select the packet type, TCP or Non-TCP to be dropped.
Packet Colour
Select the packet color, Green, yellow or red, to be dropped.
Min Threshold (0-100)
Enter the minimum threshold value used. If the queue size is higher than this value,
then the color yellow will be assigned to it. If the queue size is lower than this value,
then the color green will be assigned to it and then it will be guaranteed not to be
dropped. Yellow packet behavior depends on the profile setting for this color.
Max Threshold (0-100)
Enter the maximum threshold value used. If the queue size is lower than this value,
then the color yellow will be assigned to it. If the queue size is higher than this value,
then the color red will be assigned to it and then it will be dropped. Yellow packet
behavior depends on the profile setting for this color.
Max Drop Rate (0-100)
Enter the maximum drop rate value.
Click the Add button to add a new entry based on the information entered.
Click the Delete button to remove the entry based on the information entered.
Click the Delete All button to remove all the entries listed.
Click the Apply button to accept the changes made.
Click the Find button to locate a specific entry based on the information entered.
