D-Link xStack DGS-3120 Series Reference Guide

xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
353

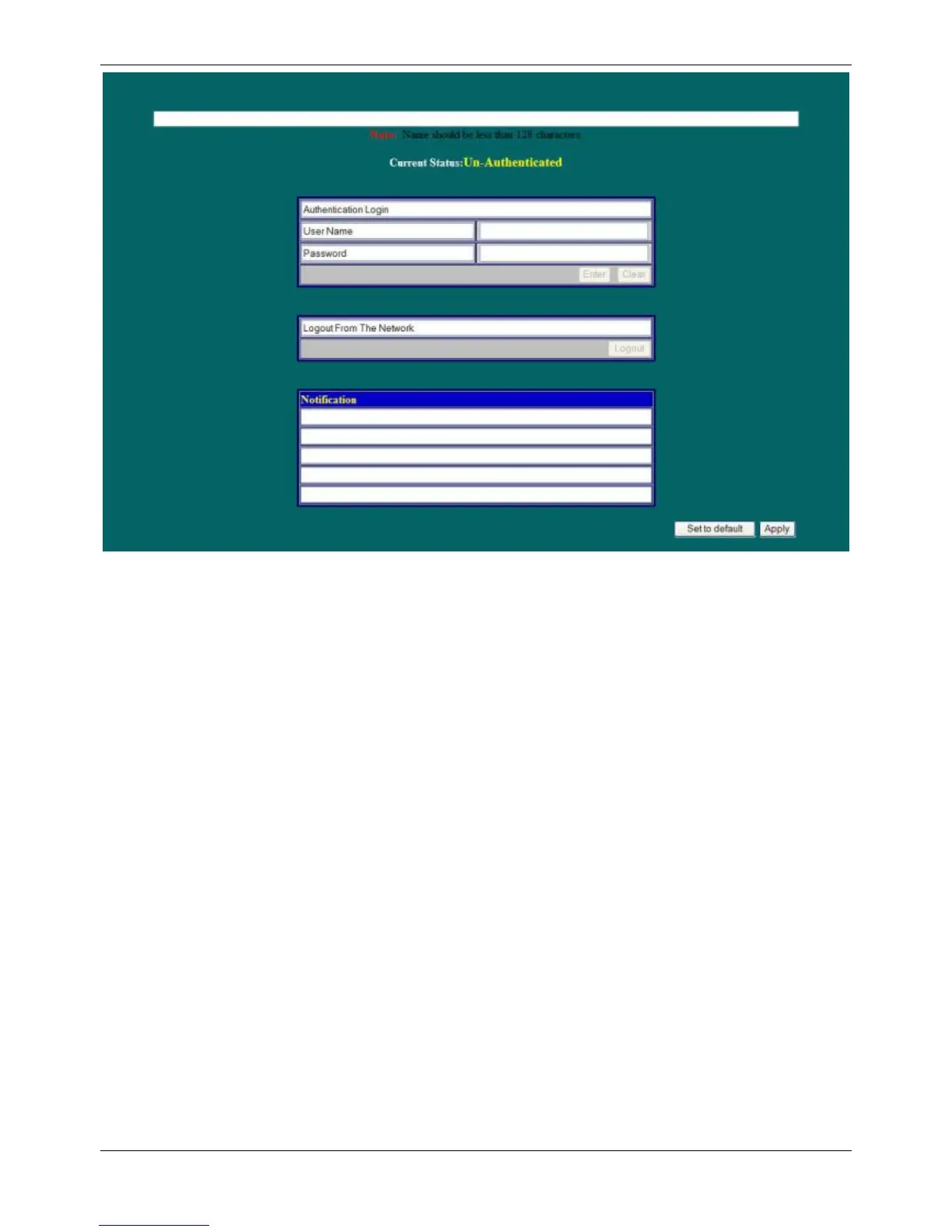

Figure 8-44 WAC Customize Page window
Complete the WAC authentication information in this window to set the WAC page settings. Click the Apply button
to implement the changes made. Click the Set to default button to go back to the default settings of all elements.
Japanese Web-based Access Control (JWAC)
JWAC Global Settings
This window is used to enable and configure Japanese Web-based Access Control on the Switch. JWAC and Web
Authentication are mutually exclusive functions. That is, they cannot be enabled at the same time. To use the
JWAC feature, computer users need to pass through two stages of authentication. The first stage is to do the
authentication with the quarantine server and the second stage is the authentication with the Switch. For the
second stage, the authentication is similar to Web Authentication, except that there is no port VLAN membership
change by JWAC after a host passes authentication. JWAC and WAC can share the same RADIUS server.
To view this window, click Security > Japanese Web-based Access Control (JWAC) > JWAC Global Settings
as shown below:

D-Link xStack DGS-3120 Series Specifications

General

MAC Address Table	16K entries
Ports	10/100/1000BASE-T ports
VLANs	4094
Jumbo Frame	Up to 9KB
Power Supply	Internal power supply (depending on model)
Power over Ethernet (PoE)	No
Layer 3 Features	RIP
Quality of Service (QoS)	8 queues per port, DiffServ
Security Features	ACLs
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
SFP Ports	Combo 10/100/1000BASE-T/SFP ports and/or dedicated SFP/SFP+ ports (depending on model)
