D-Link xStack DGS-3120 Series Reference Guide

xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
270
Chapter 7 ACL
ACL Configuration Wizard
Access Profile List
CPU Access Profile List
ACL Finder
ACL Flow Meter
Egress Access Profile List (RI and EI Mode Only)
Egress ACL Flow Meter (RI and EI Mode Only)
ACL Configuration Wizard
The ACL Configuration Wizard will aid the user in the creation of access profiles and ACL Rules automatically by
simply inputting the address or service type and the action needed. It saves administrators a lot of time.
To view this window, click ACL > ACL Configuration Wizard as shown below:

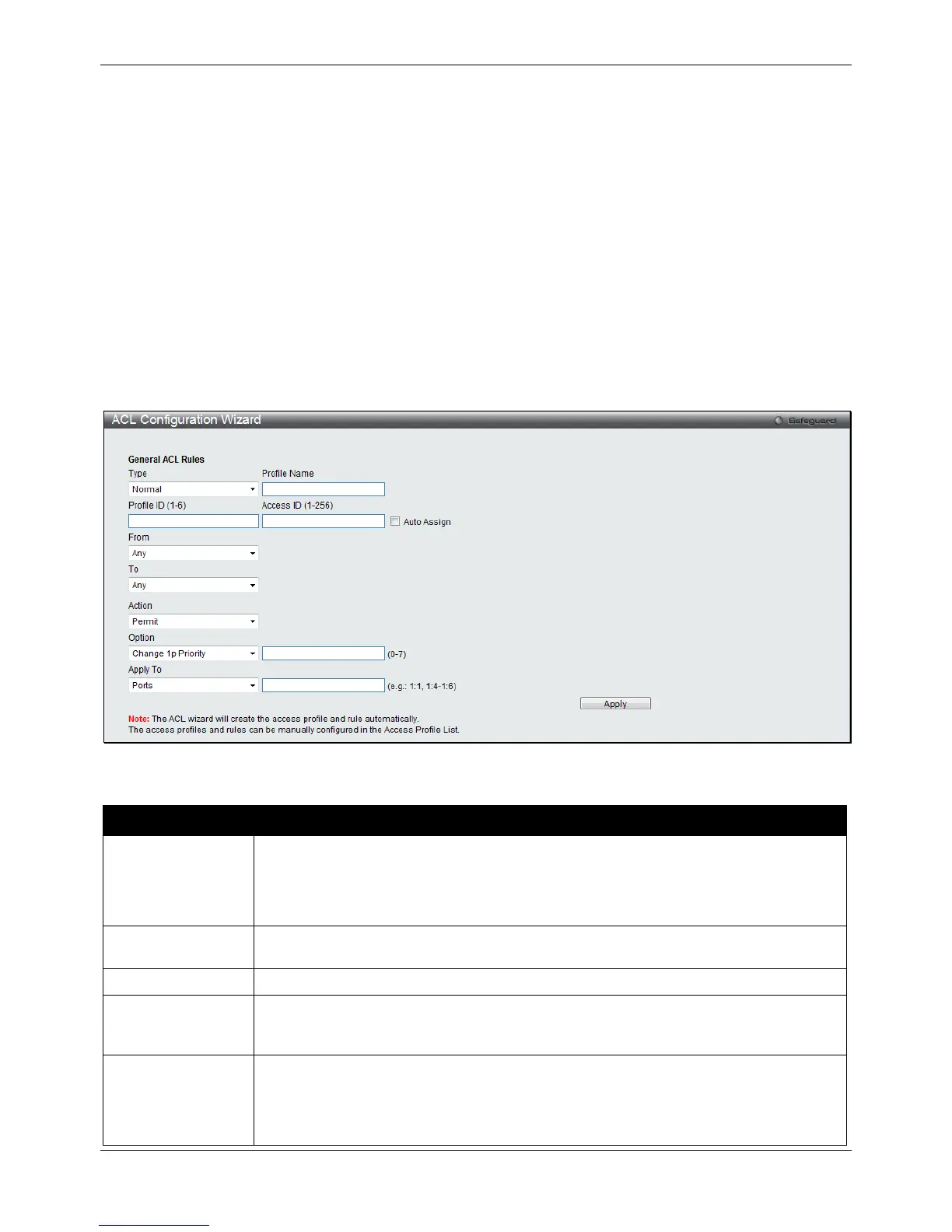

Figure 7-1 ACL Configuration Wizard window
The fields that can be configured are described below:
Parameter Description
Type
Use the drop-down menu to select the general ACL Rule types:
Normal - Select to create a Normal ACL Rule.
CPU - Select to create a CPU ACL Rule.
Egress (RI and EI Mode Only) - Select to create an Egress ACL Rule.
Profile Name After selecting to configure a Normal type rule, the user can enter the Profile Name for
the new rule here.
Profile ID (1-6)
Enter the Profile ID for the new rule. A lower value denotes a higher priority.
Access ID (1-256) Enter the Access ID for the new rule. Selecting the Auto Assign option will allow the
switch to automatically assign an unused access ID to this rule. A lower value denotes a
higher priority.
From / To
This rule can be created to apply to four different categories:
Any - Select to include any starting category to this rule.
MAC Address - Select to allow the user to enter a range of MAC addresses for this rule.
IPv4 Address - Select to allow the user to enter a range of IPv4 addresses for this rule.

D-Link xStack DGS-3120 Series Specifications

General

MAC Address Table	16K entries
Ports	10/100/1000BASE-T ports
VLANs	4094
Jumbo Frame	Up to 9KB
Power Supply	Internal power supply (depending on model)
Power over Ethernet (PoE)	No
Layer 3 Features	RIP
Quality of Service (QoS)	8 queues per port, DiffServ
Security Features	ACLs
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
SFP Ports	Combo 10/100/1000BASE-T/SFP ports and/or dedicated SFP/SFP+ ports (depending on model)
