xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
408

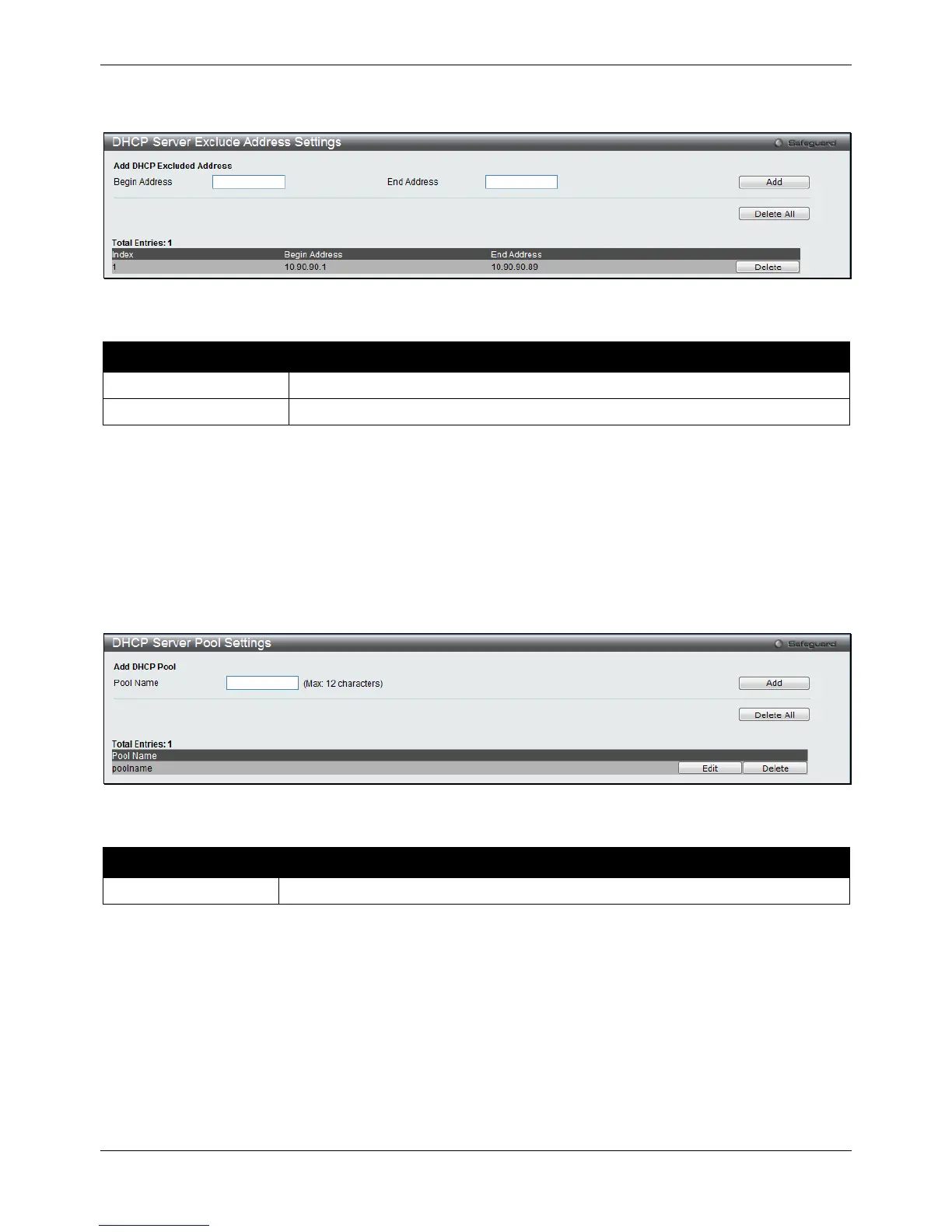

To view this window, click Network Application > DHCP > DHCP Server > DHCP Server Exclude Address
Settings as shown below:
Figure 9-12 DHCP Server Exclude Address Settings Window
The fields that can be configured are described below:
Parameter Description
Begin Address
Enter the starting IP Address.
End Address
Enter the ending IP Address.
Click the Add button to add a new entry based on the information entered.
Click the Delete All button to remove all the entries listed.
Click the Delete button to remove the specific entry.
DHCP Server Pool Settings
This window is used to add and delete the DHCP server pool.
To view this window, click Network Application > DHCP > DHCP Server > DHCP Server Pool Settings as
shown below:
Figure 9-13 DHCP Server Pool Settings Window
The fields that can be configured are described below:
Parameter Description
Pool Name
Enter the DHCP Server Pool name.
Click the Add button to add a new entry based on the information entered.
Click the Delete All button to remove all the entries listed.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove the specific entry.
After clicking the Edit button, the following page will appear:

D-Link xStack DGS-3120 Series Specifications

General

MAC Address Table	16K entries
Ports	10/100/1000BASE-T ports
VLANs	4094
Jumbo Frame	Up to 9KB
Power Supply	Internal power supply (depending on model)
Power over Ethernet (PoE)	No
Layer 3 Features	RIP
Quality of Service (QoS)	8 queues per port, DiffServ
Security Features	ACLs
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
SFP Ports	Combo 10/100/1000BASE-T/SFP ports and/or dedicated SFP/SFP+ ports (depending on model)
