xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
309
Adding an IPv4 ACL Profile
The window shown below is the Add Egress ACL Profile window for IPv4. To use specific filtering masks in this
egress ACL profile, click the packet filtering mask field to highlight it red. This will add more filed to the mask.
After clicking the Add Egress ACL button, the following window will appear:

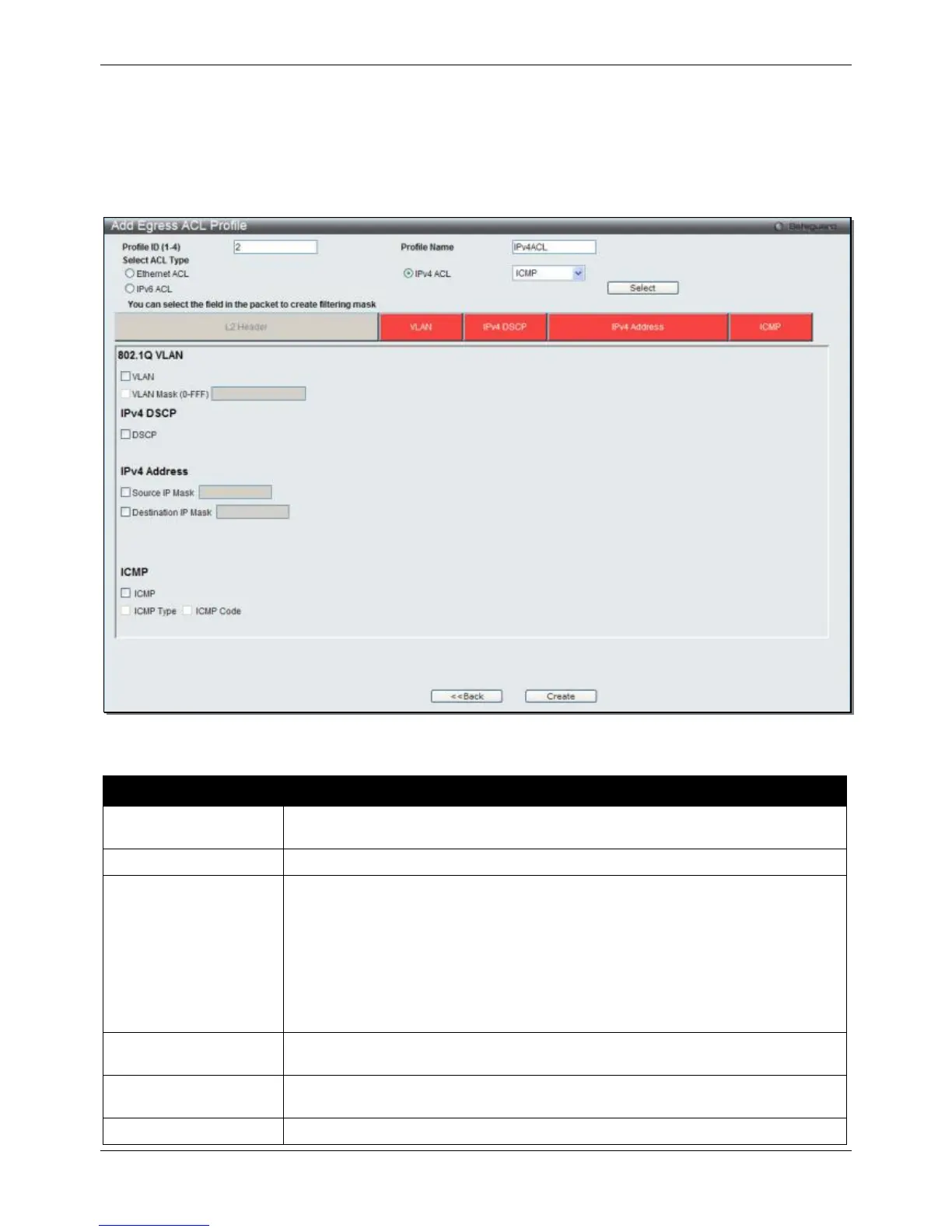

Figure 7-54 Add Egress ACL Profile window (IPv4 ACL)
The fields that can be configured are described below:
Parameter Description
Profile ID (1-4) Enter a unique identifier number for this profile set. This value can be set from 1 to
4. A lower value denotes a higher priority.
Enter a profile name for the profile created.
Select ACL Type
Select profile based on Ethernet (MAC Address), IPv4 address, or IPv6 address.
This will change the window according to the requirements for the type of profile.
Select Ethernet ACL to instruct the Switch to examine the layer 2 part of each
packet header.
Select IPv4 ACL to instruct the Switch to examine the IPv4 address in each frame's
header.
Select IPv6 ACL to instruct the Switch to examine the IPv6 address in each frame's
802.1Q VLAN
Selecting this option instructs the Switch to examine the 802.1Q VLAN identifier of
each packet header and use this as the full or partial criterion for forwarding.
IPv4 DSCP
Selecting this option instructs the Switch to examine the DiffServ Code part of each
packet header and use this as the, or part of the criterion for forwarding.
Enter an IP address mask for the source IP address.
