xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
433

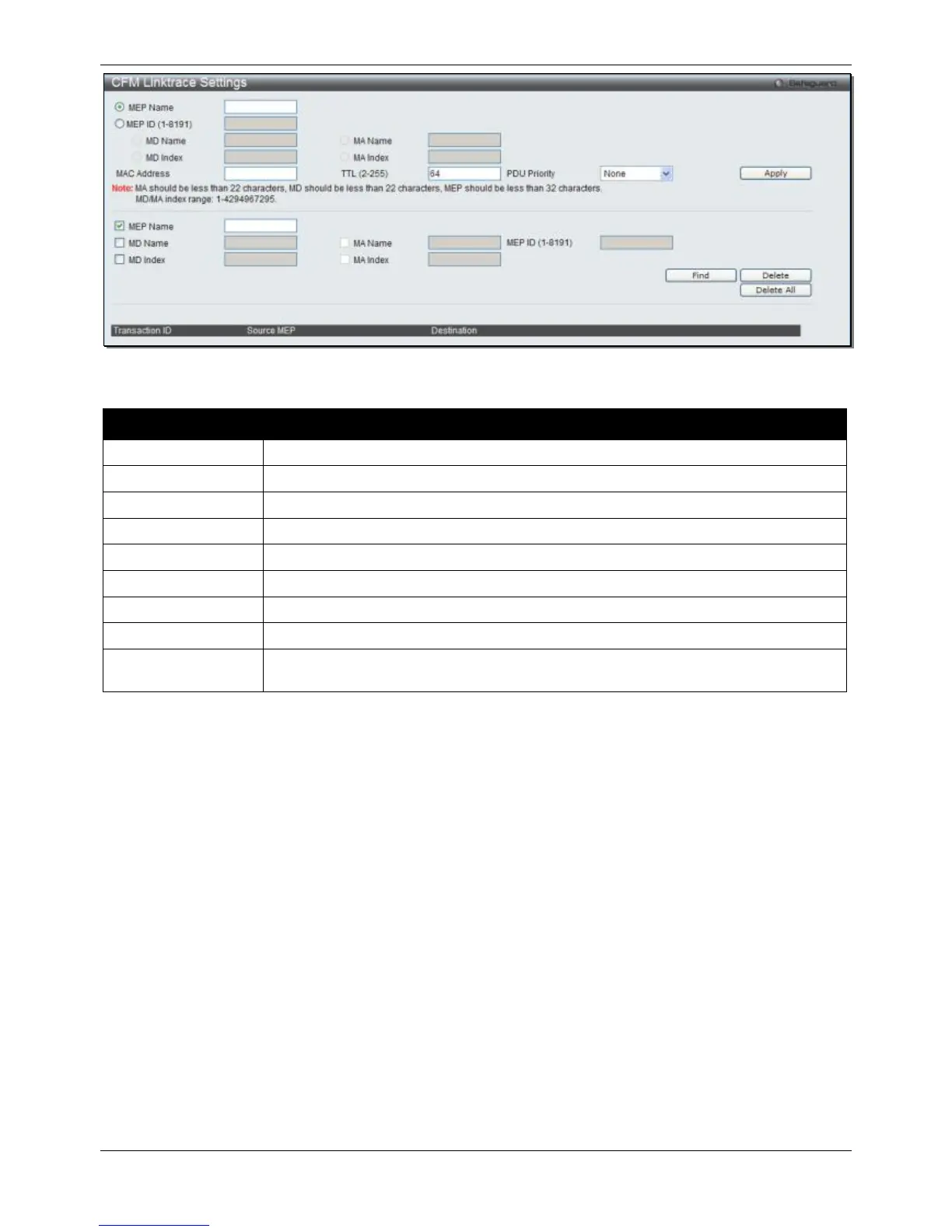

Figure 10-13 CFM Linktrace Settings Window
The fields that can be configured are described below:
Parameter Description
MEP Name
Select and enter the Maintenance End Point name used.
MEP ID (1-8191)
Select and enter the Maintenance End Point ID used.
MD Name
Select and enter the Maintenance Domain name used.
MD Index
Select and enter the Maintenance Domain index used.
MA Name
Select and enter the Maintenance Association name used.
MA Index
Select and enter the Maintenance Association index used.
MAC Address
Here the user can enter the destination MAC address.
TTL (2-255)
Link-trace message TTL value. The default value is 64.
PDU Priority
The 802.1p priority to be set in the transmitted LTM. If not specified, it uses the same
priority as CCMs sent by the MA.
Click the Apply button to accept the changes made.
Click the Find button to locate a specific entry based on the information entered.
Click the Delete button to remove the specific entry based on the information entered.
Click the Delete All button to remove all the entries listed.
CFM Packet Counter
This window is used to show the CFM packet’s RX/TX counters.
To view this window, click OAM > CFM > CFM Packet Counter, as shown below:
