To view the following window, click L2 Features > ERPS Settings, as shown below:

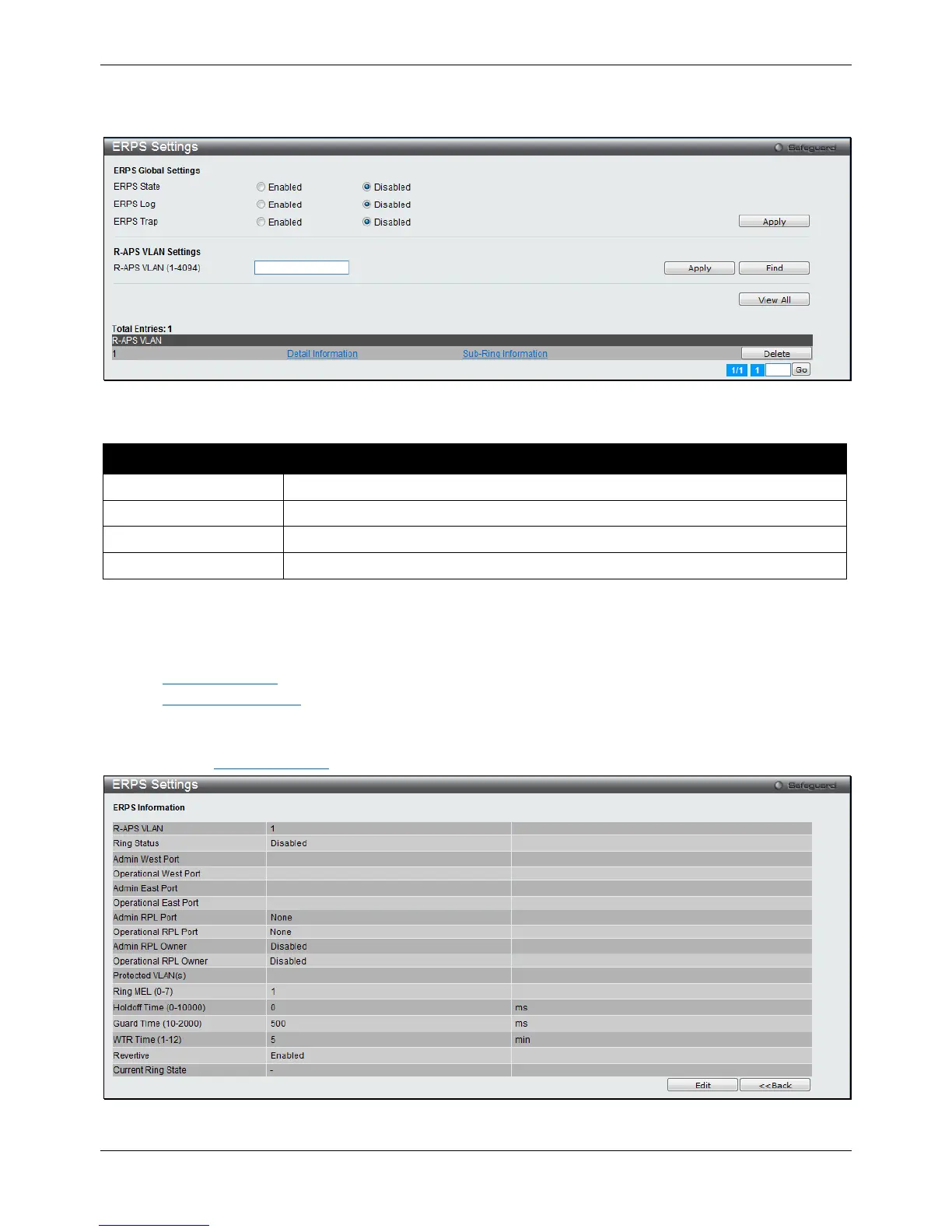

Figure 4-107 ERPS Settings Window
The fields that can be configured are described below:
Parameter Description
ERPS State
Click to enable or disable the ERPS State.
ERPS Log
Click to enable or disable the ERPS Log.
ERPS Trap
Click to enable or disable the ERPS Trap.
R-APS VLAN (1-4094)
Specify the VLAN which will be the R-APS VLAN.
Click the Apply button to accept the changes made for each individual section.
Click the Find button to find a specific entry based on the information entered.
Click the View All button to view all the entries configured.
Click the Delete button to remove the specific entry.
Click the Detail Information link to view detailed information of the R-APS entry.
Click the Sub-Ring Information link to view the Sub-Ring information of the R-APS entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Detail Information link, the following window will appear:
Figure 4-108 ERPS Settings - Detail Information window
