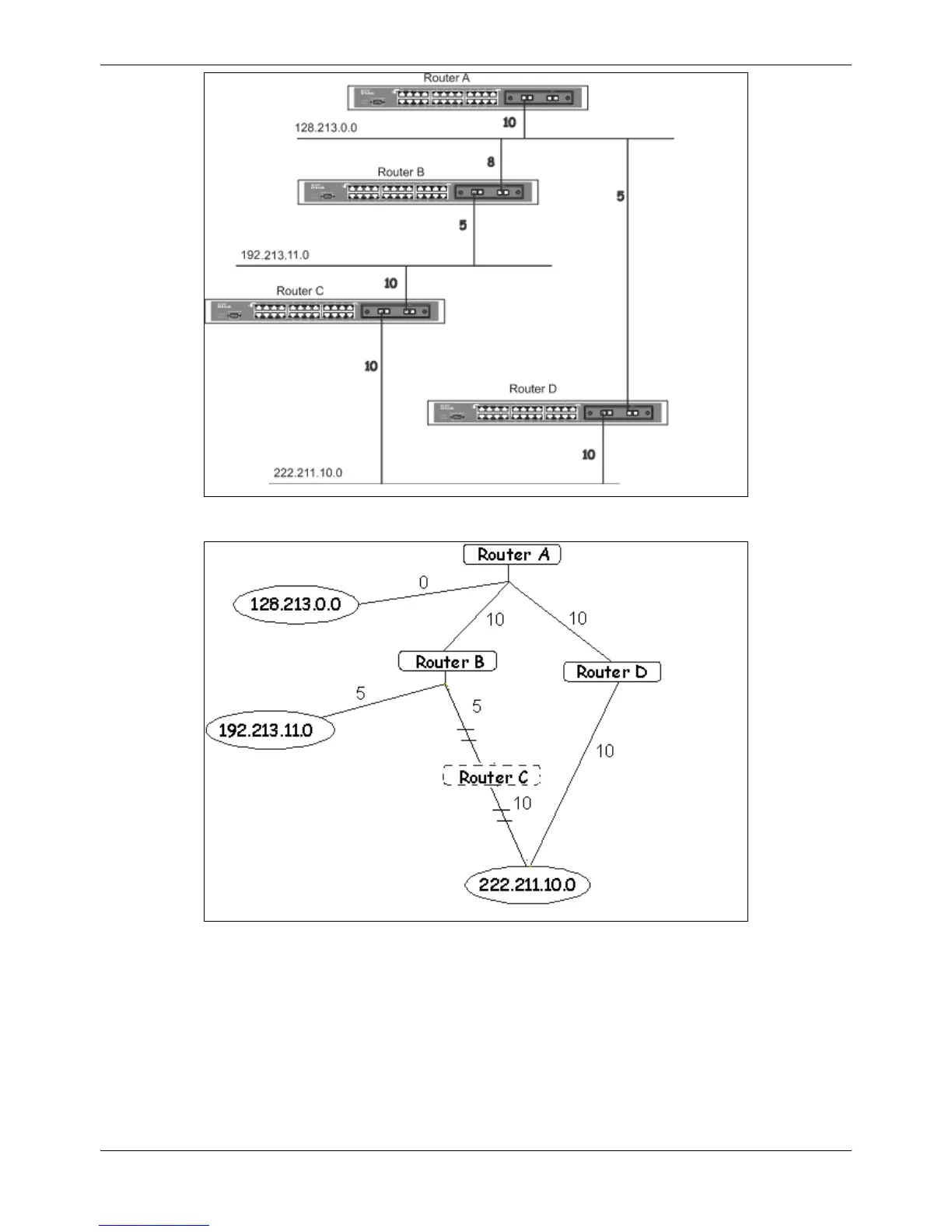

Figure 5-28 Constructing a Shortest Path Tree
Figure 5-29 Constructing a Shortest Path Tree
The diagram above shows the network from the viewpoint of Router A. Router A can reach 192.213.11.0 through
Router B with a cost of 10 + 5 = 15. Router A can reach 222.211.10.0 through Router C with a cost of 10 + 10 = 20.
Router A can also reach 222.211.10.0 through Router B and Router D with a cost of 10 + 5 + 10 = 25, but the cost
is higher than the route through Router C. This higher-cost route will not be included in the Router A’s shortest path
tree. The resulting tree will look like this:

D-Link xStack DGS-3120 Series Specifications

General

MAC Address Table	16K entries
Ports	10/100/1000BASE-T ports
VLANs	4094
Jumbo Frame	Up to 9KB
Power Supply	Internal power supply (depending on model)
Power over Ethernet (PoE)	No
Layer 3 Features	RIP
Quality of Service (QoS)	8 queues per port, DiffServ
Security Features	ACLs
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
SFP Ports	Combo 10/100/1000BASE-T/SFP ports and/or dedicated SFP/SFP+ ports (depending on model)
