D-Link xStack DGS-3120 Series Reference Guide

xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
187
Version No.
Packet Length
Router ID
Area ID
Authentication Type
Authentication
Authentication
Checksum
Link-State Request Packet
3
Link-State Type
Link-State ID
Advertising Router

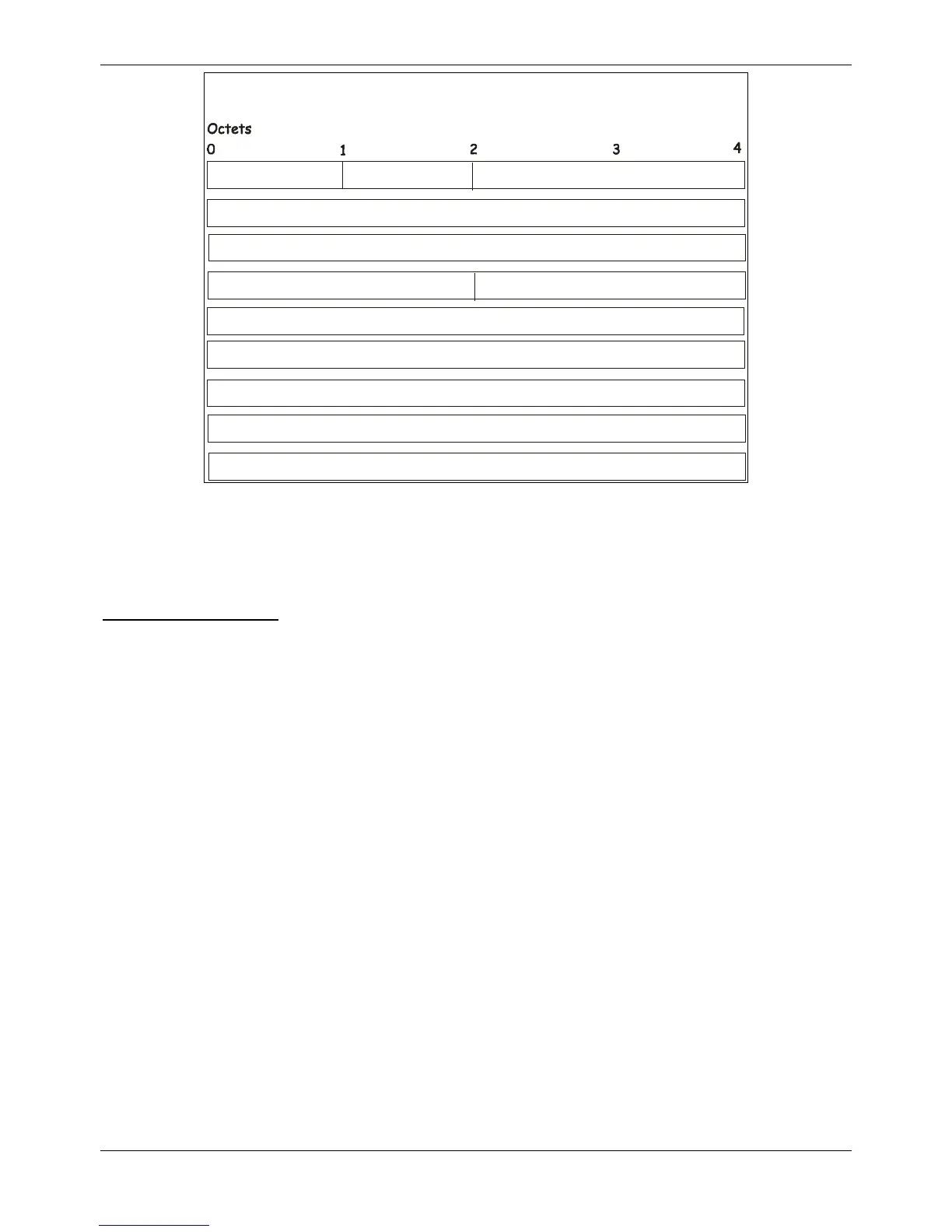

Figure 5-34 Link-State Request Packet
Each advertisement requested is specified by its Link-State Type, Link-State ID, and Advertising Router. This
uniquely identifies the advertisement, but not its instance. Link-State Request packets are understood to be
requests for the most recent instance.
Link-State Update Packet
Link-State Update packets are OSPF packet type 4. These packets implement the flooding of link-state
advertisements. Each Link-State Update packet carries a collection of link-state advertisements one hop further
from its origin. Several link-state advertisements may be included in a single packet.
Link-State Update packets are multicast on those physical networks that support multicast/broadcast. In order to
make the flooding procedure reliable, flooded advertisements are acknowledged in Link-State Acknowledgment
packets. If retransmission of certain advertisements is necessary, the retransmitted advertisements are always
carried by unicast Link-State Update packets.
The format of the Link-State Update packet is shown below:

D-Link xStack DGS-3120 Series Specifications

General

MAC Address Table	16K entries
Ports	10/100/1000BASE-T ports
VLANs	4094
Jumbo Frame	Up to 9KB
Power Supply	Internal power supply (depending on model)
Power over Ethernet (PoE)	No
Layer 3 Features	RIP
Quality of Service (QoS)	8 queues per port, DiffServ
Security Features	ACLs
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
SFP Ports	Combo 10/100/1000BASE-T/SFP ports and/or dedicated SFP/SFP+ ports (depending on model)
