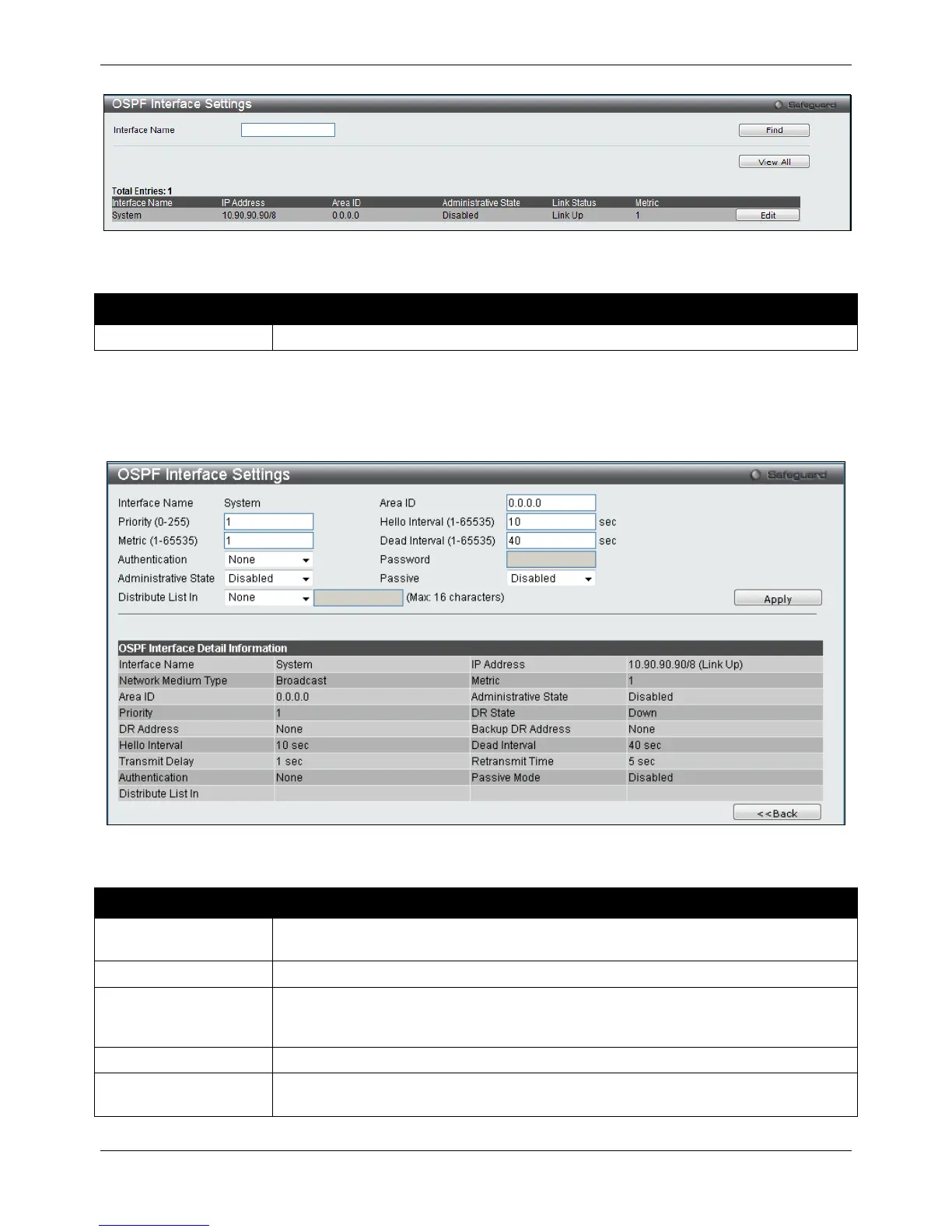

To view the following window, click L3 Features > OSPF > OSPFv2 > OSPF Interface Settings, as shown below:
Figure 5-47 OSPF Interface Settings window
The fields that can be configured are described below:
Parameter Description
Enter the name of the IP interface here
Click the Find button to find the interface entered.
Click the View All button to view all the interfaces configured on this switch.
Click the Edit button to re-configure the selected entry.
After clicking the Edit button, the following page with be displayed.
Figure 5-48 OSPF Interface Settings – Edit window
The fields that can be configured are described below:
Parameter Description
Priority (0-255)
Specifies the priority for the Designated Router election. If a Router Priority of 0 is set,
the Switch cannot be elected as the DR for the network.
Specifies the interface metric used.
Authentication Select the authentication used. Options to choose from are None, Simple and MD5.
When choosing Simple authentication, a Password must be entered. When choosing
MD5 authentication, a Key ID must be entered.
Specifies whether to enable or disable the administrative state.
Distribute List In Select the distribute list in option here. Options to choose from are None and Access
List. When selecting the Access List option, the access list name can be entered.
