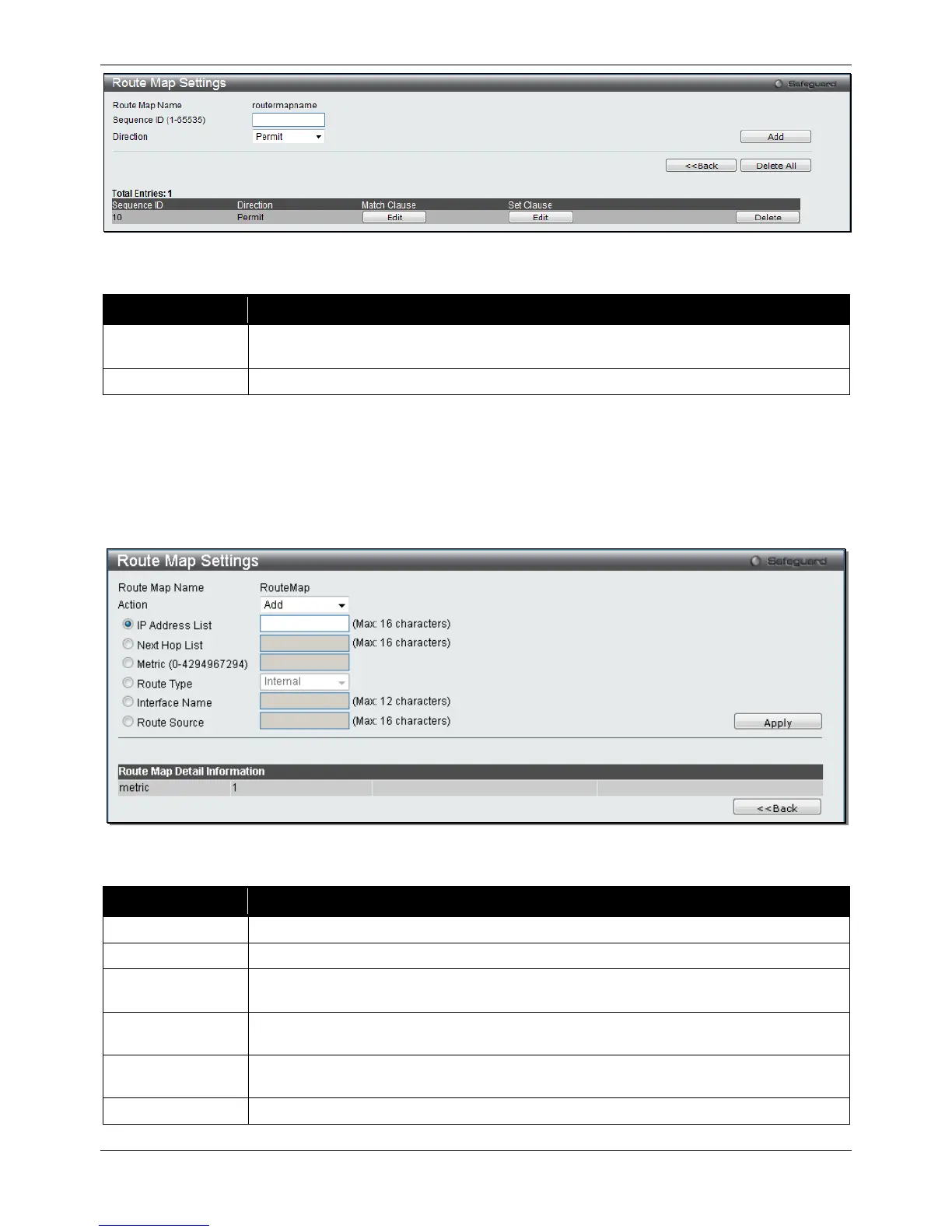

Figure 5-146 Route Map Settings - View Detail window
The fields that can be configured are described below:
Parameter Description
Sequence ID (1-
65535)
Enter the sequence number for the rule.
Direction
Use the drop-down menu to Permit or Deny the matched rule.
Click the Add button to add a new entry based on the information entered.
Click the <<Back button to return to the previous window.
Click the Delete All button to remove all the entries listed.
Click the Edit button under Match Clause or Set Clause to configure the clause.
Click the Delete button to remove the specific entry.
Click the Edit button under Match Clause to see the following window.
Figure 5-147 Route Map Settings - Match Clause window
The fields that can be configured are described below:
Parameter Description
Action
Use the drop-down menu to Add or Delete a sequence entry.
IP Address List
Click the radio button and specify to match the route according to the access list.
Next Hop List
Click the radio button and specify to match the next hop of the route according to the
prefix list.
Metric
(0-4294967294)
Click the radio button and specify to match the metric of the route.
Route Type Select the route type used here. Options to choose from are Internal, External, Type_1,
and Type_2.
Interface Name
Enter the interface name used here.

D-Link xStack DGS-3120 Series Specifications

General

MAC Address Table	16K entries
Ports	10/100/1000BASE-T ports
VLANs	4094
Jumbo Frame	Up to 9KB
Power Supply	Internal power supply (depending on model)
Power over Ethernet (PoE)	No
Layer 3 Features	RIP
Quality of Service (QoS)	8 queues per port, DiffServ
Security Features	ACLs
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
SFP Ports	Combo 10/100/1000BASE-T/SFP ports and/or dedicated SFP/SFP+ ports (depending on model)
