D-Link xStack DGS-3120 Series Reference Guide

xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
273
Select IPv4 ACL to instruct the Switch to examine the IPv4 address in each frame's
header.
Select IPv6 ACL to instruct the Switch to examine the IPv6 address in each frame's
header.
Select Packet Content to instruct the Switch to examine the packet content in each
frame’s header.
Source MAC Mask
Enter a MAC address mask for the source MAC address, e.g. FF-FF-FF-FF-FF-FF.
Destination MAC
Mask
Enter a MAC address mask for the destination MAC address, e.g. FF-FF-FF-FF-FF-
FF.
802.1Q VLAN
Selecting this option instructs the Switch to examine the 802.1Q VLAN identifier of
each packet header and use this as the full or partial criterion for forwarding.
802.1p
Selecting this option instructs the Switch to examine the 802.1p priority value of each
packet header and use this as the, or part of the criterion for forwarding.
Ethernet Type
Selecting this option instructs the Switch to examine the Ethernet type value in each
frame's header.
Click the Select button to select an ACL type.
Click the Create button to create a profile.
Click the <<Back button to discard the changes made and return to the previous page.

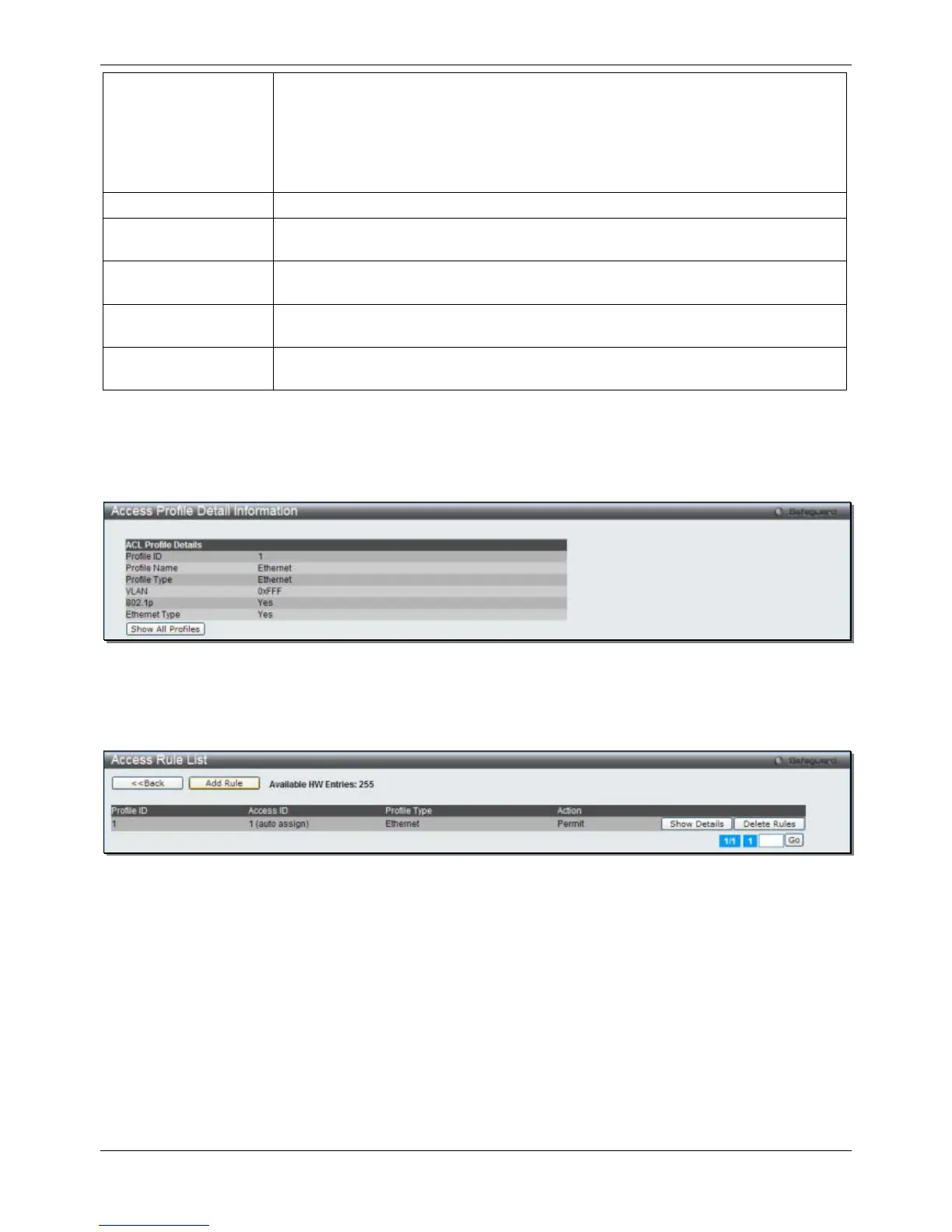

After clicking the Show Details button, the following window will appear:
Figure 7-4 Access Profile Detail Information window (Ethernet ACL)
Click the Show All Profiles button to navigate back to the Access Profile List Page.
After clicking the Add/View Rules button, the following window will appear:
Figure 7-5 Access Rule List window (Ethernet ACL)
Click the Add Rule button to create a new ACL rule in this profile.
Click the <<Back button to return to the previous page.
Click the Show Details button to view more information about the specific rule created.
Click the Delete Rules button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Add Rule button, the following window will appear:

D-Link xStack DGS-3120 Series Specifications

General

MAC Address Table	16K entries
Ports	10/100/1000BASE-T ports
VLANs	4094
Jumbo Frame	Up to 9KB
Power Supply	Internal power supply (depending on model)
Power over Ethernet (PoE)	No
Layer 3 Features	RIP
Quality of Service (QoS)	8 queues per port, DiffServ
Security Features	ACLs
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
SFP Ports	Combo 10/100/1000BASE-T/SFP ports and/or dedicated SFP/SFP+ ports (depending on model)
