xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
317
After clicking the Add or Modify button, the following window will appear:

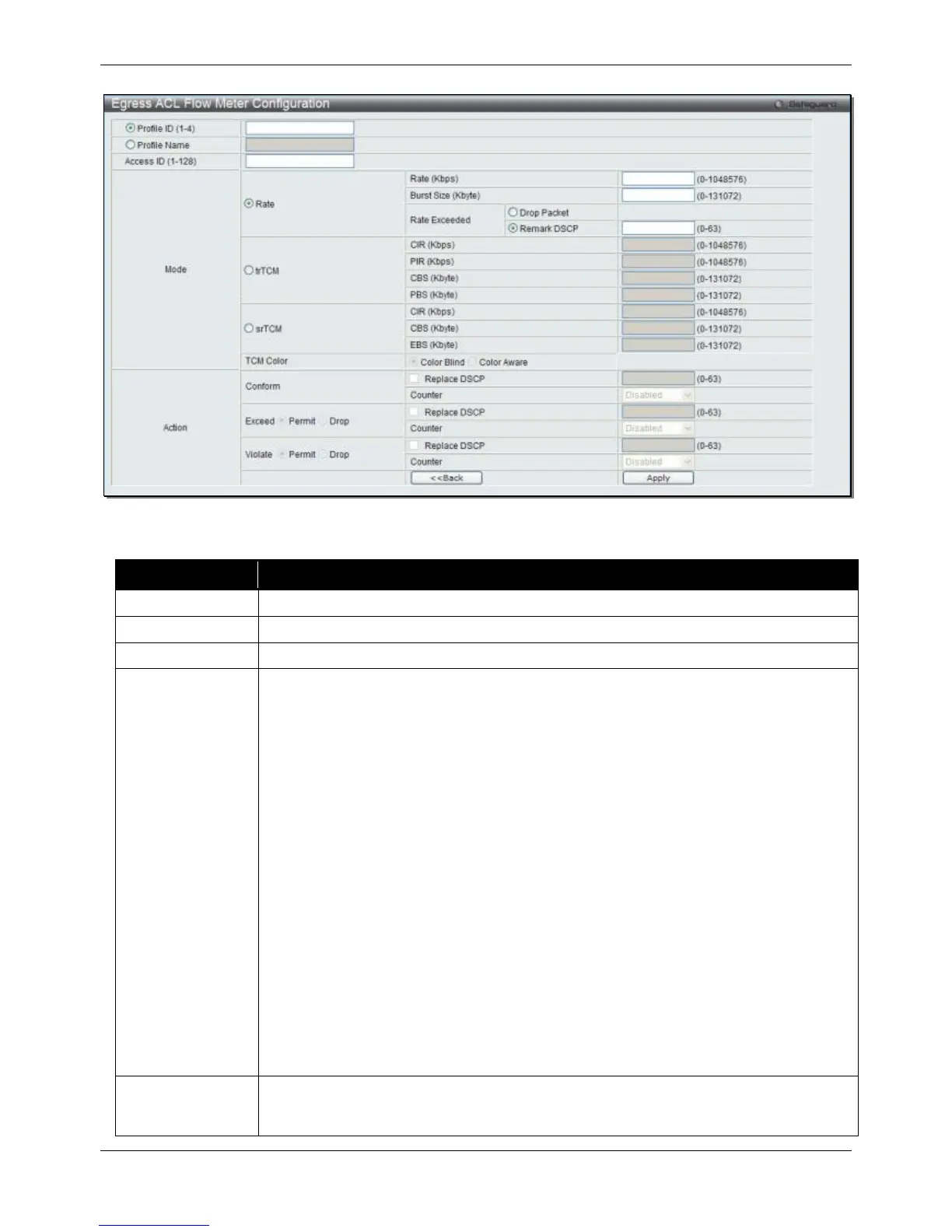

Figure 7-65 Egress ACL Flow Meter Configuration window
The fields that can be configured are described below:
Parameter Description
Profile ID (1-4)
Enter the Profile ID for the flow meter. A lower value denotes a higher priority.
Profile Name
Enter the Profile Name for the flow meter.
Access ID (1-128)
Enter the Access ID for the flow meter. A lower value denotes a higher priority.
Mode Rate – Specify the rate for single rate two color mode.
Rate – Specify the committed bandwidth in Kbps for the flow.
Burst Size – Specify the burst size for the single rate two color mode. The unit is in
kilobyte.
Rate Exceeded – Specify the action for packets that exceed the committed rate in single
rate two color mode. The action can be specified as one of the following:
Drop Packet – Drop the packet immediately.
Remark DSCP – Mark the packet with a specified DSCP. The packet is set to drop for
packets with a high precedence.
trTCM – Specify the “two-rate three-color mode.”
CIR – Specify the Committed information Rate. The unit is Kbps. CIR should always be
equal or less than PIR.
PIR – Specify the Peak information Rate. The unit is Kbps. PIR should always be equal to
or greater than CIR.
CBS – Specify the Committed Burst Size. The unit is in kilobyte.
PBS – Specify the Peak Burst Size. The unit is in kilobyte.
srTCM – Specify the “single-rate three-color mode”.
CIR – Specify the Committed Information Rate. The unit is in Kbps.
CBS – Specify the Committed Burst Size. The unit is in kilobyte.
EBS – Specify the Excess Burst Size. The unit is in kilobyte.
Action Conform – This field denotes the green packet flow. Green packet flows may have their
DSCP field rewritten to a value stated in this field. Users may also choose to count green
packets by using counter parameter.
