xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
381

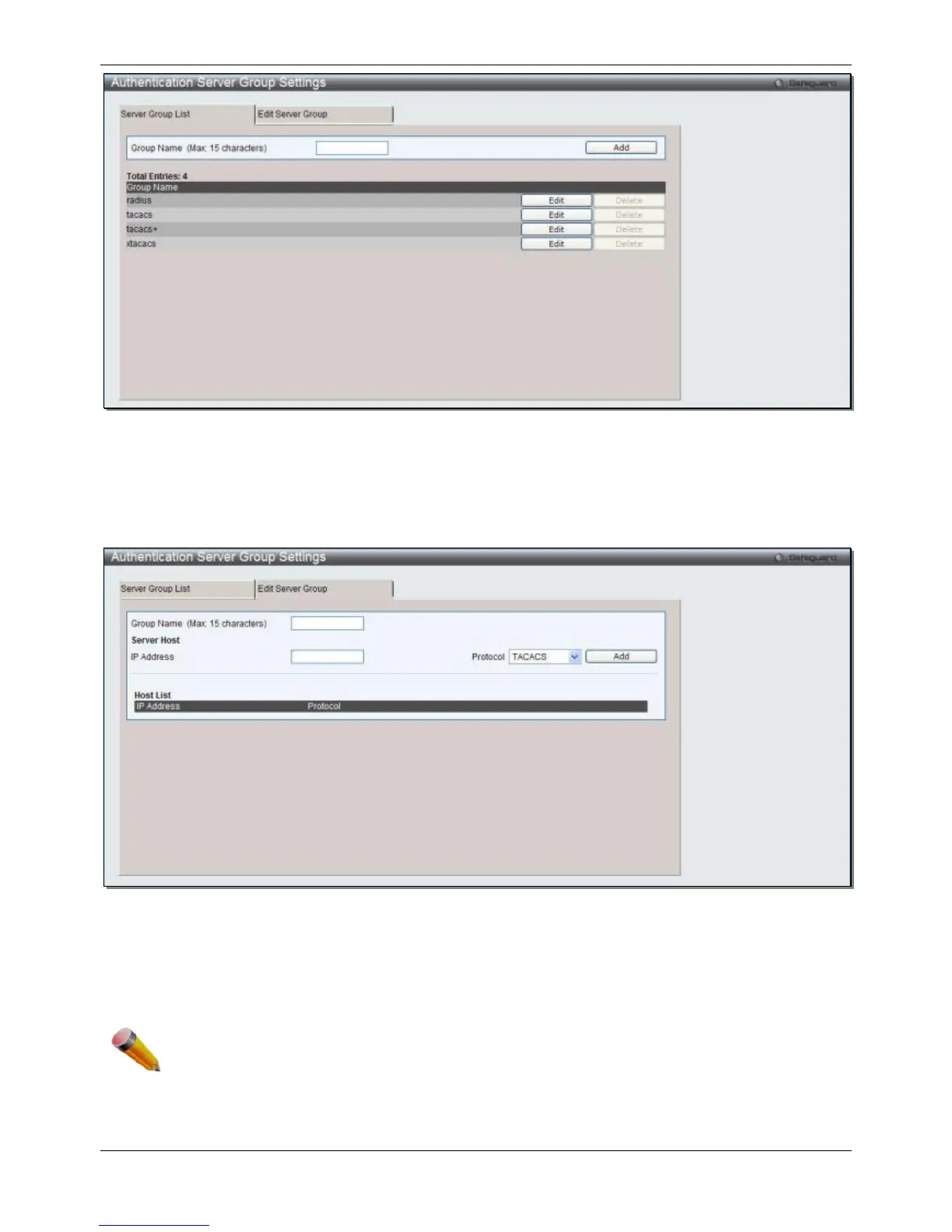

Figure 8-77 Authentication Server Group Settings Server Group List window
This window displays the Authentication Server Groups on the Switch. The Switch has four built-in Authentication
Server Groups that cannot be removed but can be modified. To add a new Server Group, enter a name in the
Group Name field and then click the Add button. To modify a particular group, click the Edit button (or the Edit
Server Group tab), which will then display the following Edit Server Group tab:
Figure 8-78 Authentication Server Group Settings Edit Server Group window
To add an Authentication Server Host to the list, enter its name in the Group Name field, IP address in the IP
Address field, use the drop-down menu to choose the Protocol associated with the IP address of the
Authentication Server Host, and then click Add to add this Authentication Server Host to the group. The entry
should appear in the Host List at the bottom of this tab.
NOTE: The user must configure Authentication Server Hosts using the Authentication Server Hosts
window before adding hosts to the list. Authentication Server Hosts must be configured for their
specific protocol on a remote centralized server before this function can work properly.
