DAF LF45 Series Service Manual

©
200508 3-1
Inspection and adjustment
ZF 6S-850 GEARBOX
ΛΦ45/55 series
3
5
3. INSPECTION AND ADJUSTMENT
3.1 CHECKING GEARBOX OIL LEVEL
To prevent skin injury, avoid
unnecessary contact with the
drained oil.
ZF 6S-850 gearbox
1. Position the vehicle on a level surface.
2. Wait for some minutes to allow the oil to flow
back.

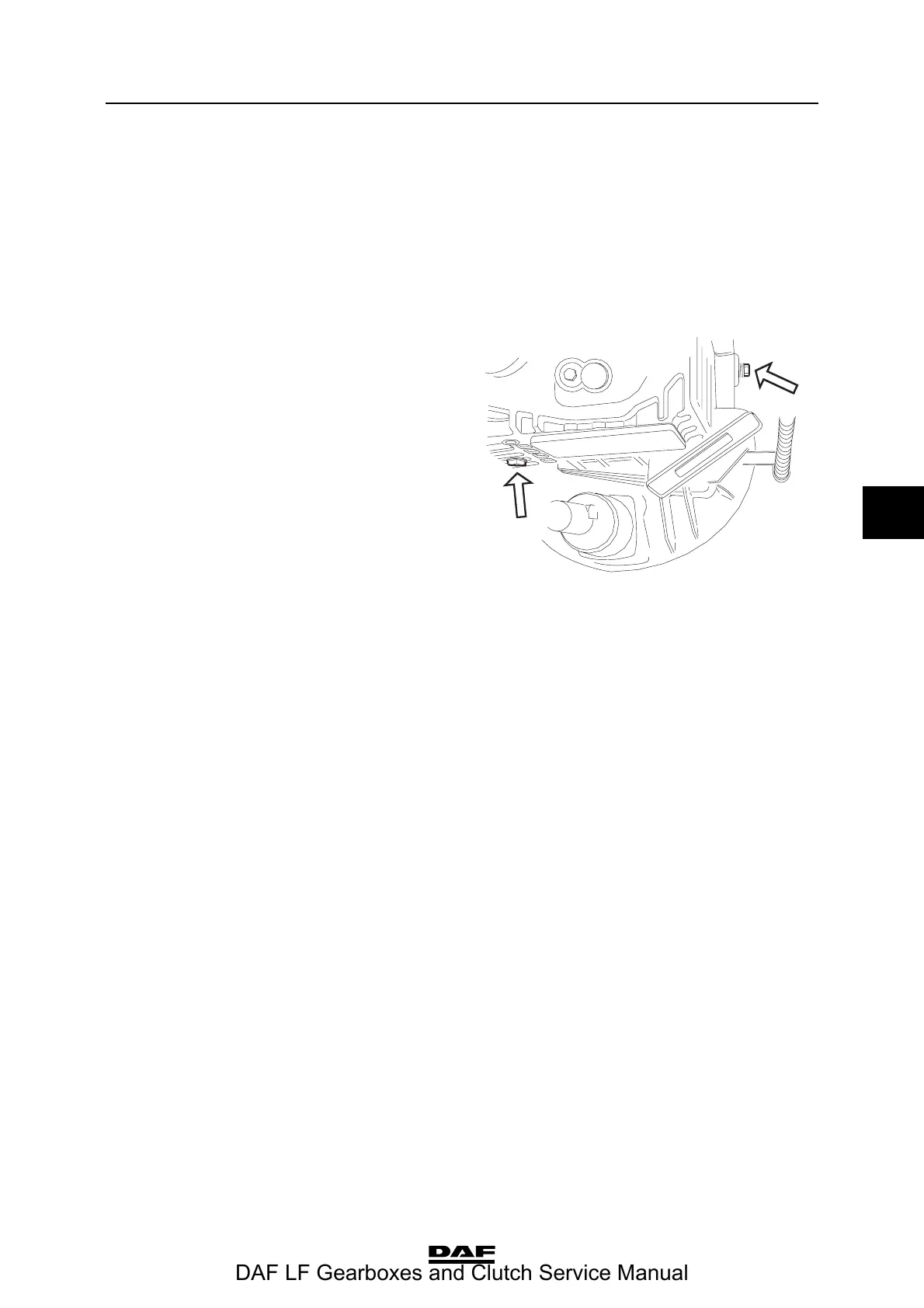

3. Remove the level check plug and check the
oil level.
4. The oil level must reach the rim of the level
check/filler opening (A).
5. After checking the oil level, tighten the level
check plug to the specified torque. See
"Technical data".
}
B
M3038
A
