5.6 REMOVING AND INSTALLING CLUTCH CYLINDER
Removing the clutch cylinder
1. Drain the clutch system; see "Draining and
filling".
2. Remove the retainer clip and the hydraulic
pipe.

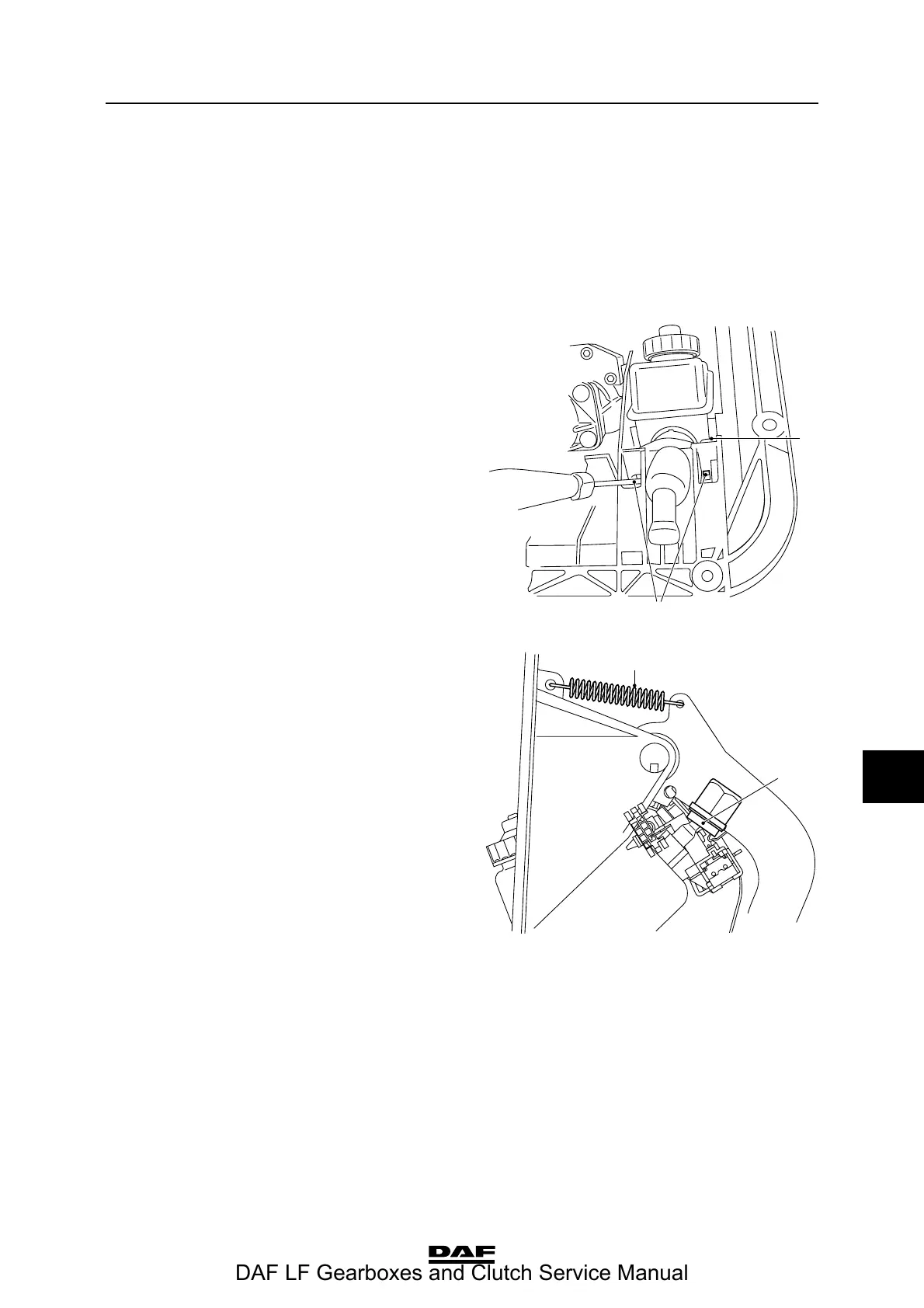

3. Remove the attachment screw from the
fastening bridge (1).
4. Using a screwdriver, press the lock levers (2)
back and remove the fastening bridge (1).
5. Screw the plastic fastening jig (1) out of
the clutch pedal. If necessary, detach the
spring (2).
6. Remove the clutch cylinder.
Fitting clutch cylinder
1. Reposition the clutch cylinder in the holder.
2
1
V3 00 577
2
1
V3 00 579
