EATON FS/6309A GEARBOX
1-2
©
200508
General
6
ΛΦ45/55 series
3
1.2 SYSTEM DESCRIPTION

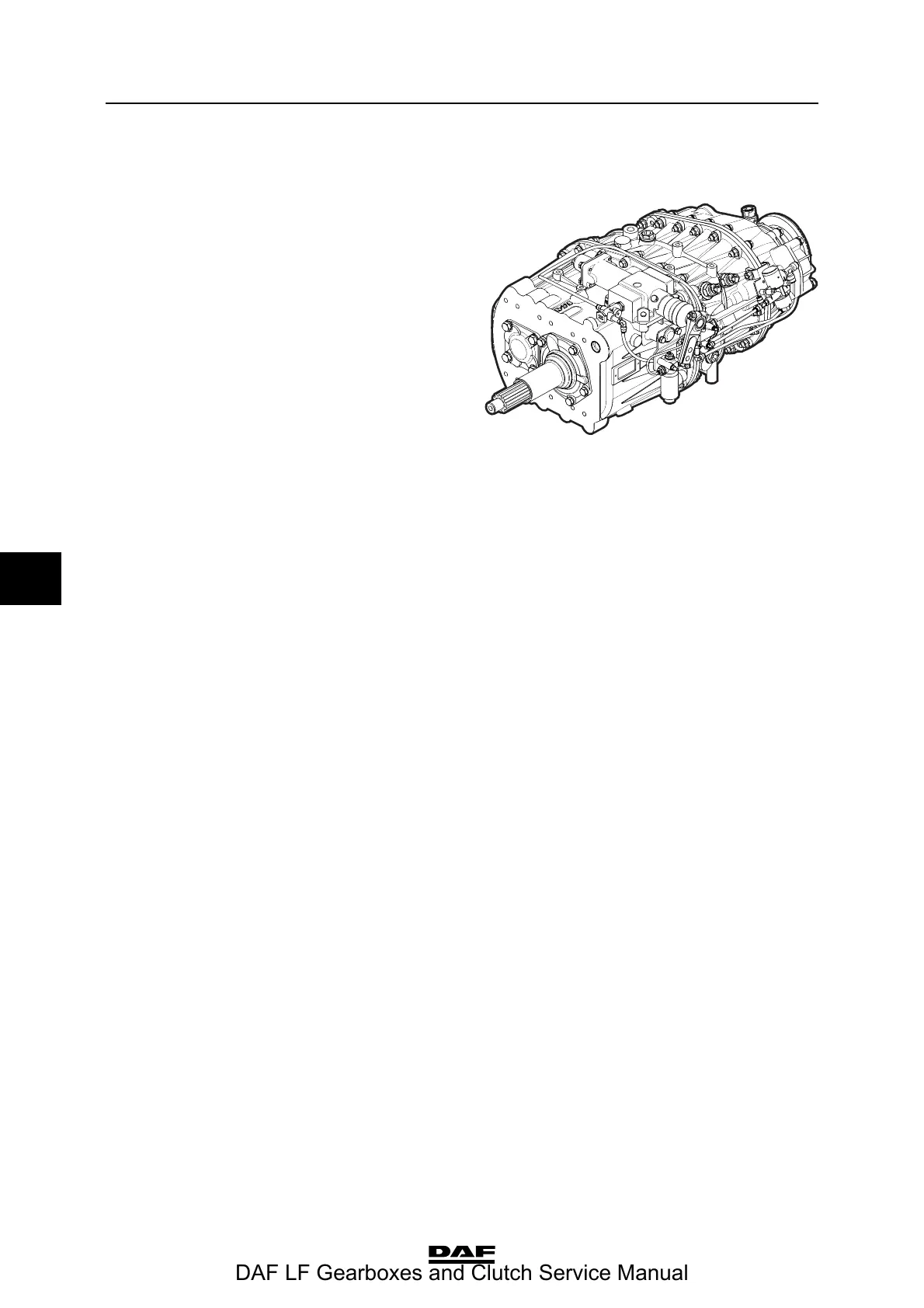

The gearbox consists of a main gearbox with four
synchromesh forward gears, a non-synchromesh
crawler gear, and one non-synchromesh reverse
gear. Between the main gearbox and the output
shaft there is a set of planetary range gears with
pneumatic synchronisation.
In the low range (planetary system engaged), the
crawler gear and gears 1, 2, 3 and 4 can be
engaged.
In the high range (planetary system disengaged),
gears 5, 6, 7 and 8 can be engaged.
The switching system is in a "single-H" pattern.
Use of the "single-H" system means that the low
or high range must be selected by means of a
button on the ball of the gear lever prior to
engaging gear. The group is changed as soon as
the selector shaft passes through the neutral
position.
V300438-2
DAF LF Gearboxes and Clutch Service Manual
