EATON FS/6309A GEARBOX
2-2
©
200508
Inspection and adjustment
6
ΛΦ45/55 series
3
2.2 INSPECTION AND ADJUSTMENT, INPUT SHAFT BEARING AXIAL PLAY
Inspection, input shaft bearing axial play
1. Remove the gearbox. See "Removal and
installation".
2. Remove the gearbox front cover from the
input shaft. See "Removal and installation".

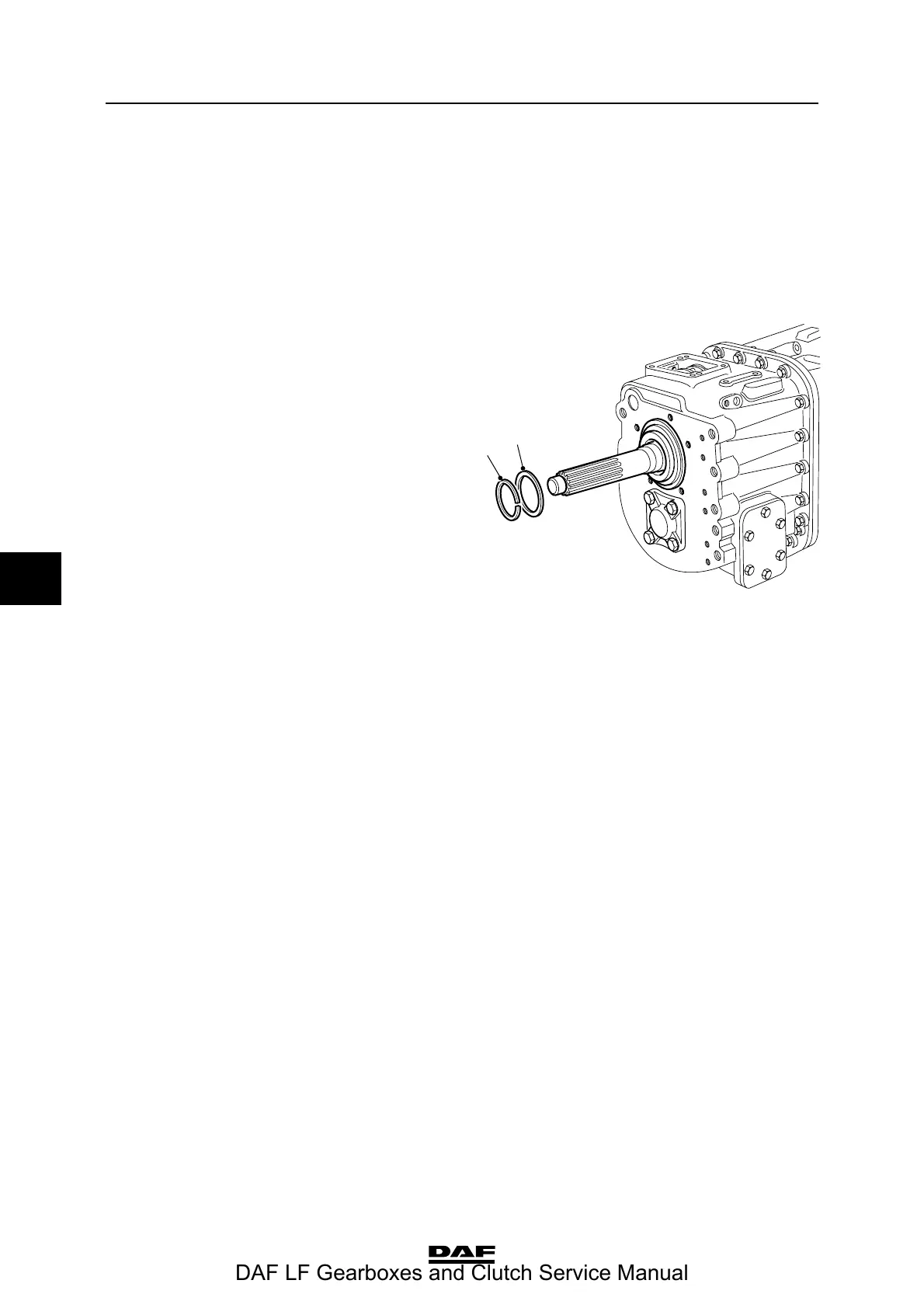

3. Check whether the circlip (1) is flush in the
groove. Check at various places around the
shaft.
4. If necessary, adjust the axial play by means
of a thicker or thinner adjusting ring (2).
Adjustment, input shaft bearing axial play
1. Remove the circlip (1) of the input shaft
bearing.
2. Remove the adjusting ring (2).
3. Place an adjusting ring (2) of the correct
thickness between the input shaft bearing
and the circlip. See "Technical data".
4. Fit the circlip (1) without any play into the
groove. Check at various places around the
shaft.
5. Fit a new gasket in the gearbox front cover
and install the gearbox front cover. See
"Removal and installation".
6. Fit the gearbox. See "Removal and
installation".
1
2
V3 00 415
DAF LF Gearboxes and Clutch Service Manual
