Description of components
CLUTCH
ΛΦ45/55 series
3
9
3.2 WEAR INDICATOR

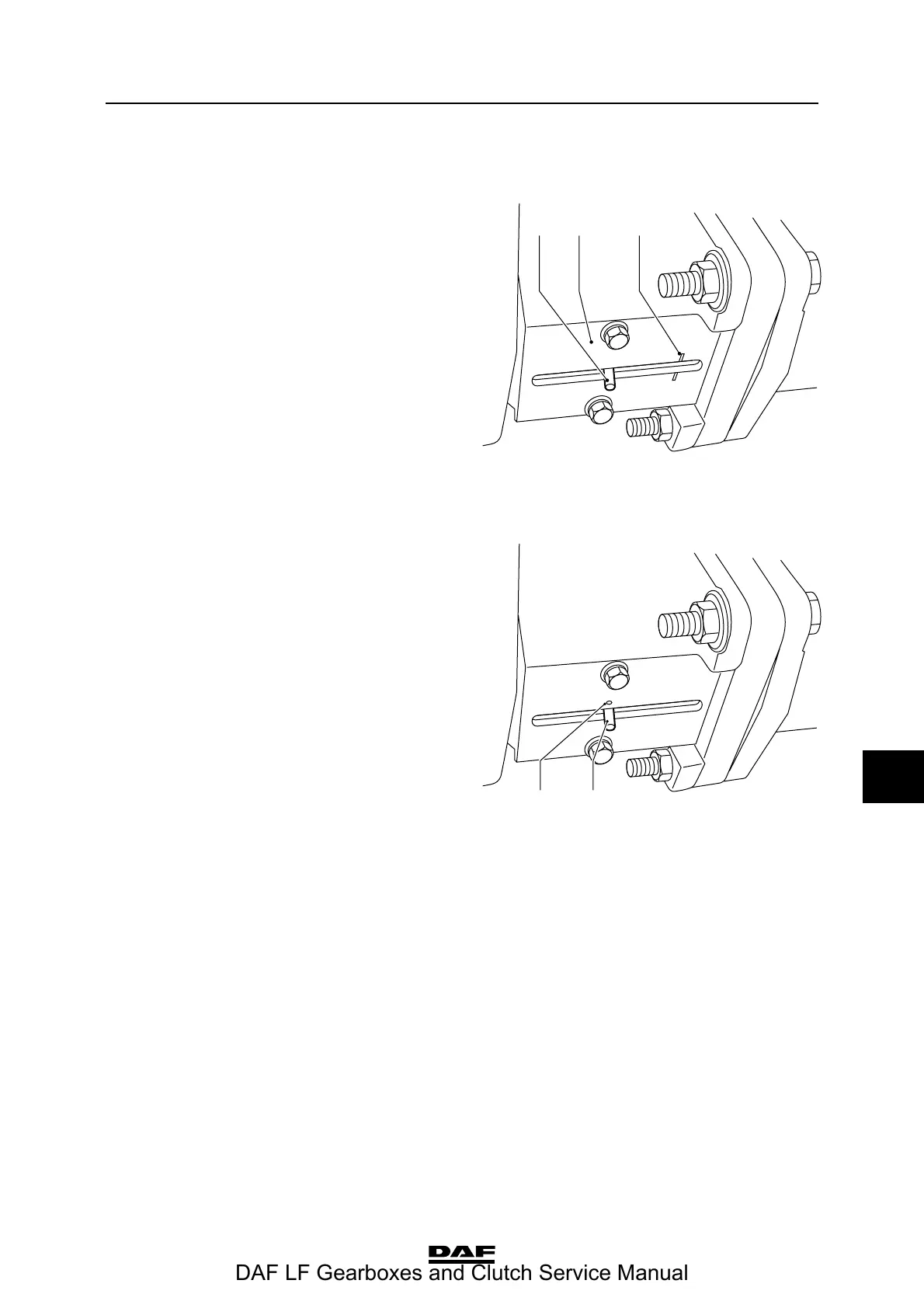

An indicator (1) is mounted on the push rod of the
clutch servo. The end of the indicator can be seen
in the groove of the indicator cover (2).
As the clutch plate wears, the indicator (1) will
move towards the end mark (3). When the
indicator (1) reaches the end mark (3), it may be
assumed that the clutch plate is due to be
replaced.
Automatically adjusting clutch release
assembly
Check that the wear indicator (2) on the clutch
servo is directly opposite the mark (1) on the
cover.
If the wear indicator is no longer level with the
mark on the clutch servo, replace the clutch plate.
V3 00 381
1 2 3
V3 00 375
12
DAF LF Gearboxes and Clutch Service Manual
