5.3 REMOVAL AND INSTALLATION, CLUTCH LEVER
Removing clutch lever
1. Remove the gearbox.
2. Remove the thrust bearing (4).
3. Remove the clip (5) and the yoke pin (7).
4. Force the ball joint (2) which is installed in the
clutch lever (3) out of the attachment point in
the clutch housing.
Note:
It may be possible to remove the complete
support point (1) by turning the attachment
point out of the clutch housing.
Fitting clutch lever
1. Apply a little grease to the moving parts of
the clutch lever.
2. Lock the support point (1) in the clutch
housing with a suitable locking compound.
3. Install the ball joint (2) in the clutch lever (3)
and install the clutch lever in the clutch
housing.
4. Install the yoke pin (7) in the claw (6) and put
on the clip (5).
5. Install the thrust bearing (4).
6. Fit the gearbox.

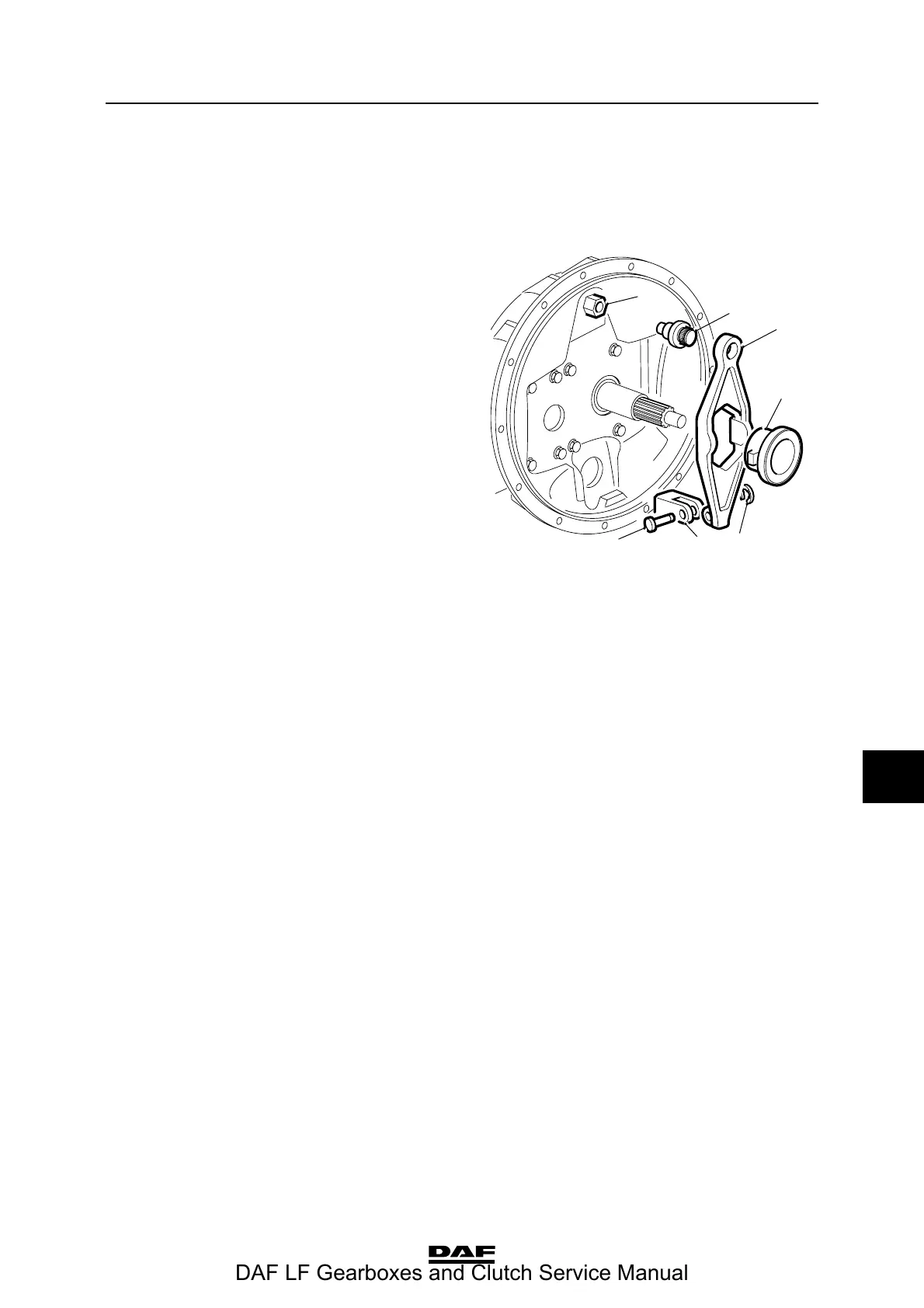

V300397
