Mechanical gearbox control
TECHNICAL DATA
ΛΦ45/55 series
3
0

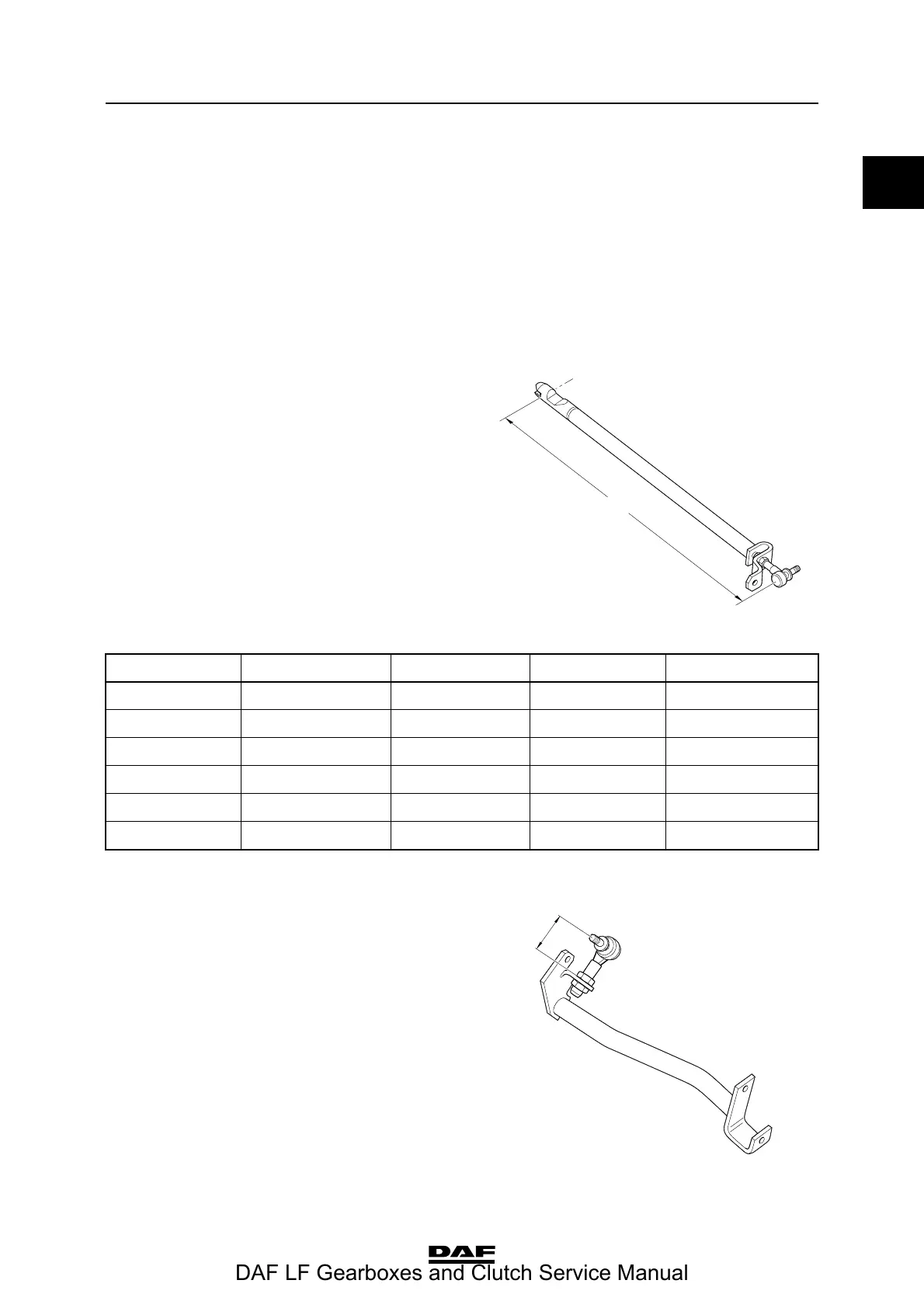

1. MECHANICAL GEARBOX CONTROL
1.1 GENERAL
Switch button
Control rod
Control rod underneath the cab
Length A
Control rod behind the cab
Locking compound Loctite 243
Lubricant Molykote BR2S or BR2 plus
V3 00 563
A
Engine Gearbox Cab suspension Class Length A [mm]
CE engine ZF 6S850 steel 1 669
CE engine ZF 6S850 rubber 1 664
CE engine ZF 6S850 steel 2 + 3 674
CE engine ZF 6S850 rubber 2 + 3 669
CE engine FS6309A steel 2 + 3 674
CE engine FS6309A rubber 2 + 3 669
V3 00 564
B
Length B 60 - 62 mm
