Description of components
ALLISON MD 3060 AUTOMATIC GEARBOX
ΛΦ45/55 series
3
8
2. DESCRIPTION OF COMPONENTS

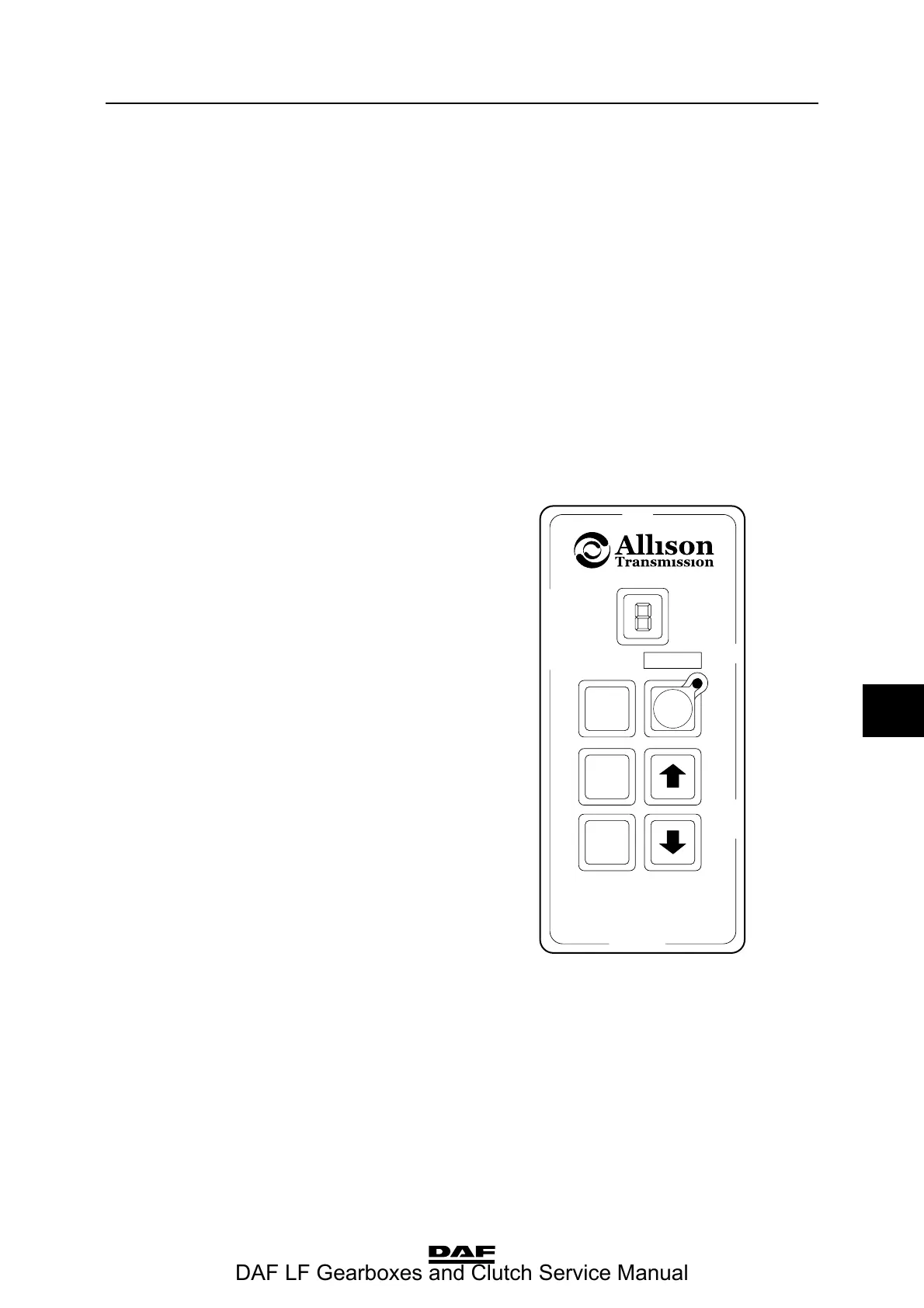

2.1 AUTOMATIC GEARBOX SELECTOR KEYPAD
The selector has the following functions:
- activating and deactivating the gearbox
- choosing a shift program
- reading the oil level
- reading and deleting fault codes
The selector has the following six keys:
Neutral position
No gear is activated in the "N" position. The
vehicle is not locked in this position and can
therefore roll.
Use the parking brake to lock the vehicle.
"N" appears on the display.
Automatic forward drive
If the "D" position is selected, the vehicle will
immediately begin to move (if the brake system is
at pressure and the vehicle is not on the parking
brake). It is therefore advisable to depress the
brake pedal before selecting position "D". In this
position, the gearbox can automatically change
up to the highest gear.
The highest gear that the gearbox can change up
to is shown on the display.
Reverse
If position "R" is chosen, the vehicle will also be
immediately set in motion. First depress the
brake pedal and then select position "R". "R"
appears on the display.
Neutral Neutral position Display shows "N"
Drive Automatic forward drive Highest gear
Reverse Reverse Display shows "R"
MODE Shift program selection Normal or economy (LED on) program
√ Shifting up Display shows the gear selected
™ Shifting down Display shows the gear selected
R
D
MODE
N
V300392
