DAF LF45 Series Service Manual

©
200508 1-3
General
MECHANICAL GEARBOX CONTROL
ΛΦ45/55 series
3
2

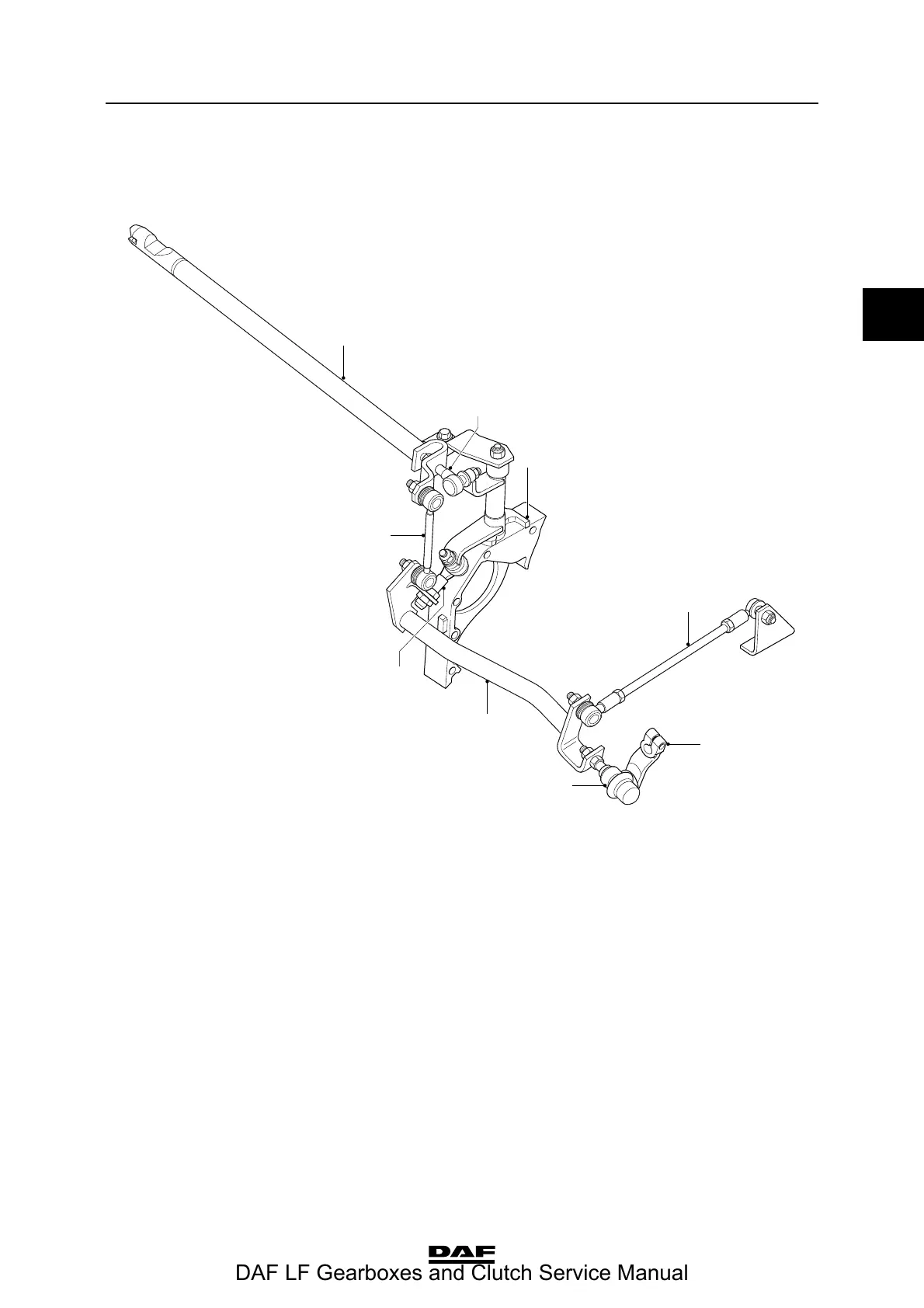

1.3 OVERVIEW DRAWING, OPERATING MECHANISM, 4 ADJUSTMENT
OPTIONS
V3 00 566
1
2
3
4
5
6
7
8
9
1. Control rod underneath the cab
2. Ball joint
3. Bracket
4. Torque rod
5. Gearbox lever
6. Ball joint
7. Control rod behind the cab
8. Ball joint
9. Torque rod
