200508 4-5
Removal and installation
ZF 6S-850 GEARBOX
ΛΦ45/55 series
3
5

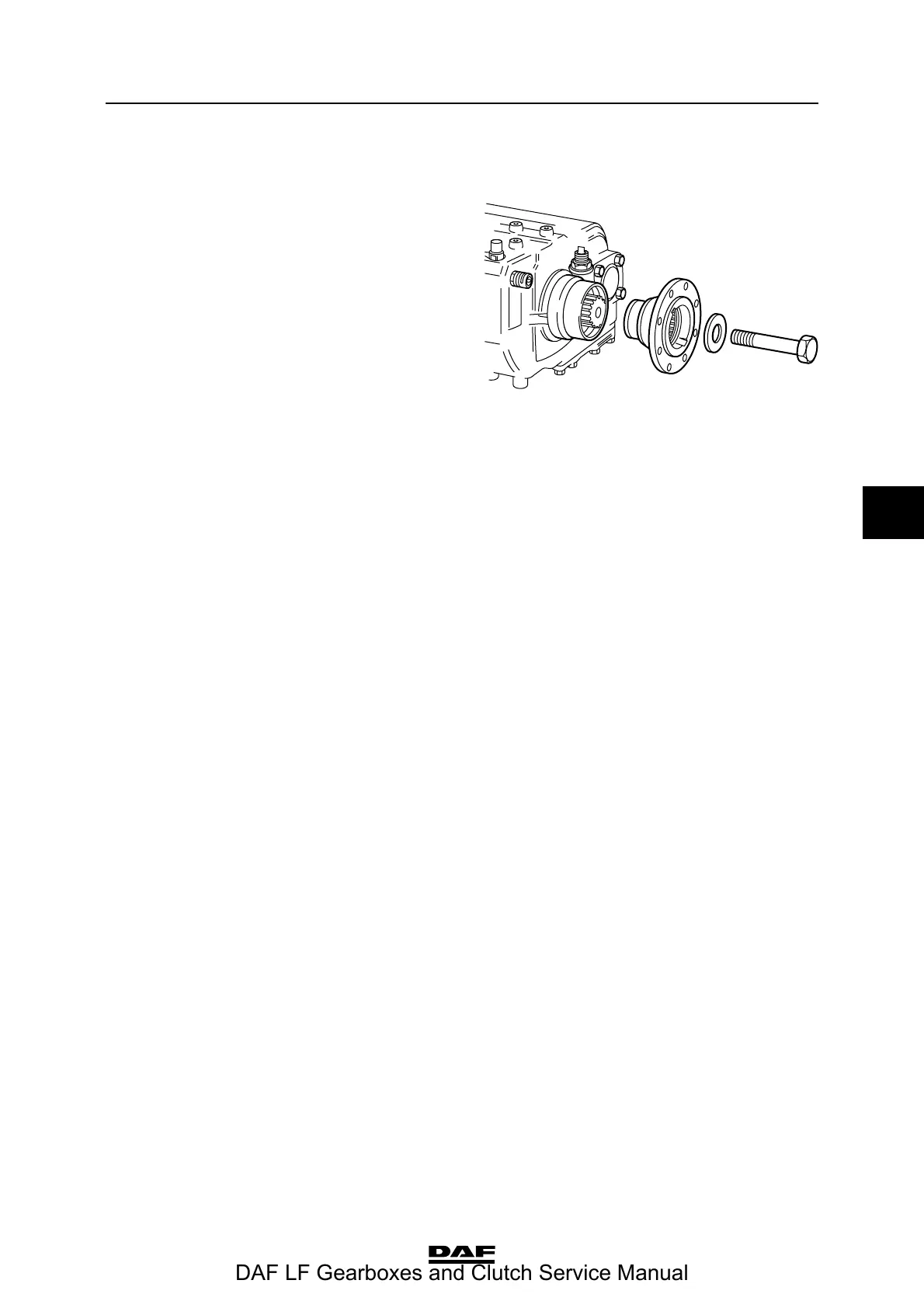

4.3 REMOVAL AND INSTALLATION, DRIVE FLANGE
Removing the drive flange
1. Make a reference mark on the prop shaft and
flange.
2. Detach the prop shaft from the flange and
secure it.
3. Fit special tool (DAF no. 0484977) to hold
the flange in place.
4. Remove the attachment bolt and washer.
5. Using special tool (DAF no. 0484978),
remove the drive flange from the shaft.
Installing the drive flange
1. Heat the drive flange to a temperature of
max. 120″C.
2. Oil the output shaft lightly and slide the drive
flange over the shaft in its correct position.
3. Fit the special tool (DAF no. 0484977) onto
the drive flange.
4. Tighten the attachment bolt to the specified
torque. See "Technical data".
5. Fit the prop shaft. Tighten the attachment
bolts to the specified torque. See "Technical
data".
V3 00 416
DAF LF Gearboxes and Clutch Service Manual
