3.3 INSPECTION AND ADJUSTMENT, SECONDARY SHAFT AXIAL PLAY
Inspection and adjustment, secondary shaft
axial play
1. Press the outermost bearing race uniformly
so that the bearing is free of play. Rotate the
secondary shaft constantly while pressing,
so that the bearing gets set.

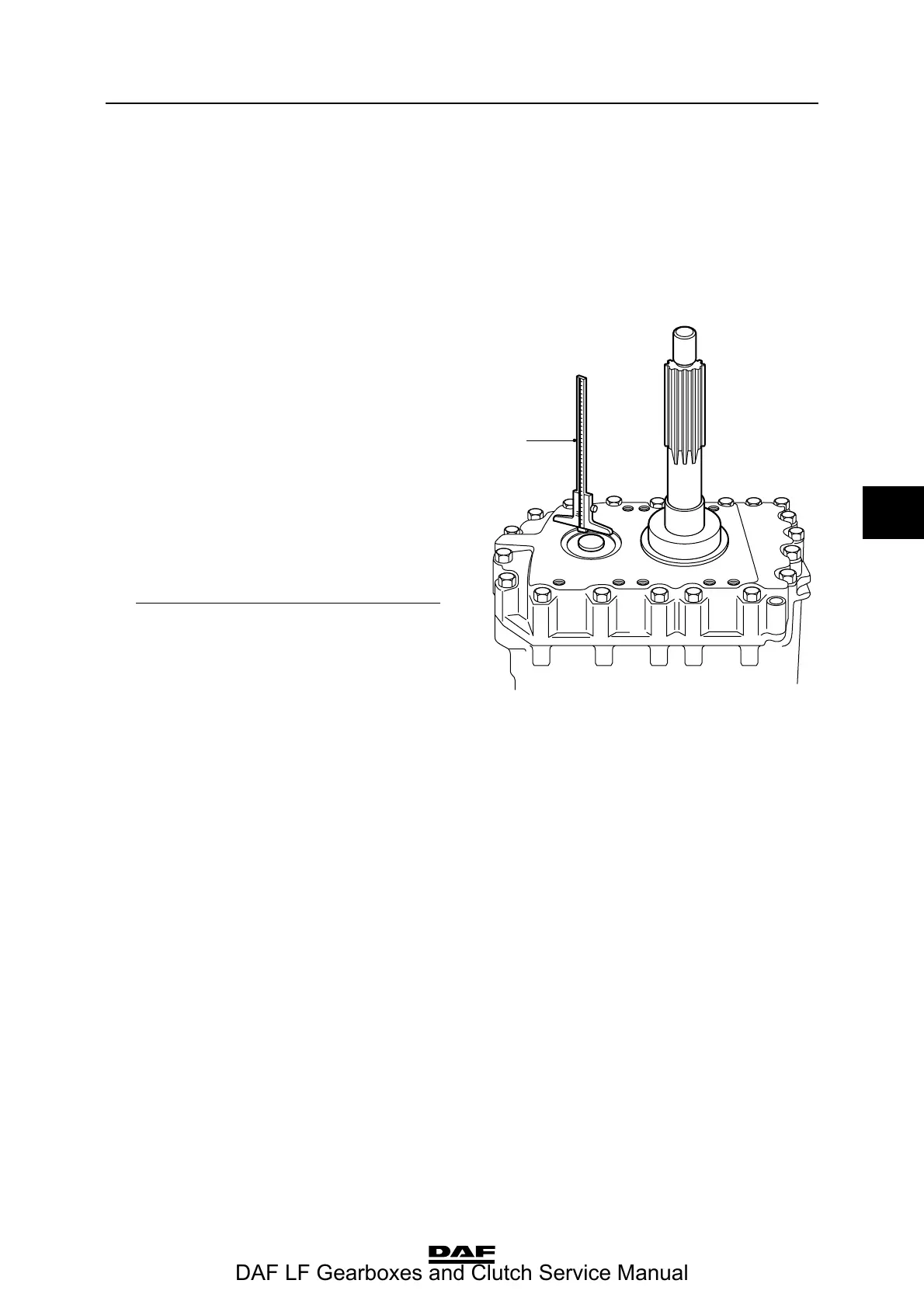

2. Use a depth gauge to determine the distance
between the outer bearing race and the
gearbox housing (A).
3. Compare the measured value with the
specified permissible value. See "Technical
data".
4. If necessary, adjust the axial play by means
of another adjusting ring.
5. Calculate the play for the correct size of the
adjusting ring as follows:
V3 00 402
A
Distance A 2.95 mm
Gasket thickness +0.40 mm
Play (0 - 0.1) - 0.05 mm
Required adjusting ring = 3.30 ≥ 0.05 mm
