ZF 6S-850 GEARBOX
4-8
©
200508
Removal and installation
5
ΛΦ45/55 series
3
4.6 REMOVAL AND INSTALLATION, SELECTOR SHAFT OIL SEAL
LHD model
Removing selector shaft oil seal

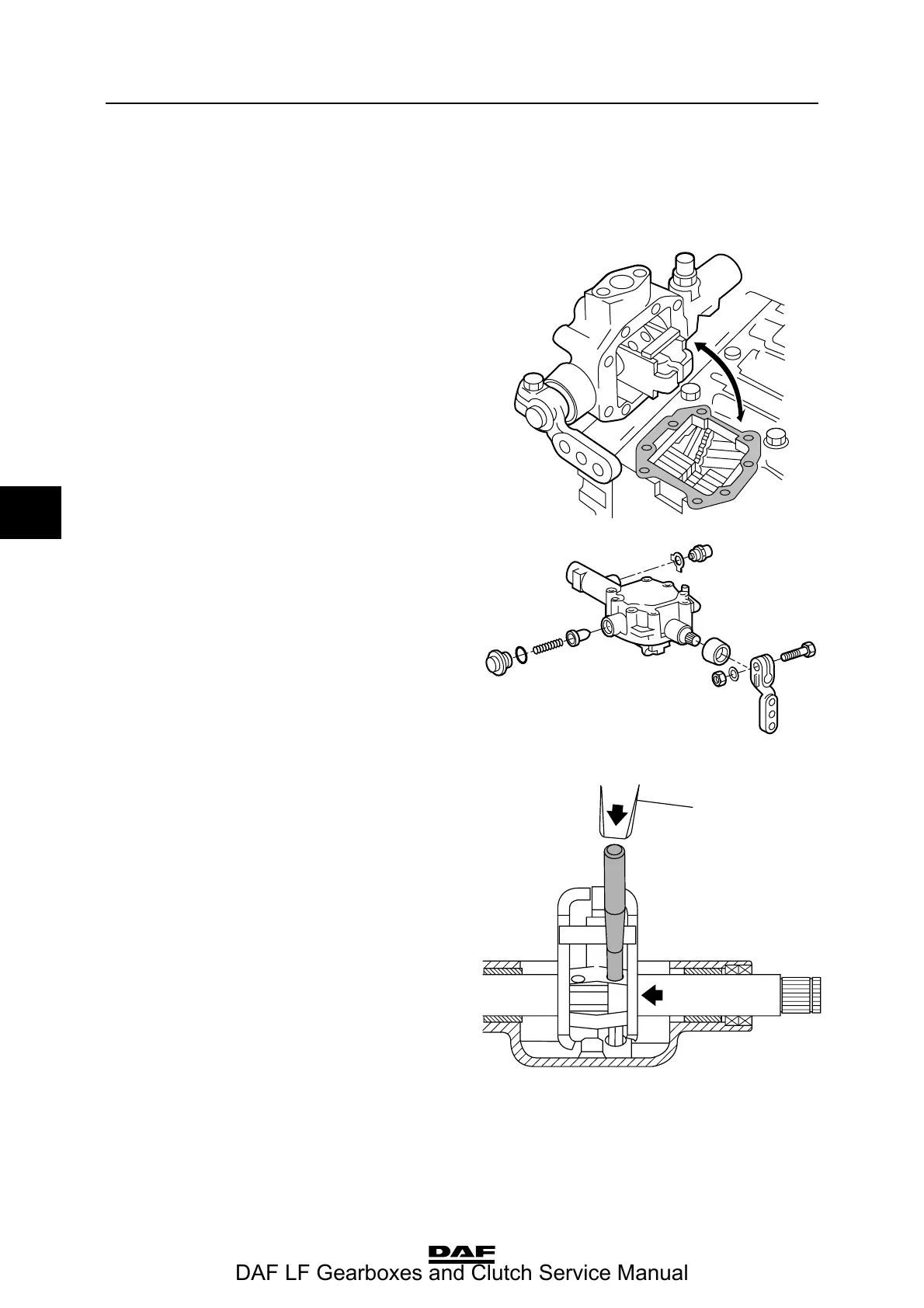

1. Mark the gearbox lever relative to the
selector shaft and remove the control lever
with the gearbox control. If necessary,
disconnect the torque rod.
2. Remove the selector shaft housing
attachment bolts and remove the selector
shaft housing assembly from the gearbox.
Seal the gearbox opening, so that no
dirt can enter.
3. Remove the locking pin and control stop
from the selector shaft housing.
4. Drive the two spring pins out of the selector
fingers. Turn the selector fingers so that the
spring pins can be driven into a slot in the
cover.
5. Remove the circlip and the springs from the
rear of the cover. Then remove the shaft and
the selector fingers from the cover.
V3 00 398
}
V3 00 399
W 3 03 052
