PNEUMATIC GEARBOX CONTROL
ΛΦ45/55 series
3
3

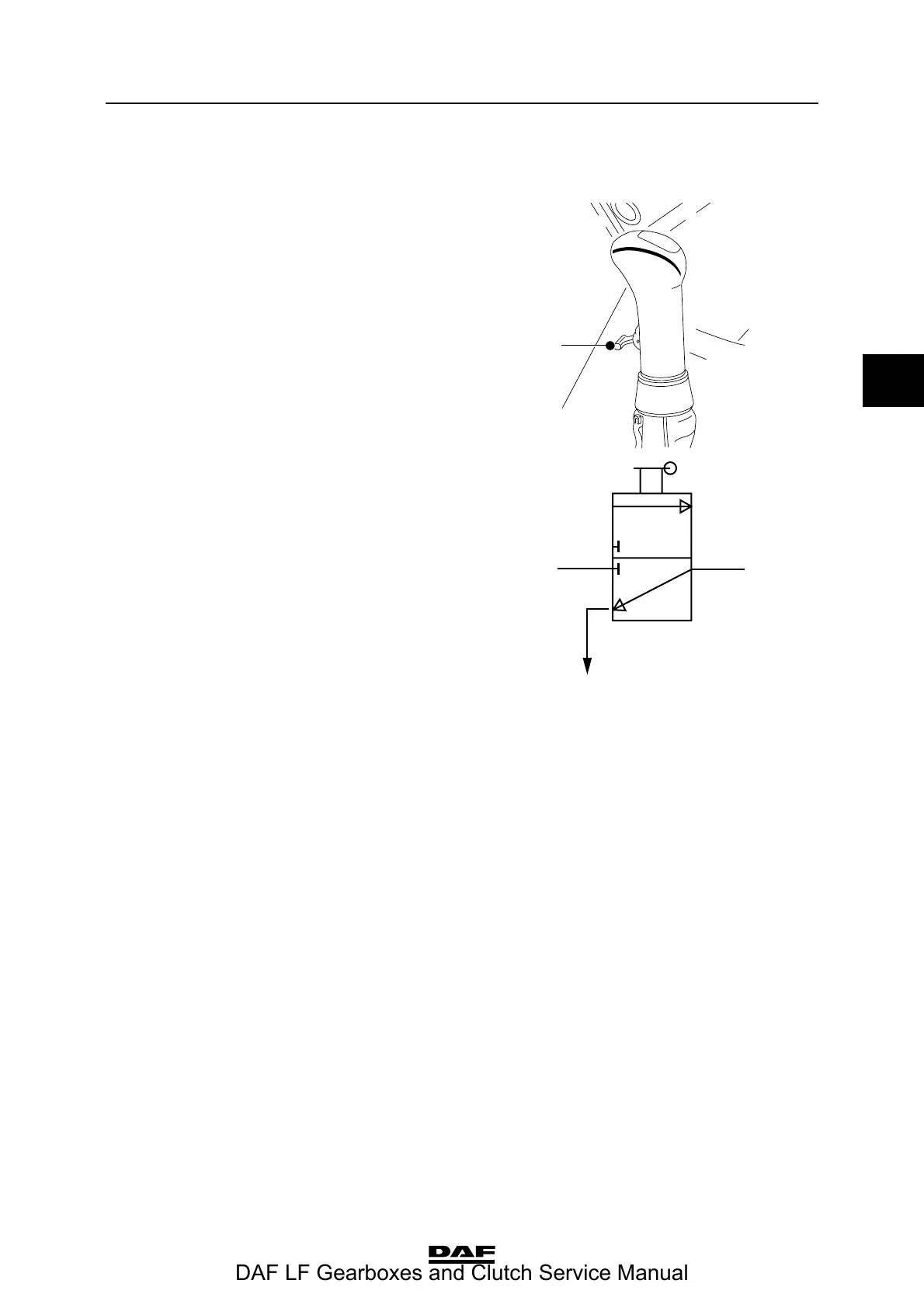

2.2 GEAR LEVER SELECTOR VALVE
Changing to the low or high speed range is done
with switch (A) on the ball of the gear lever.
When the switch is facing down it means that the
low speed range has been or is being engaged.
When the switch is facing up the high speed
range has been or is being engaged.
Pre-selection is possible. A particular range is
switched only when the gear lever is moved
through the neutral position.
The pressure on connection 1 is the system
pressure. When the switch is operated a
pneumatic command will be sent from connection
21 to the electropneumatic downshift protection
valve.
A
V3 00 562
1
21
V3 00 477
