PNEUMATIC GEARBOX CONTROL
2-2
©
200508
Description of components
3
ΛΦ45/55 series
3

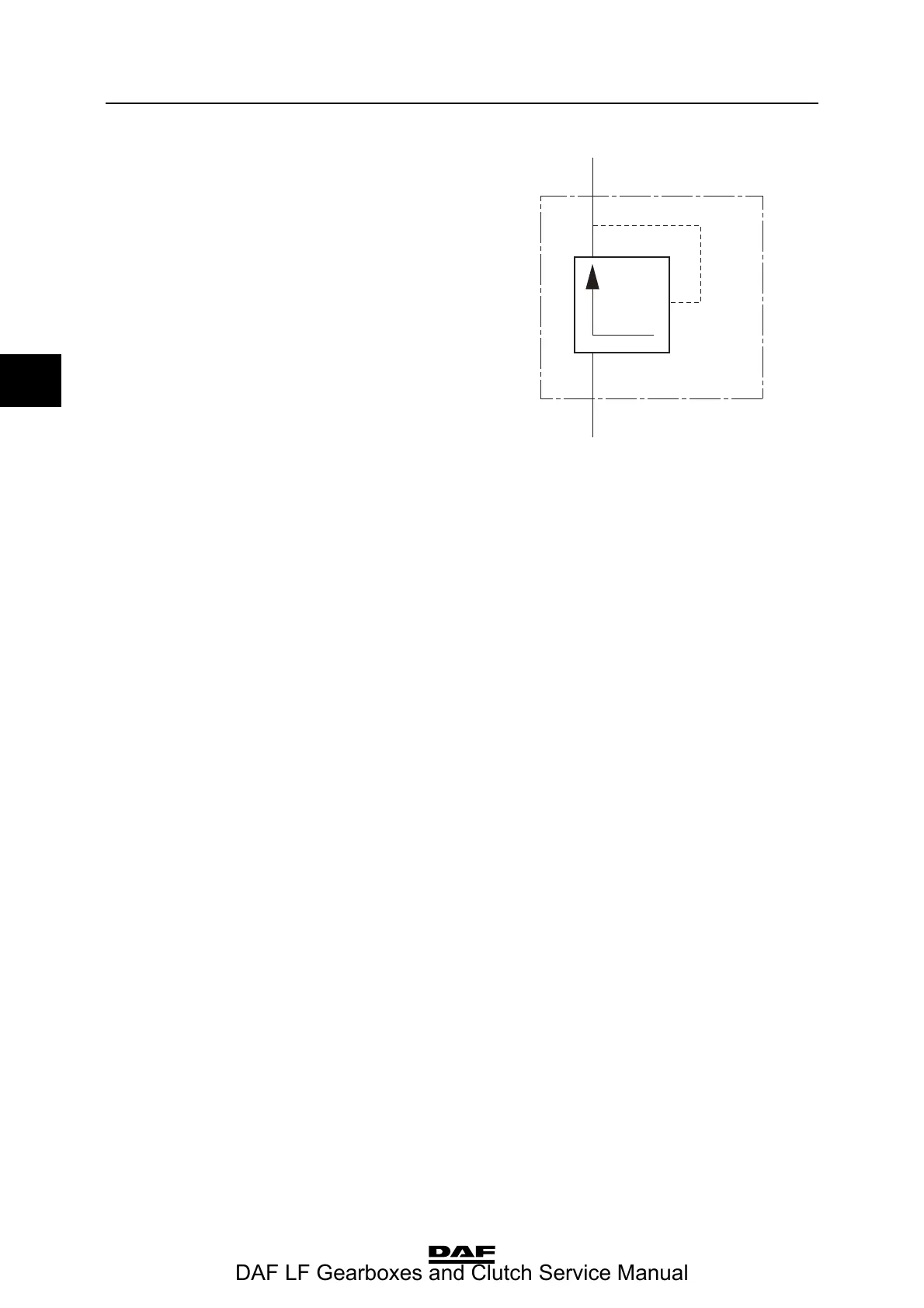

The full vehicle supply pressure from circuit four
of the brake system must pass through the air
filter.
The supply pressure goes through the bore (1) in
the valve and will force the piston down against
the spring pressure.
The spring cannot be adjusted.
The system pressure (see "Technical data") goes
via connection point (2) to the range group
operating switch and the neutral position valve.
2
1
V302003
