Inspection and adjustment
ALLISON 1000 & 2000 AUTOMATIC GEARBOXES
ΛΦ45/55 series
3
7
3.2 INSPECTING AND ADJUSTING SELECTOR CABLE
Inspecting selector cable
1. Check that the selector cable has been fitted
to the selector arm so that the connecting pin
can move freely in every gear. If necessary,
adjust the selector cable.
Adjusting selector cable
1. Chock the wheels so that the vehicle cannot
roll.
2. Position the selector lever in neutral.
3. Remove the selector cable (2) from the
selector arm (1), if applicable.
4. Unscrew the lock nut (3) from the connecting
pin (4).

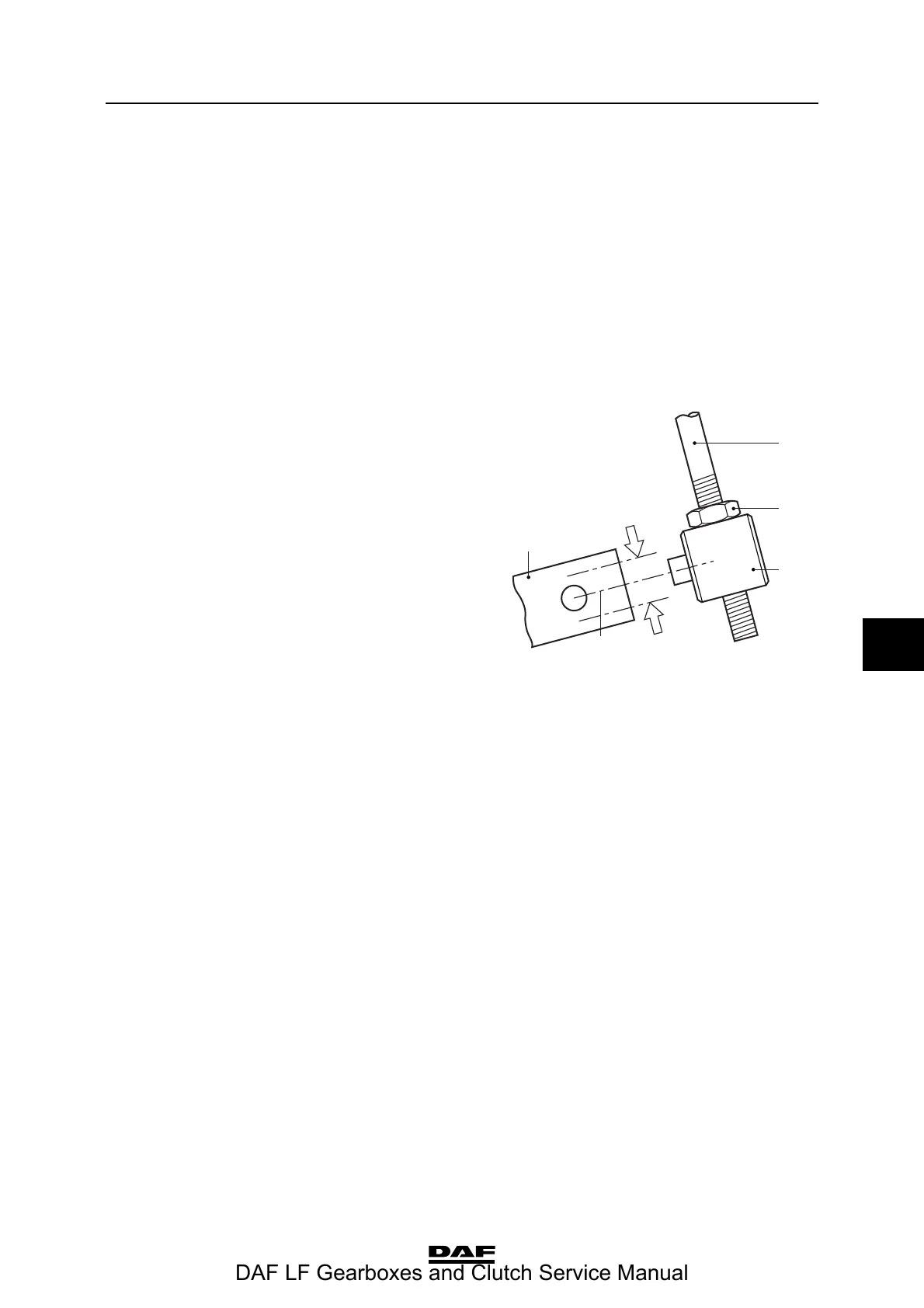

5. Determine the central position (C) of the
connecting pin by first pushing the selector
cable in (A) and then pulling it out (B). Mark
the limit positions of the connecting pin.
6. Move the connecting pin so that when in the
central position (C) it is level with the bore in
the selector arm.
7. Tighten the lock nut of the connecting pin.
8. Install the connecting pin in the selector arm
bore and tighten the lock nut to the specified
torque. See "Technical data".
9. Check in every gear that the positions of the
selector lever in the cab correspond
precisely to the selected gear.
2
1
A
BC
3
4
V3 00 483
