3. DESCRIPTION OF COMPONENTS

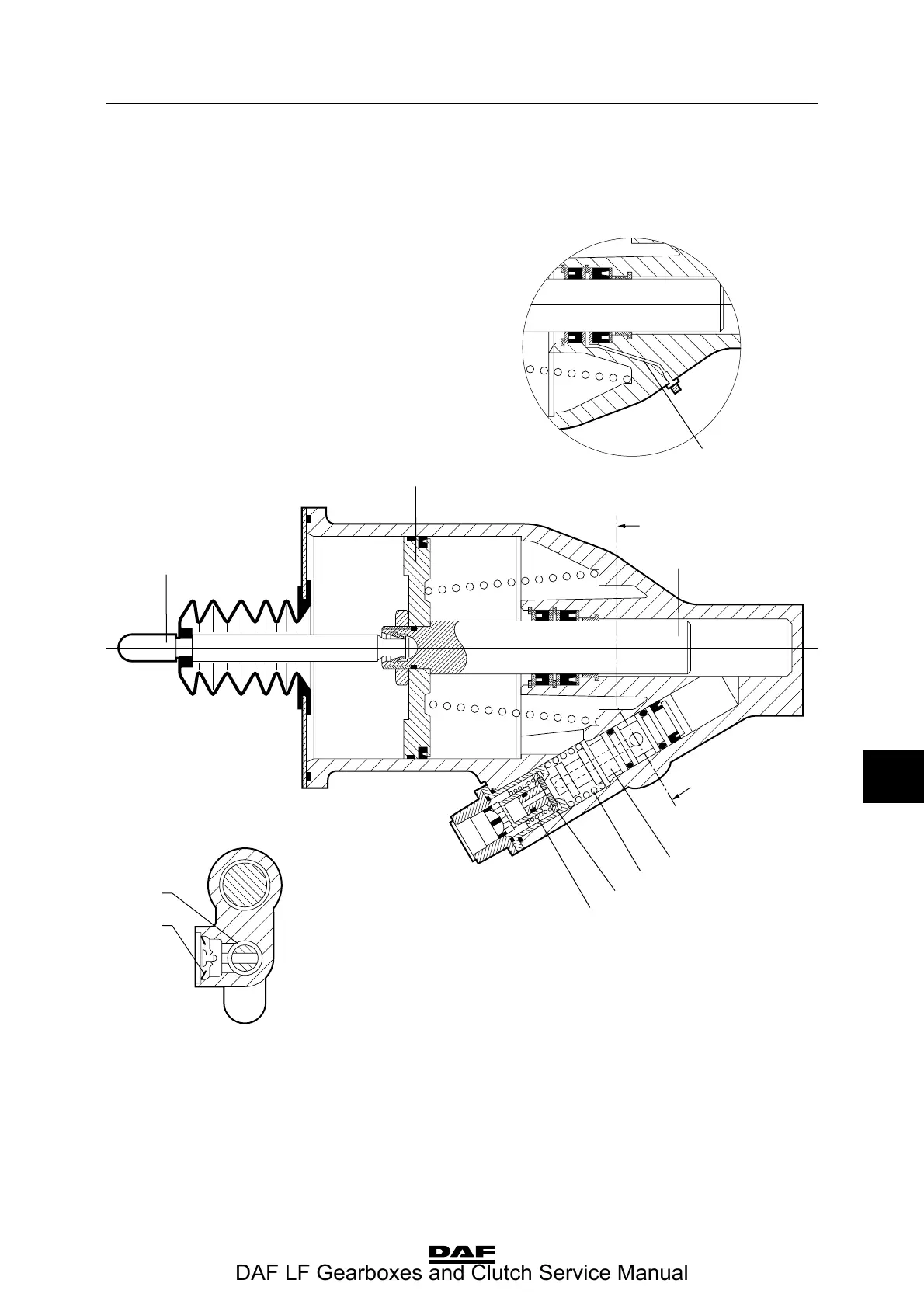

3.1 CLUTCH SERVO
Declutching
Depressing the clutch pedal results in a build-up
of hydraulic pressure.
This causes the servo piston (1) to push the air
valve (2) away from the valve seat, against the
force of the springs (3) and (7).
