Inspection and adjustment
EATON FS/6309A GEARBOX
ΛΦ45/55 series
3
6
2. INSPECTION AND ADJUSTMENT
2.1 CHECKING GEARBOX OIL LEVEL
To prevent skin injury, avoid
unnecessary contact with the
drained oil.
1. Position the vehicle on a level surface.
2. Wait for some minutes to allow the oil to flow
back.

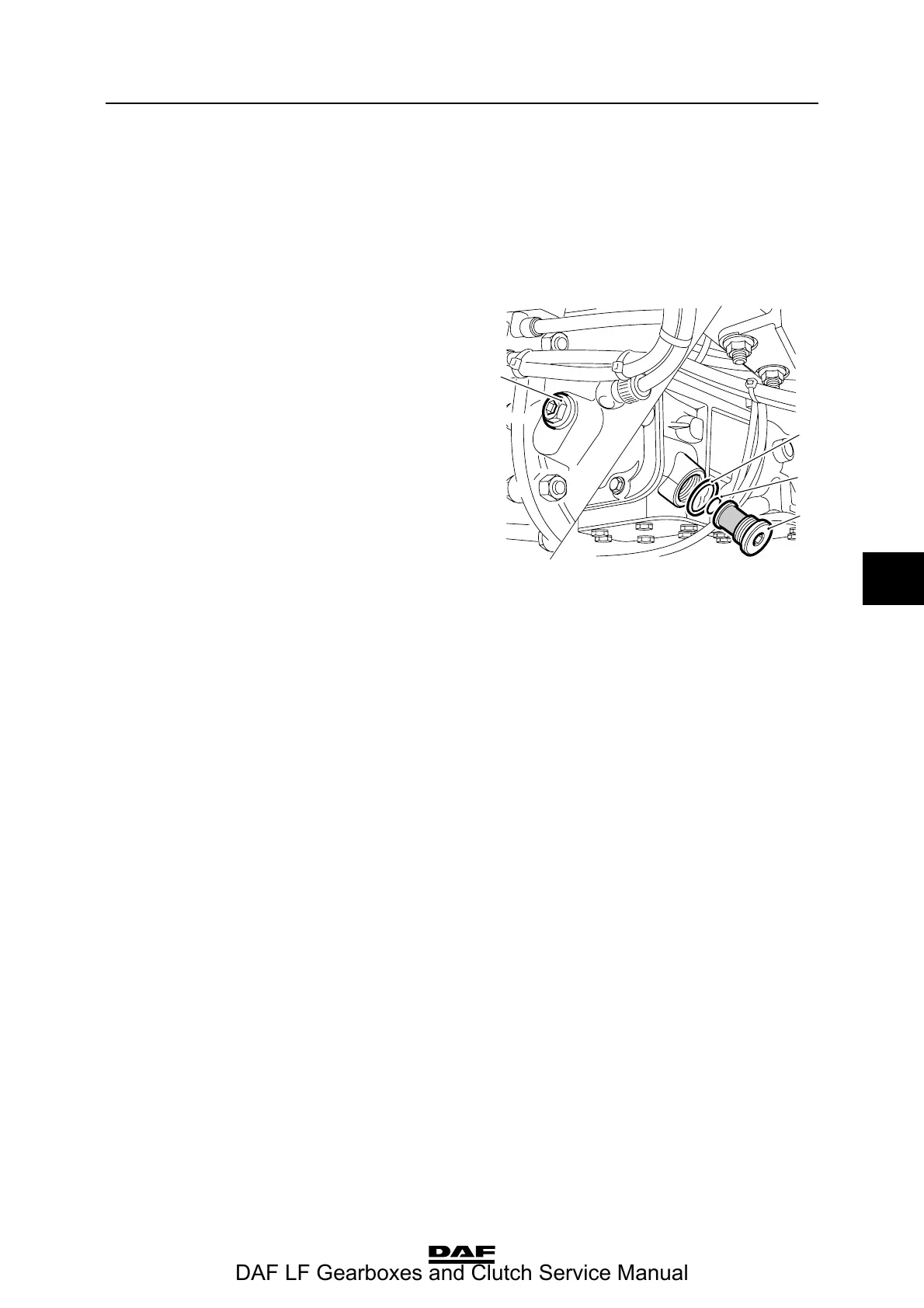

3. Remove the level check/filler plug (1) and
check the oil level.
4. The oil level must reach the rim of the level
check/filler opening (1).
5. After checking the oil level, tighten the level
check plug to the specified torque. See
"Technical data".
}
1
2
3
4
V3 00 376
DAF LF Gearboxes and Clutch Service Manual
