DAF LF45 Series Service Manual

CLUTCH
2-2
©
200508
General
9
ΛΦ45/55 series
3

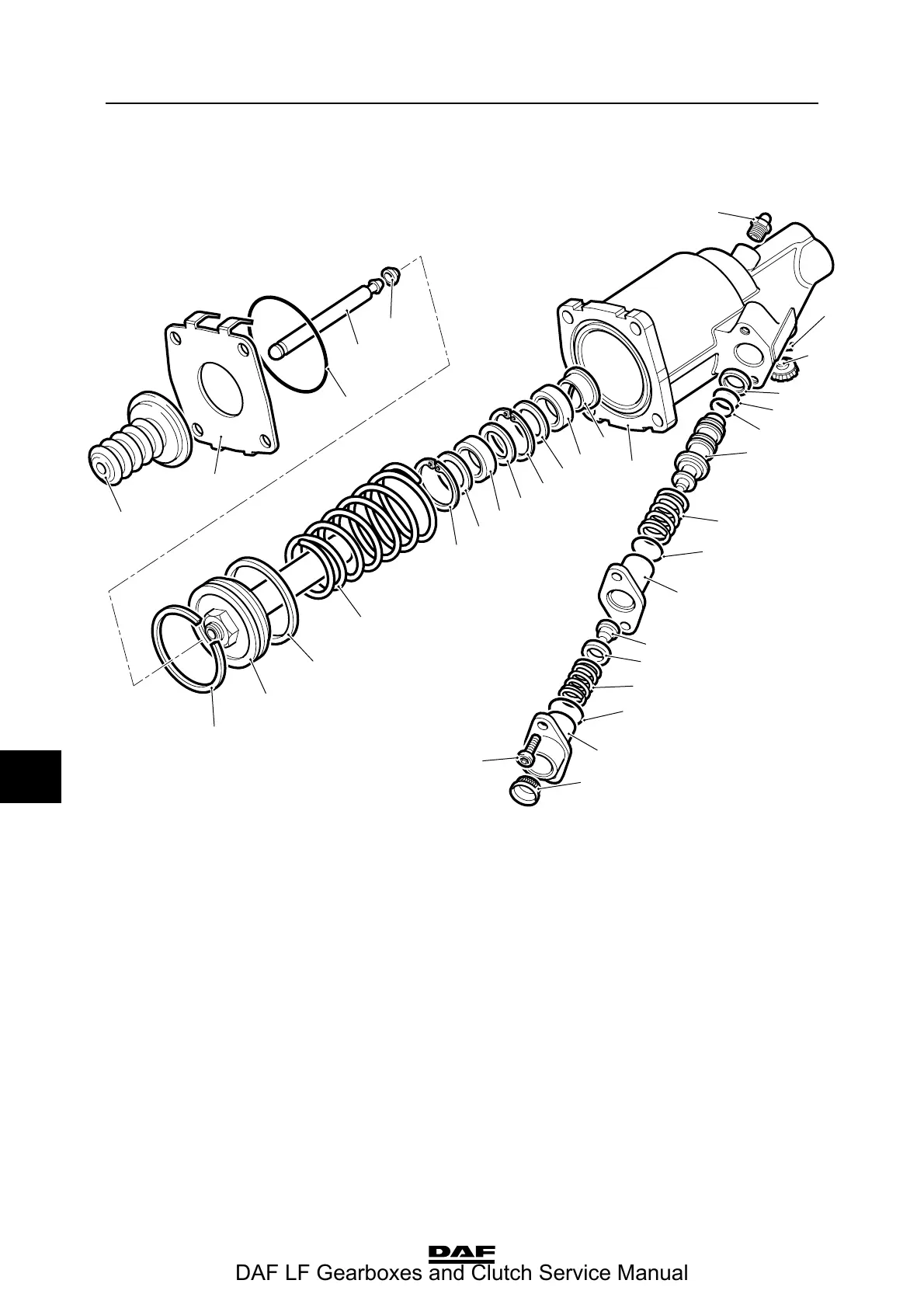

2.2 OVERVIEW DRAWING, CLUTCH SERVO
V3 00 436
17
31
16
19
18
20
21
22
23
24
25
26
27
28
29
30
32
2
1
6
7
8
9
10
11
12
11
10
11
13
14
15
3
4
5
1. Rubber protective bellows 17. Vent opening
2. End-plate 18. Blow-off nipple
3. O-ring 19. Piston seal
4. Push rod 20. O-ring
5. Attachment ring for push rod 21. O-ring
6. Split seal 22. Piston
7. Piston 23. Pressure spring
8. Piston seal 24. O-ring
9. Conical spring 25. Spring seat housing
10. Circlip 26. Inlet valve
11. Washer 27. Spring seat
12. Seal, hydraulic part, front 28. Reset spring
13. Seal, hydraulic part, rear 29. O-ring
14. Split bearing 30. Connector housing
15. Booster housing 31. Allen screw
16. Bleed nipple 32. Air filter
