Eaton FS/6309A gearbox
TECHNICAL DATA
ΛΦ45/55 series
3
0
5. EATON FS/6309A GEARBOX
5.1 GENERAL
Gearbox type
Each gearbox has a type plate attached to it,
indicating the type of gearbox. You can also find
this data on the identity card for the vehicle
concerned.

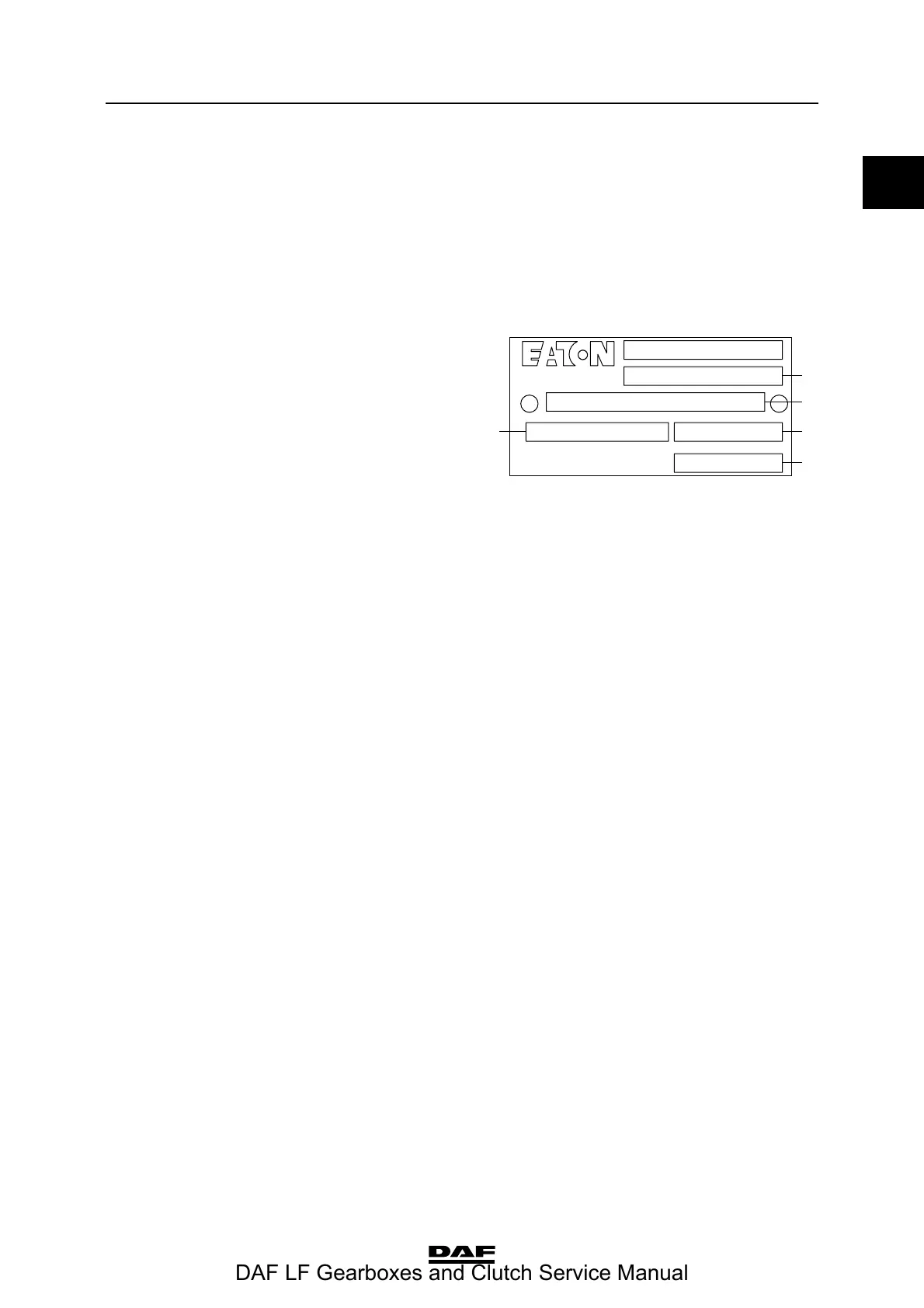

Eaton gearbox type plate
The Eaton specification number is unique to each
customer and gives detailed information on the
development level of the gearbox. The number
must be quoted whenever replacement parts are
ordered.
Secondary shaft pre-load
Sealant
Filter/governor
V300378
2
3
41
5
1. Type of gearbox
2. Specification no. Eaton
3. DAF article Eaton code
4. Serial no. Eaton
5. Production date code
Input shaft play of adjusting rings: Colour coding:
3.70 mm Red, green, white
3.75 mm Yellow, green, blue
3.80 mm Blue, green, white
3.85 mm Red, green, yellow
3.90 mm Green, green, white
3.95 mm Red, green, red
New bearings 0.075 - 0.125 mm
Original bearings 0.000 - 0.050 mm
Gearbox housing front cover contact surfaces Loctite 518
Input shaft Lithium-based grease, class NLGI 3
Governed pressure 5.3 - 5.7 bar
