ALLISON MD 3060 AUTOMATIC GEARBOX
5-2
©
200508
Draining and filling
8
ΛΦ45/55 series
3
Filling gearbox
1. Clean the drain plug (1), fit a new sealing ring
and tighten the plug to the specified torque;
see "Technical data".
2. Fit the oil filters (2). See "Removal and
installation".
3. Fill the gearbox through the dipstick holder
with the specified quantity of oil; see
"Technical data".

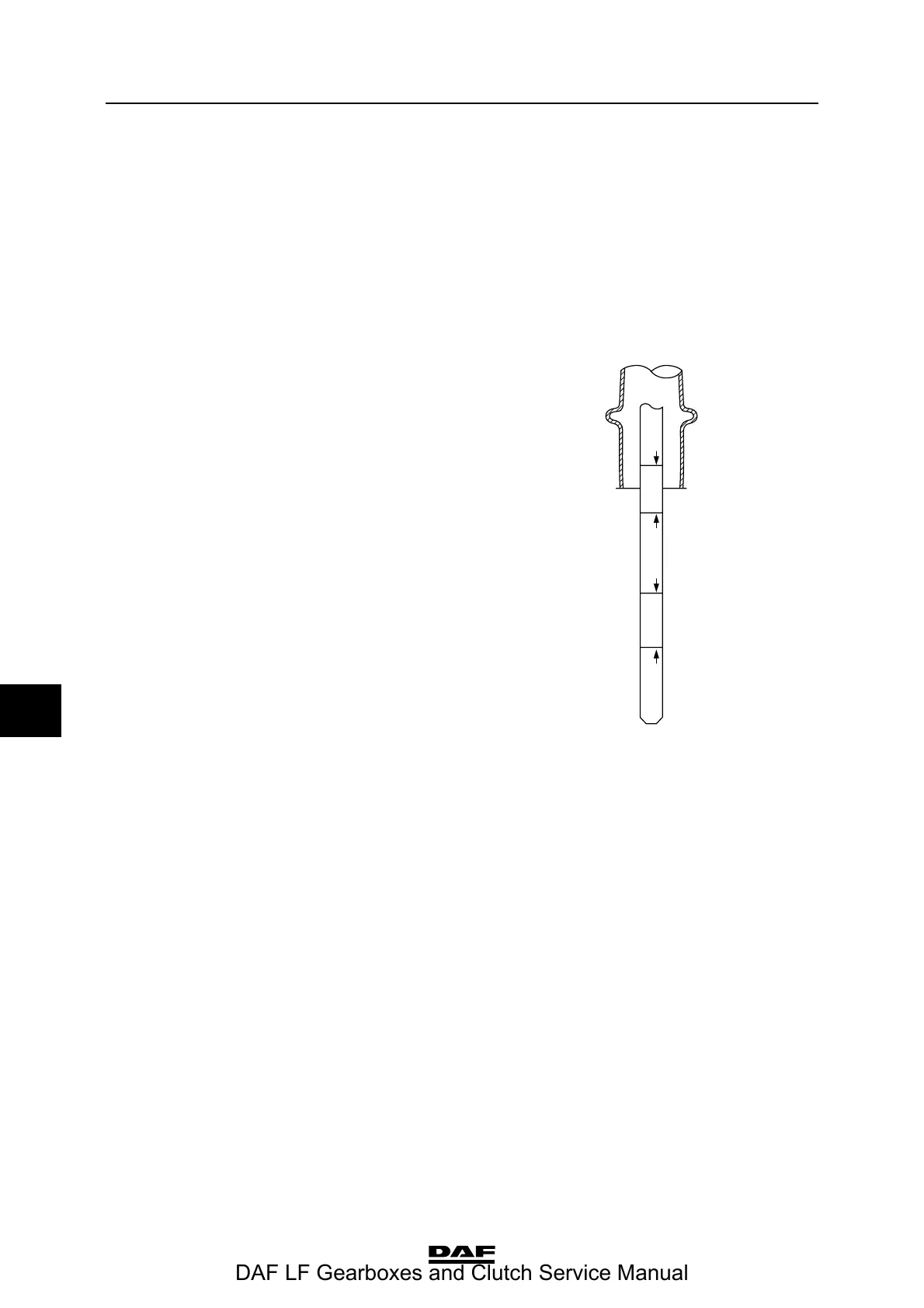

4. Check that the oil level reaches the "Cold
full" mark.
Note:
To take the dipstick out of the holder, the
sealing cap must be held while the dipstick is
turned anti-clockwise.
5. Check the oil level using the selector keypad.
See "Inspection and adjustment".
HOT
FULL
COLD
FULL
HOT
ADD
COLD
ADD
W 3 03 099
