PROP SHAFTS
4-4
©
200508
Demounting and mounting
10
ΛΦ45/55 series
3
5. Continue to press the bearing until a Seeger
ring can be fitted on the side being pressed.
Fit the Seeger ring and press the opposite
bearing further into the fork. Again, the
Seeger ring can now be fitted.
6. Fit the sealing rings in their proper positions
on the prop shaft bearings and lubricate
them lightly so that the needles remain in
place.

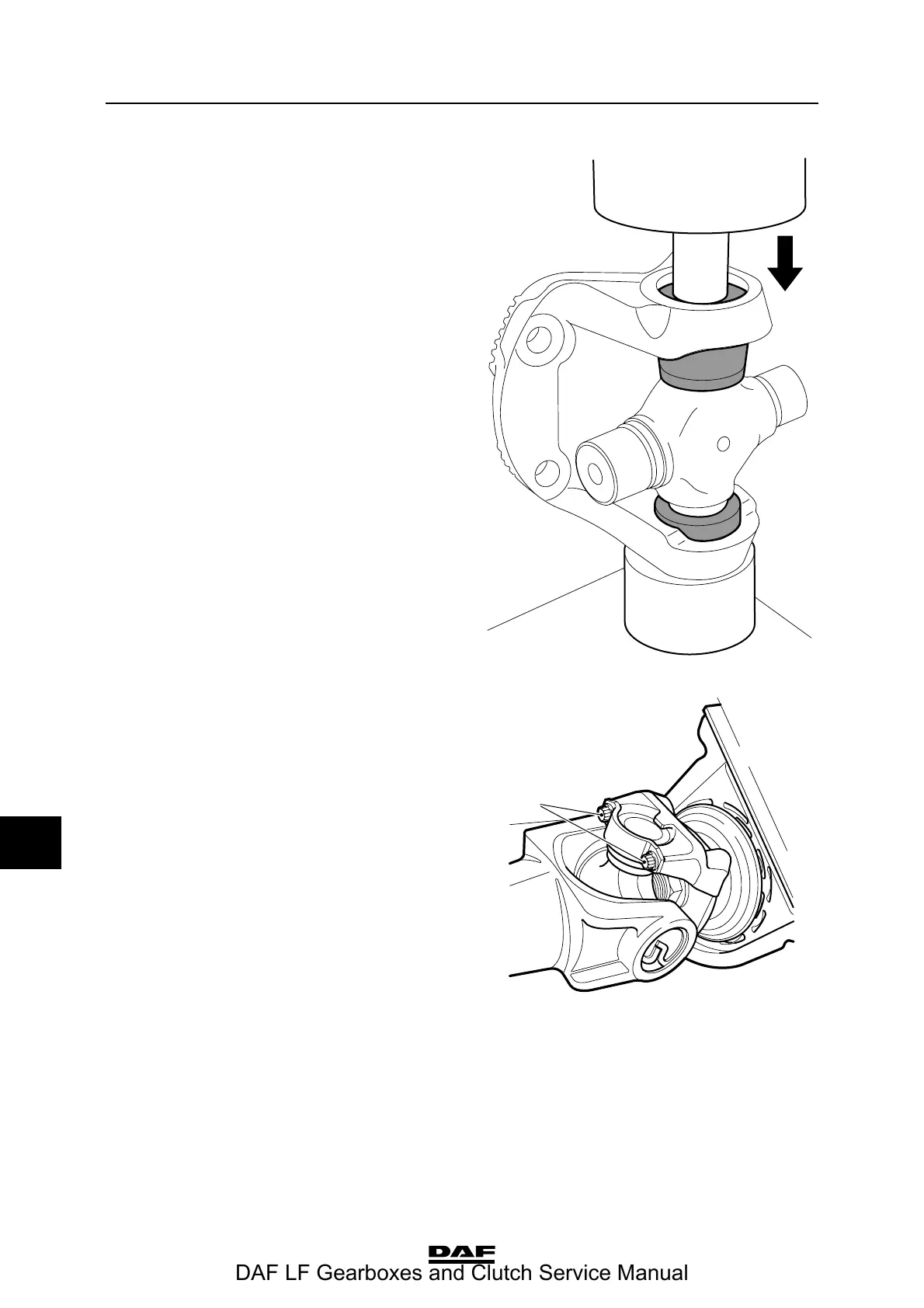

7. Press one bearing partly into the prop shaft.
8. Slide the spider a little into the fitted bearing
and place everything on a bush underneath
a press. The opposite bearing can now be
pressed into the fork, the spider serving as a
guide. During the pressing action, the spider
must be able to move freely.
9. Continue to press the bearing until a Seeger
ring can be fitted on the side being pressed.
Fit the Seeger ring and press the opposite
bearing further into the fork. Again, the
Seeger ring can now be fitted.
10. Fit the circlips and the attachment bolts of the
clamping pieces (1).
11. Install the prop shaft and/or intermediate
shaft.
