PROP SHAFTS
4-8
©
200508
Demounting and mounting
10
ΛΦ45/55 series
3

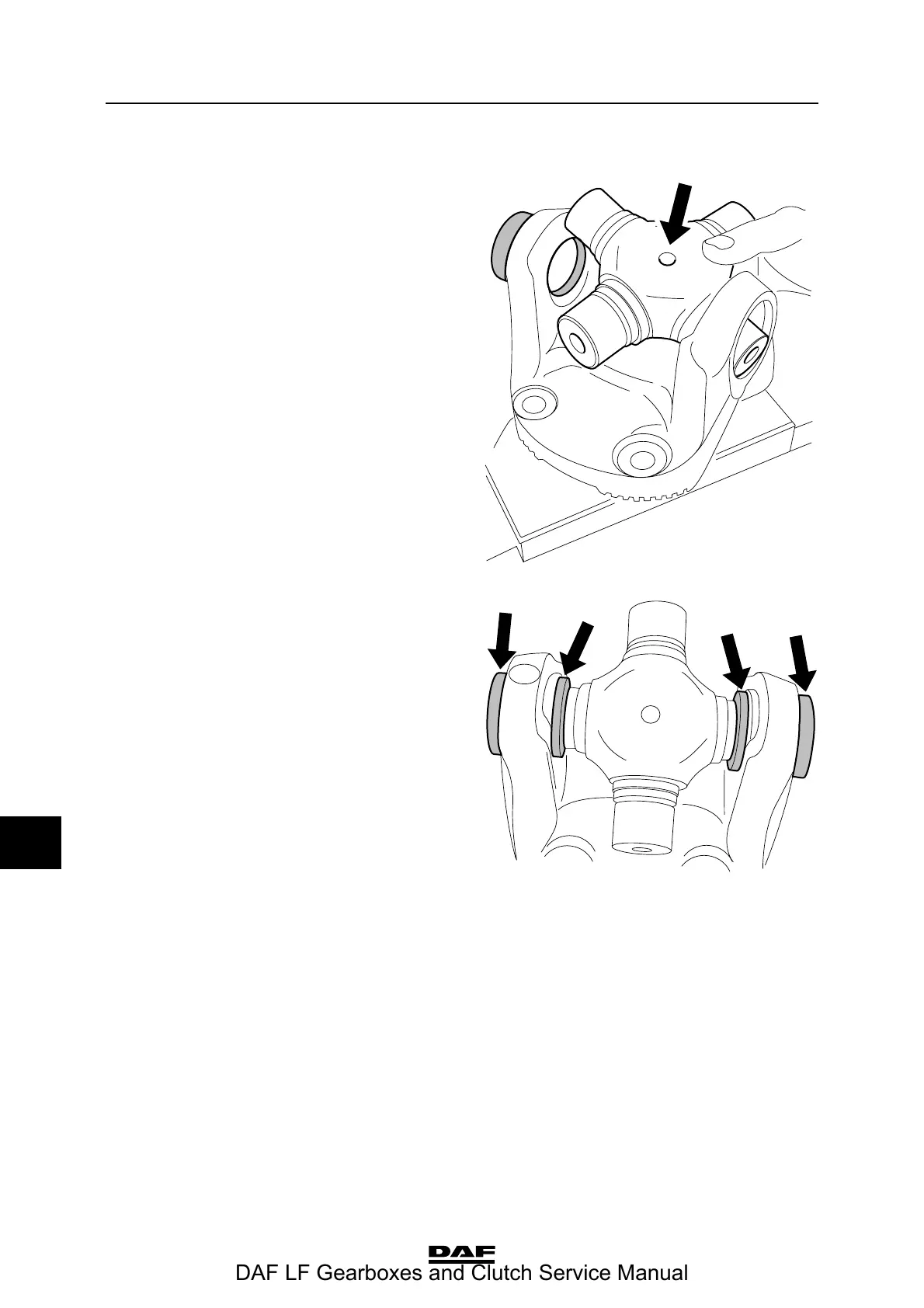

3. Tip the spider into the drive flange.
Note:
Maintenance-free spiders do not have an
assembly direction. In the case of spiders
fitted with lubricating nipples, hole A for the
lubricating nipple must point towards the
shaft.
4. Slide the spider a little into the installed
bearing and place everything on a bush
underneath a press. The opposite bearing
can now be pressed into the fork, the spider
serving as a guide. During the pressing
action, the spider must be able to move
freely.
A
W306014-2
W306017-2
