200508 3-5
Removal and installation
MECHANICAL GEARBOX CONTROL
ΛΦ45/55 series
3
2

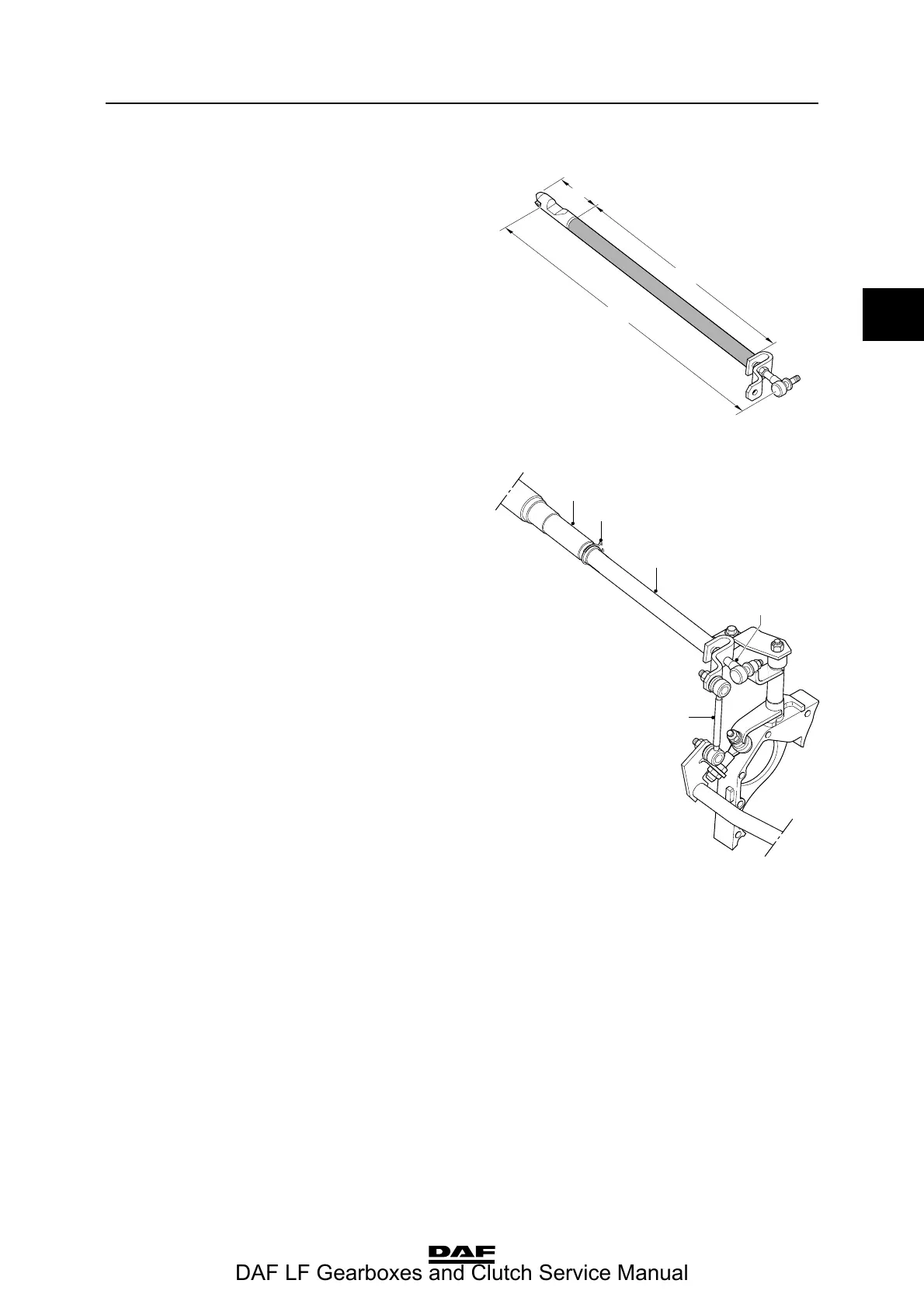

Installing control rod underneath the cab
1. Adjust the length (A) of the control rod (3).
See "Technical data".
2. Clean part (B) of the control rod and remove
any grease.
3. Apply the specified lubricant lightly to section
(C) of the control rod. See "Technical data".
4. Fit the control rod (3) into the telescopic
control rod (1) and fit the retainer clip (2).
5. Tighten the attachment nuts of the ball joint
(4) and the torque rod to the specified torque.
See "Technical data".
6. Check the functioning of the operating
mechanism. See "Inspection and
adjustment".
V3 00 745
A
C
B
1
2
3
4
5
V3 00 573
