17-34 HIPERFACE Baud rat e
Option:
600 [0]
1200 [1]
2400 [2]
4800 [3]
*
9600 [4]
19200 [5]
38400 [6]
Function:
Select the b aud rate of the attached encoder.
This parameter cannot be adjusted while
the motor is running.
" 17-5* Resolver Interface
Parameter group 17-5* is used for setting
parameters for the MCB 103 resolver option.
Usually the resolver feedback is used as motor
feedback from permanent magnet m otors with
par. 1-01 se t to flux with motor feedback.
Resolver parameters cannot be adjusted
while the motor is running.
17-51 Resolver Input Voltage
Range:
4.0 - 8.0 V
*
7.0 V
Function:
Set the input voltage to the resolver. The
voltage is stated as an RMS value.
The value is stated in the data sheet for resolvers.
17-50 Resolver Poles
Range:
2-4
*
2
Function:
Set the number of poles on the resolver.
Most resolvers have 2 po les.
The value is stated in the data sheet for resolvers.
17-52 Res olver Input Frequency
Range:
2.0 - 15.0 k Hz
*
10.0 kHz
Function:
Settheinputfrequencytotheresolver.
The value is stated in the data sheet for resolver
s.
17-53 Resolver Transform ation Ratio
Range:
0.1 - 1.1
*
0.5
Function:
Set the transformation ratio for the resolver.

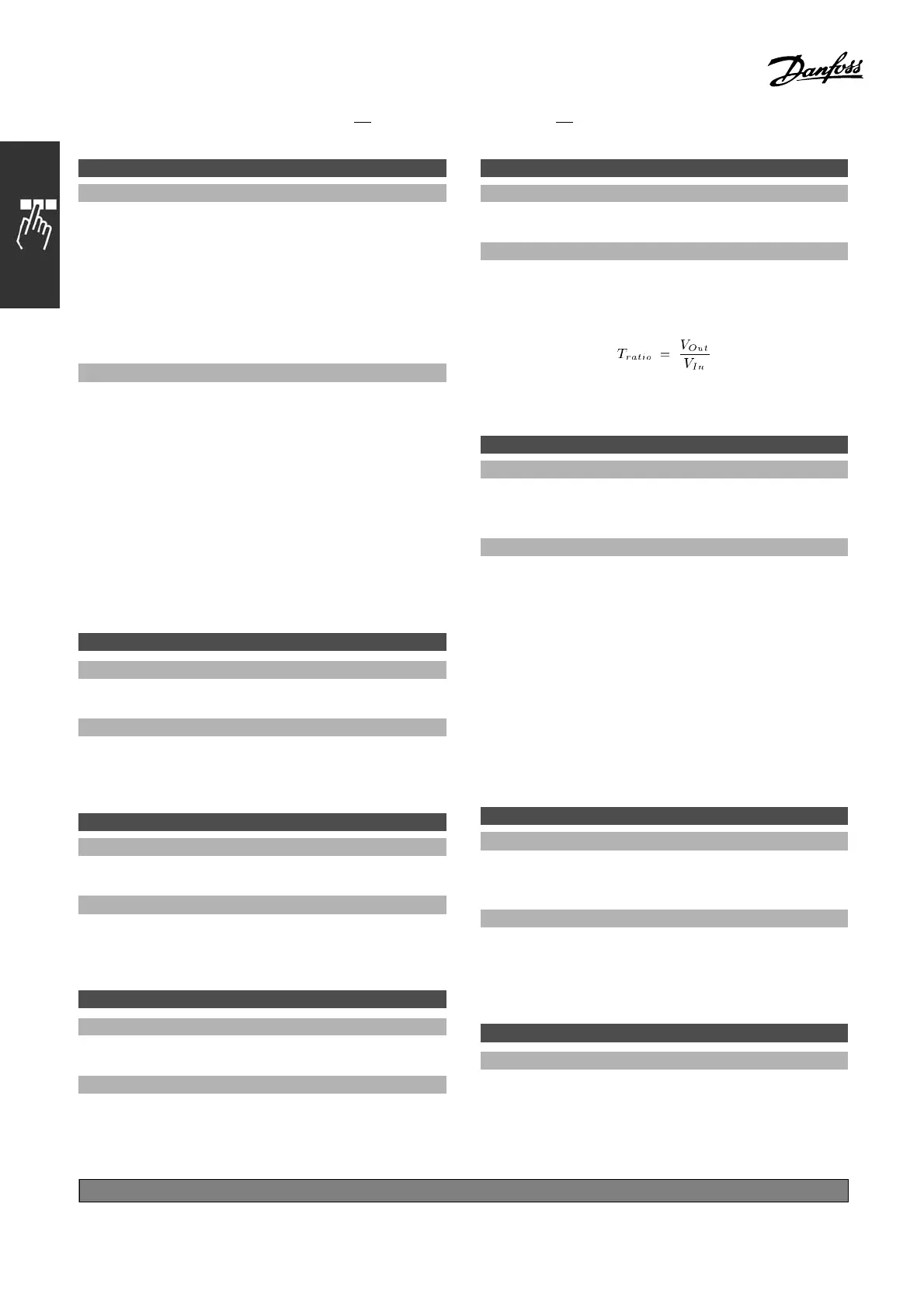

The transformation ration is:
The value i s stated in the data sheet for resolvers.
17-59 Resolver Interface
Option:
*
False [0]
True [1]
Function:
Activate t he M CB 10 3 resolver option when the
resolver parameters are selected.
To avoid damaging resolvers, par. 17-50 – p ar. 17-53
must be adjusted before activating this parameter.
" 17-6* Monitoring and Application
This parameter group is used to select ad dit ional
functions when the MCB 102 encoder option
or MCB 103 resolver option is fitted into the
option slot B as speed feedback.
Monitoring and application parameters cannot be
adjusted while the m otor is running.
17-60 Encoder Positive Direction
Option:
*Clockwise [0]
Counterclockwise [1]
Function:
Change the detected encoder rotation direction
without changing the wiring to the encoder.
This parameter cannot be adjusted while
the motor is running.
17-61 Encoder Signal Monitoring
Option:
Disabled [0]
*
Warning [1]
Trip [2]
*
default setting ()display text []value for use in communication via serial communication port
252
MG.33.B
6.22 - V LT is a registered Danfoss trademark
