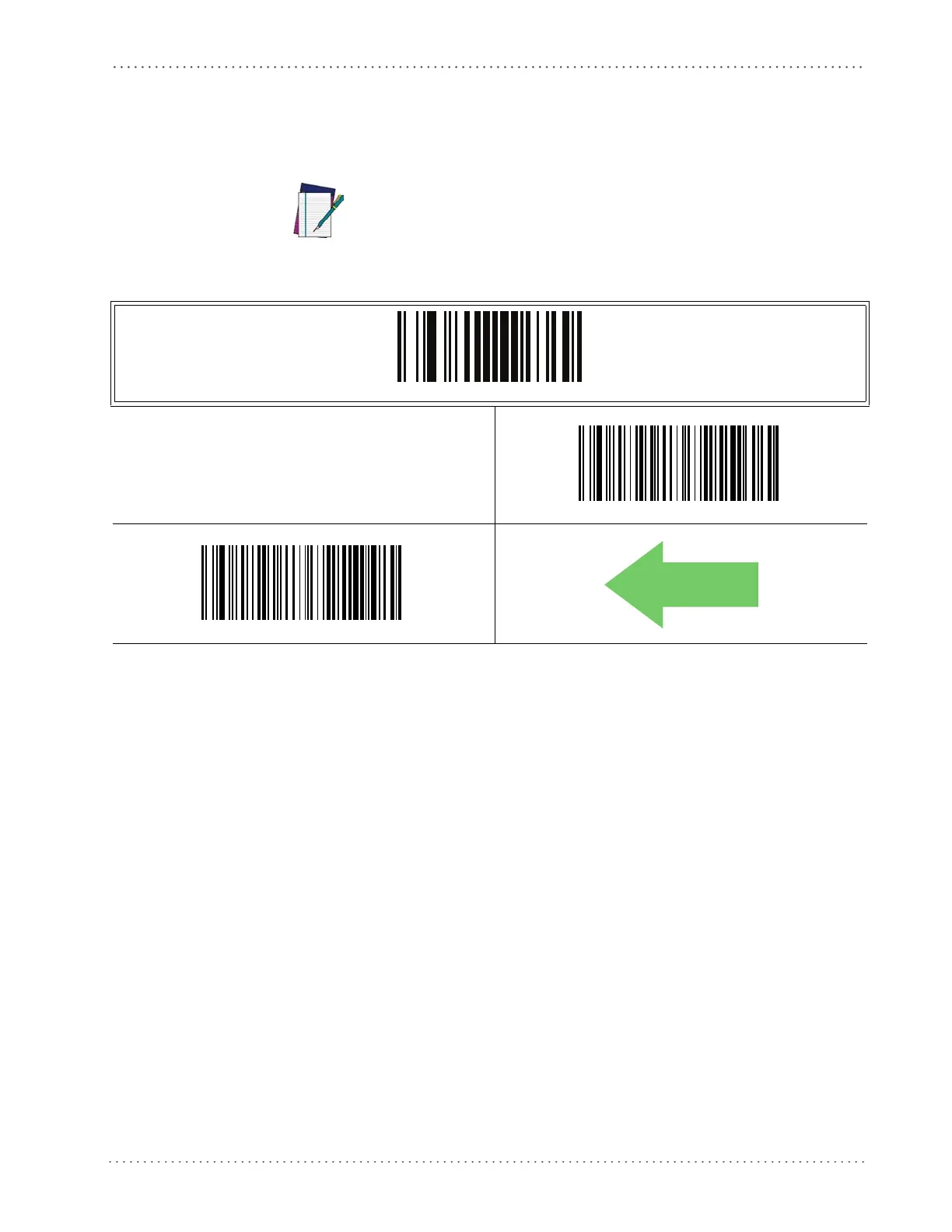

Wand Idle State

Product Reference Guide 125

Wand Idle State

This feature specifies the level of the Wand output signal when the reader is idle.

NOTE

ENTER/EXIT PROGRAMMING MODE

Wand Idle State = Low

Wand Idle State = High

TTL logic levels:

0V

<= Low <= 0.7V

2.4V <= High <= 5.25V

DEFAULT
