UPC-E

Product Reference Guide 181

UPC-E

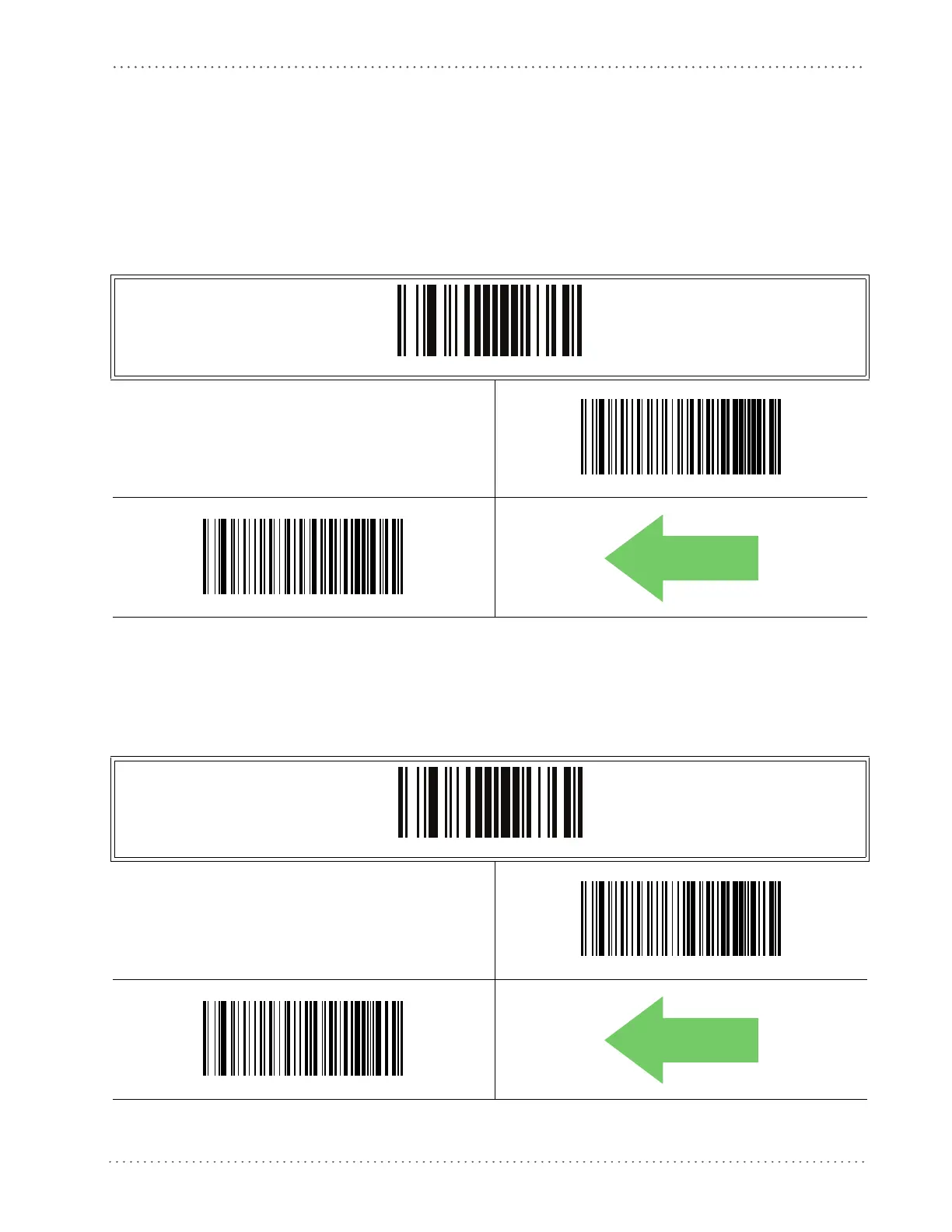

The following options apply to the UPC-E symbology.

UPC-E Enable/Disable

When disabled, the reader will not read UPC-E barcodes.

ENTER/EXIT PROGRAMMING MODE

UPC-E = Disable

UPC-E = Enable

UPC-E Check Character Transmission

Enable this option to transmit the check character along with UPC-E barcode data.

ENTER/EXIT PROGRAMMING MODE

UPC-E Check Character Transmission = Don’t Send

UPC-E Check Character Transmission = Send

DEFAULT
