362 Gryphon™ I GD4100/GM4100

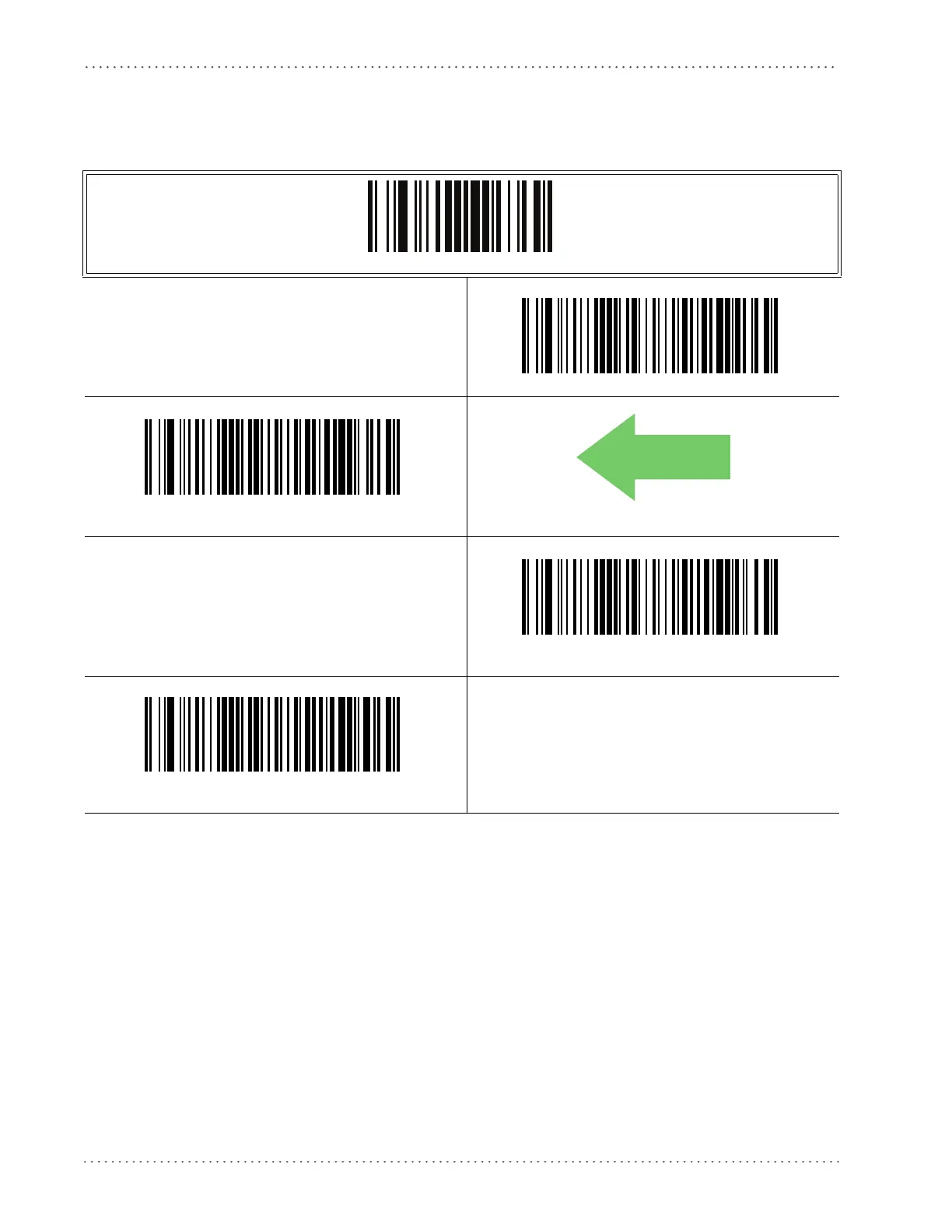

Plessey Check Character Calculation

Enables/Disables calculation and verification of an optional Plessey check character.

ENTER/EXIT PROGRAMMING MODE

Plessey Check Character Calculation = Disable

Plessey Check Character Calculation =

Enable Plessey std. check char. verification

Plessey Check Character Calculation =

Enable Anker check char. verification

Plessey Check Character Calculation =

Enable Plessey std. and Anker check char verification

DEFAULT

Default Chapter3
