Follett 2 of 5

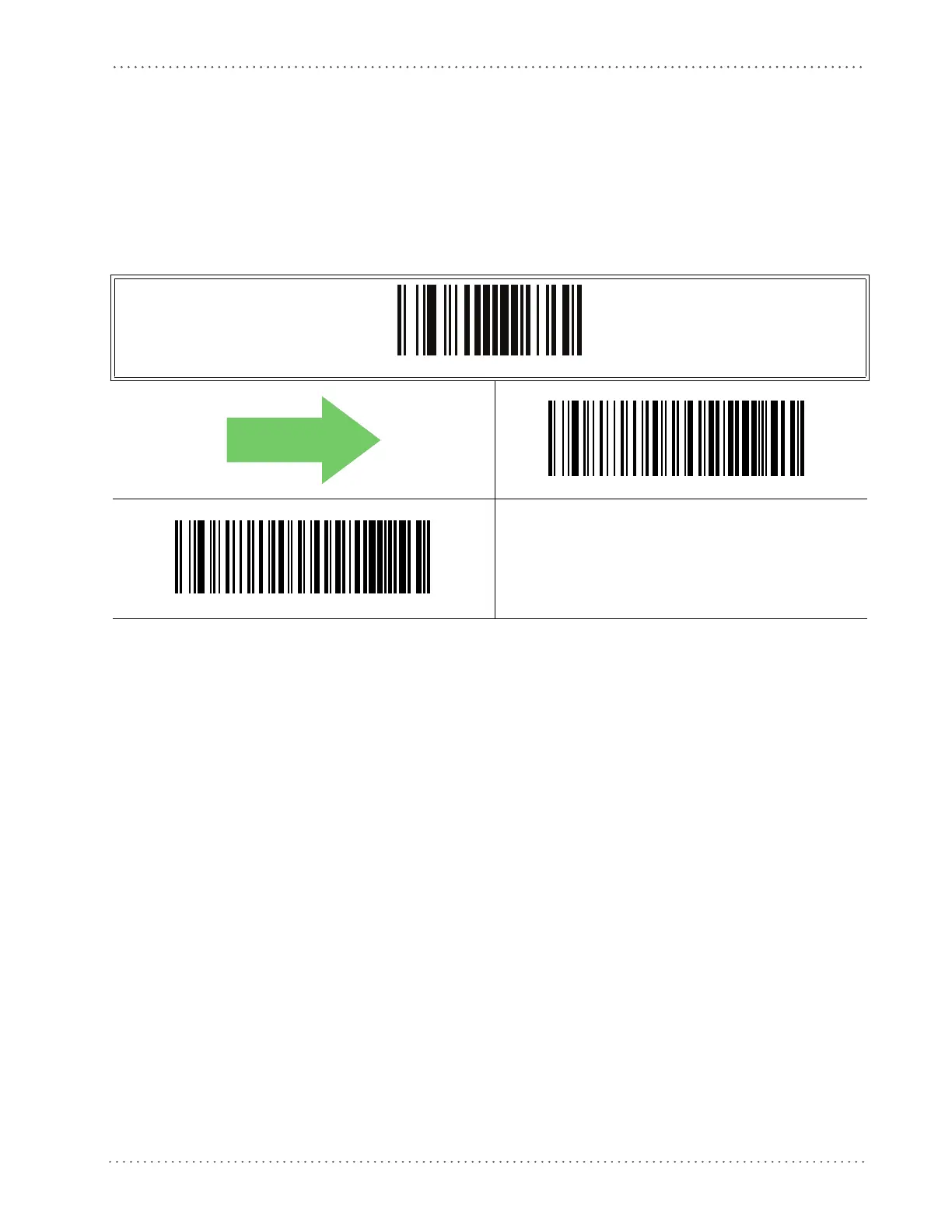

Product Reference Guide 265

Follett 2 of 5

The following options apply to the Follett 2 of 5 symbology.

Follett 2 of 5 Enable/Disable

Enables/Disables ability of imager to decode Follett 2 of 5 labels.

ENTER/EXIT PROGRAMMING MODE

Follett 2 of 5 = Disable

Follett 2 of 5 = Enable

DEFAULT
