Symbologies

372 Gryphon™ I GD4100/GM4100

Code 4

The following options apply to the Code 4 symbology.

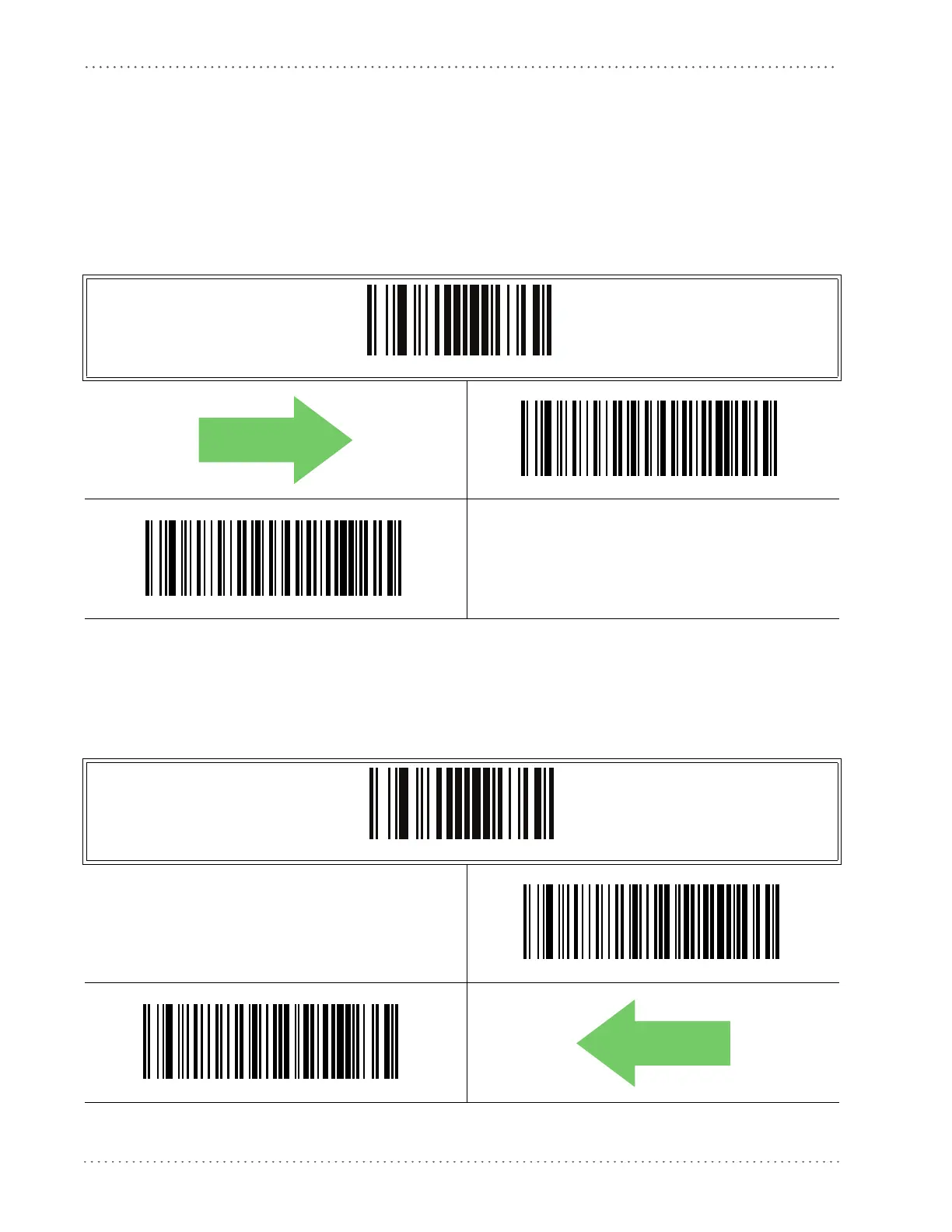

Code 4 Enable/Disable

Enables/Disables ability of imager to decode Code 4 labels.

ENTER/EXIT PROGRAMMING MODE

Code 4 = Disable

Code 4 = Enable

Code 4 Check Character Transmission

This feature enables/disables transmission of an optional Code 4 check character.

ENTER/EXIT PROGRAMMING MODE

Code 4 Check Character Transmission = Don’t Send

Code 4 Check Character Transmission = Send

DEFAULT

Default Chapter3
