Symbologies

266 Gryphon™ I GD4100/GM4100

Interleaved 2 of 5 CIP HR

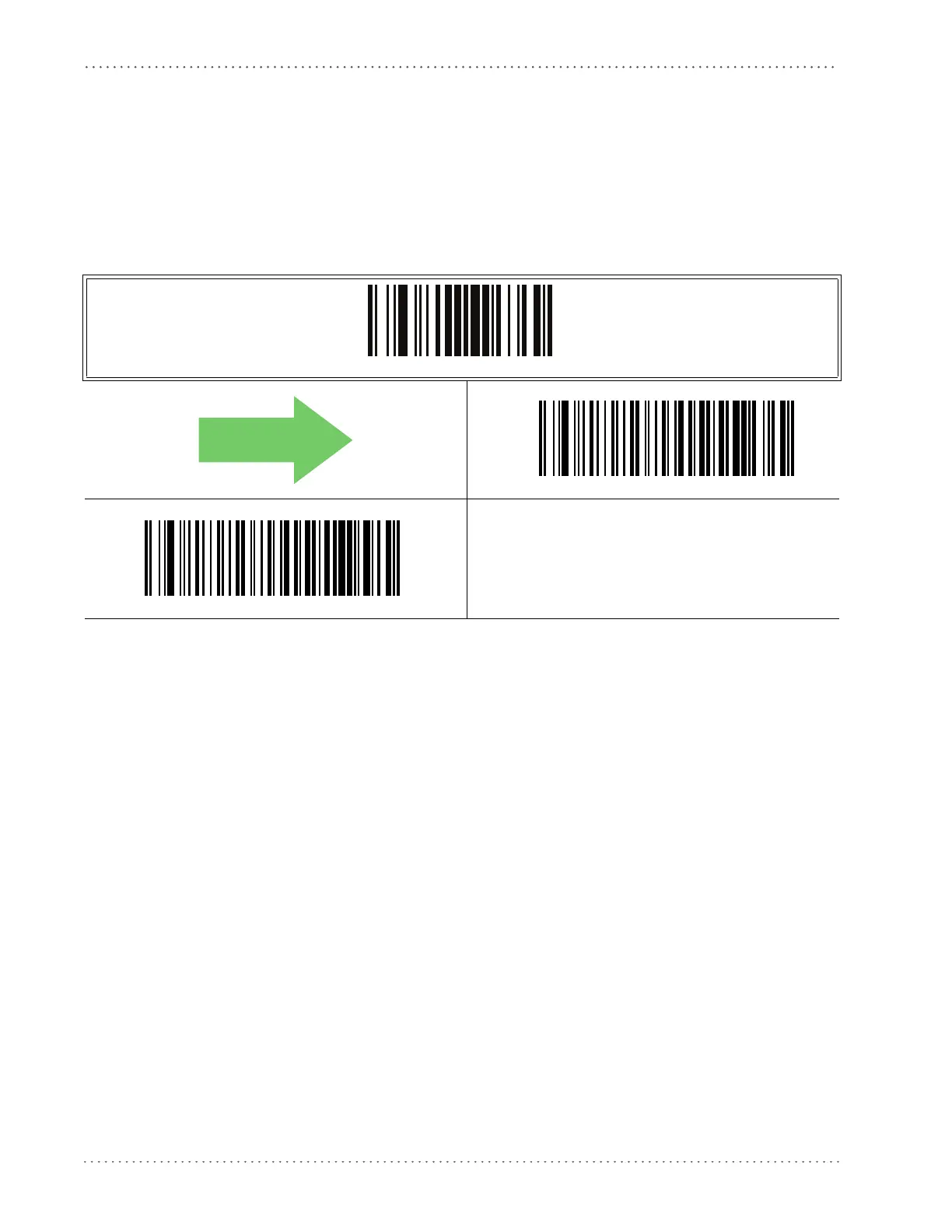

The following options apply to the Interleaved 2 of 5 CIP HR symbology.

Interleaved 2 of 5 CIP HR Enable/Disable

Enables/Disables ability of reader to decode Interleaved 2 of 5 CIP HR labels.

ENTER/EXIT PROGRAMMING MODE

Interleaved 2 of 5 CIP HR = Disable

Interleaved 2 of 5 CIP HR = Enable

DEFAULT

Default Chapter3
