Technical Specifications
386 Gryphon™ I GD4100/GM4100
Standard Cable Pinouts
Figure 20 and Table 48 provide standard pinout information for the Base Station’s interface
cable.

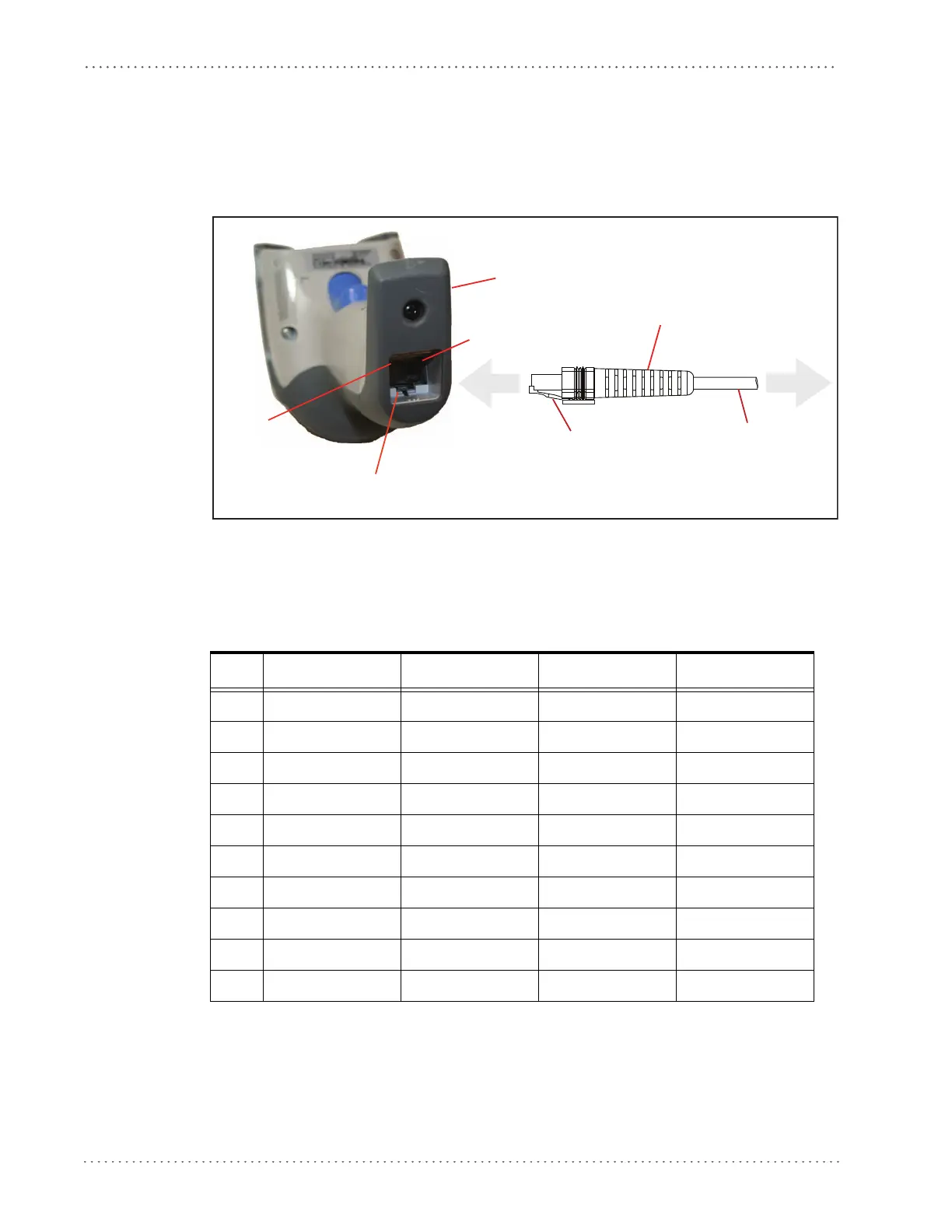

Figure 20. Standard Cable Pinouts
Pin 10
Cable Clip (Latch)
To Host
Cable
Cable Strain Relief
Bottom of Scanner
Interface Cable Port
Pin 1
The signal descriptions in Table 48 apply to the connector on the reader and are for reference
only.
Table 48.
Standard Cable Pinouts — Reader Side
Pin RS-232 OEM USB Keyboard Wedge
1 RTS (out)
2 D+ CLKIN (KBD side)
3D-DATAIN (KBD side)
4 GND GND GND GND
5RX
6TX
7VCC VCC VCC VCC
8 IBM_B CLKOUT (PC side)
9 IBM_A DATAOUT (PC side)
10 CTS (in)
