Code 39

Product Reference Guide 213

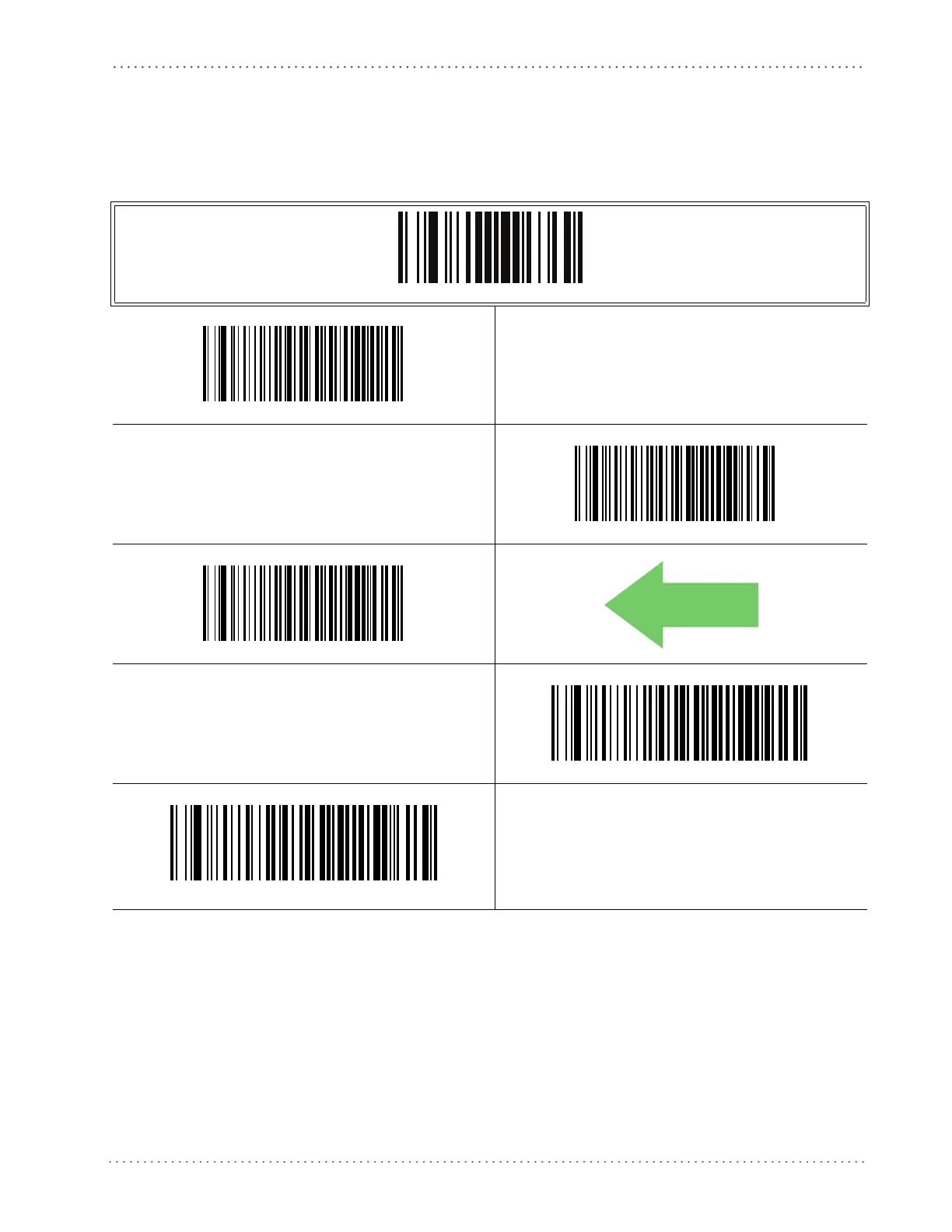

Code 39 Quiet Zones

This feature specifies the number of quiet zones for Code 39 labels. Quiet zones are blank areas

at the ends of a barcode and are typically 10 times the width of the narrowest bar or space in the

label.

ENTER/EXIT PROGRAMMING MODE

Code 39 Quiet Zones = Quiet Zone on one side

Code 39 Quiet Zones = Quiet Zones on two sides

Code 39 Quiet Zones = Auto

Code 39 Quiet Zones = Virtual Quiet Zones on two sides

Code 39 Quiet Zones = Small Quiet Zones on two sides

DEFAULT
